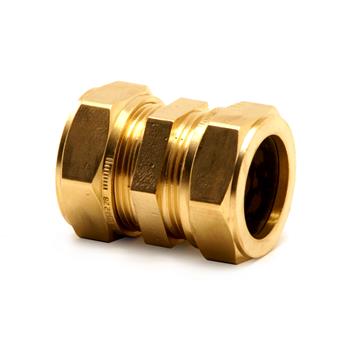

Kuterlite Straight Coupling

group: K610

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

approvals

BSI Kitemark

BSI Kitemark

KIWA

KIWA

item number

size

d1

DN1

d2

DN2

item number

41013K

size

6

d1

6.0

DN1

DN4

d2

6.0

DN2

DN4

item number

61017K

size

15

d1

DN1

d2

DN2

item number

41014K

size

8

d1

8.0

DN1

DN6

d2

8.0

DN2

DN6

item number

61019K

size

22

d1

DN1

d2

DN2

item number

41025K

size

8x6

d1

DN1

d2

DN2

item number

41015K

size

10

d1

DN1

d2

DN2

item number

41026K

size

10x8

d1

DN1

d2

DN2

item number

61022K

size

15x10

d1

DN1

d2

DN2

item number

61029K

size

22x15

d1

DN1

d2

DN2

item number

61020K

size

28

d1

DN1

d2

DN2

item number

61030K

size

28x15

d1

DN1

d2

DN2

item number

61031K

size

28x22

d1

DN1

d2

DN2

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

straight

connection type

compression

sealing

Brass, Metal sealing

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

Kuterlite K600

product type

K610

scip

8959546f-c4a2-4234-89bb-61813ff739d7

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Brass

label

Material quality connection 2

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Straight

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Compression ring

label

Connection 2

value

Compression ring

label

Main colour fitting

value

Brass

label

With buffer stud

value

No

label

Medium temperature (continuous)

value

30°C - 90°C

label

Medium temperature (continuous) (imperial)

value

86°F - 194°F

label

With thermal insulation

value

No

label

Capped

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
