Double check valve

group: K4426

The Kuterlite K4426 is a double check valve with 2 parallel threaded female ends. By using Kuterlite in your piping system you can install in easy to use heat free system. Kuterlite provides a piping system suitable for broad spectrum of applications across the domestic and commercial sectors,
  • No need for use of naked flames
  • Can be used on wet pipework
  • Joints can be dismounted without adversely affecting performance
  • Provided with all relevant approvals
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    potable water

    potable water

    heating

    heating

    cooling

    cooling

    segments

    commercial building

    commercial building

    industry

    industry

    approvals

    WRAS

    WRAS

    item number

    size

    d1

    DN1

    l1

    z1

    slw1

    d2

    DN2

    l2

    z2

    slw2

    V

    U

    a

    item number

    42071

    size

    G1/2" (DN15)

    d1

    29.0

    DN1

    DN15

    l1

    40

    z1

    30

    slw1

    25

    d2

    29.0

    DN2

    DN15

    l2

    40

    z2

    30

    slw2

    25

    V

    17

    U

    17

    a

    90

    item number

    42072

    size

    G3/4" (DN20)

    d1

    36.0

    DN1

    DN20

    l1

    46

    z1

    37

    slw1

    31

    d2

    36.0

    DN2

    DN20

    l2

    46

    z2

    37

    slw2

    31

    V

    20

    U

    18

    a

    90

    item number

    42073

    size

    G1" (DN25)

    d1

    45.0

    DN1

    DN25

    l1

    53

    z1

    40

    slw1

    39

    d2

    45.0

    DN2

    DN25

    l2

    53

    z2

    40

    slw2

    39

    V

    24

    U

    19

    a

    90

    item number

    42074

    size

    G1 1/4" (DN32)

    d1

    54.0

    DN1

    DN32

    l1

    64

    z1

    48

    slw1

    47

    d2

    54.0

    DN2

    DN32

    l2

    64

    z2

    48

    slw2

    47

    V

    28

    U

    20

    a

    90

    item number

    42075

    size

    G1 1/2" (DN40)

    d1

    60.0

    DN1

    DN40

    l1

    75

    z1

    58

    slw1

    52

    d2

    60.0

    DN2

    DN40

    l2

    75

    z2

    58

    slw2

    52

    V

    32

    U

    18

    a

    90

    item number

    42076

    size

    G2" (DN50)

    d1

    76.0

    DN1

    DN50

    l1

    100

    z1

    78

    slw1

    66

    d2

    76.0

    DN2

    DN50

    l2

    100

    z2

    78

    slw2

    66

    V

    37

    U

    19

    a

    90

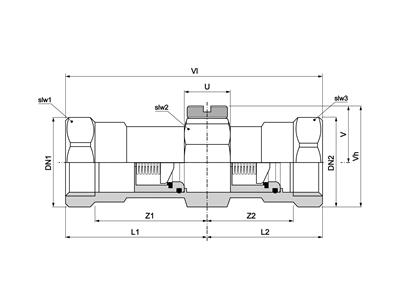

    technical drawing for product

    characteristics

    color

    brass

    materials

    brass (CW511L (lead-free))

    finishing

    none

    shape

    straight (0º)

    connection type

    G - female thread gas cylindrical (BSPP)

    pressure rating (PN)

    PN 10

    sealing

    EPDM

    general

    product group

    valves (check valves)

    ETIM class

    EC011469 Check valve

    HS code

    84813099

    brand

    VSH

    series

    Kuterlite Check Valve

    product type

    K4426

    UNSPS

    40141622

    technical

    max operating pressure liquid

    10 bar

    min. medium temperature

    -10 °C

    max medium temperature

    95 °C

    peak medium temperature

    95 °C

    Kv-value

    value depends on the item view items

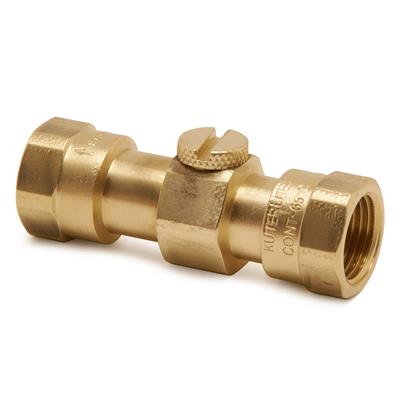

    image for K4426

    image | jpg

    K4426

    image for Diagram

    diagram | jpg

    Diagram

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Brass

    label

    Material quality

    value

    CuZn38As

    label

    Surface protection

    value

    Untreated

    label

    Connections

    value

    Internal thread cylindrical BSPP-G (ISO 228-1)

    label

    Article compression class

    value

    PN 10

    label

    Flange compression class

    value

    PN 10

    label

    Sealing

    value

    Ethylene-propylene diene monomer rubber (EPDM)

    label

    Angle of non-return valve

    value

    label

    Medium temperature (continuous)

    value

    -10°C - 65°C

    label

    Medium temperature (continuous) (imperial)

    value

    14°F - 149°F

    label

    Max. operating pressure at 20 °C

    value

    10bar

    label

    Max. operating pressure at 20 °C (imperial)

    value

    145.04psi

    label

    FM quality mark

    value

    No

    label

    UL quality mark

    value

    No

    label

    ULC quality mark

    value

    No

    label

    LPCB quality mark

    value

    No

    label

    Suitable for central heating water

    value

    Yes

    label

    Certified according to SVGW for water

    value

    No

    label

    Certified according to SVGW for gas

    value

    No

    label

    VdS quality mark

    value

    No

    label

    DVGW quality mark for gas

    value

    No

    label

    DVGW quality mark for water

    value

    No

    label

    KIWA certified

    value

    No

    item number

    carbon footprint (A-C) embodied carbon

    data source

    item number

    42071

    carbon footprint (A-C) embodied carbon

    0.69kgCO2e

    data source

    TM65

    item number

    42072

    carbon footprint (A-C) embodied carbon

    1.08kgCO2e

    data source

    TM65

    item number

    42073

    carbon footprint (A-C) embodied carbon

    1.9kgCO2e

    data source

    TM65

    item number

    42074

    carbon footprint (A-C) embodied carbon

    2.74kgCO2e

    data source

    TM65

    item number

    42075

    carbon footprint (A-C) embodied carbon

    3.85kgCO2e

    data source

    TM65

    item number

    42076

    carbon footprint (A-C) embodied carbon

    7.56kgCO2e

    data source

    TM65
