Kuterlite Straight Coupling

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

no applications available

segments

no segments available

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

68033

size

3/8"x15"

dimensions

25x29x46 mm

weight

0.1 kg

packaging

-

gtin

05022050249418

item number

size

item number

68033

size

3/8"x15"

technical drawing for product

characteristics

color

brass

materials

brass (CW602N (DZR))

sealing

Brass

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

Kuterlite K600

product type

K1710KP

UNSPS

40172601

scip

8959546f-c4a2-4234-89bb-61813ff739d7

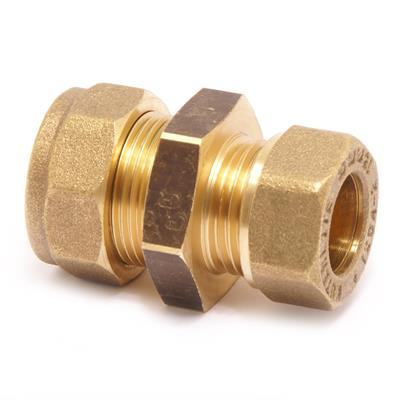

image for K1710KP

image | jpg

K1710KP

certifications | pdf

Pegler Kuterlite 600 NSF

link to sheet | pdf

SDS Kuterlite

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn36Pb2As (CW602N)

label

Material connection 2

value

Brass

label

Material quality connection 2

value

CuZn36Pb2As (CW602N)

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Main colour fitting

value

Brass

label

Material sealing

value

Brass

label

Length

value

25mm

label

Capped

value

No

label

With drain valve

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

68033

carbon footprint (A-C) embodied carbon

0.46kgCO2e

data source

TM65
