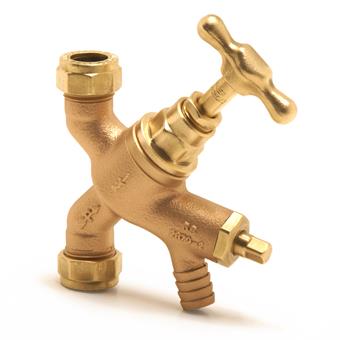

Product Image for VSH Prestex stop valve with crutch top and draincock

Product Image for VSH Prestex stop valve with crutch top and draincock

group: GM69

The Prestex GM69 is a crutch top stop valve with a draincock and 2 copper compression ends. By using Prestex in your piping system you can install in easy to use heat free system. Prestex provides a piping suitable for domestic and light commercial applications.

No need for use of naked flames

Can be used on wet pipework

Joints can be dismounted without adversely affecting performance

Provided with all relevant approvals

read more

read less

if the download did not start automatically, click here

PDF generation failed, please try again later

potable water

heating

show all

show less

commercial building

show all

show less

no approvals available

code

size

dimensions

weight

packaging

gtin

code

size

15

dimensions

100x30x120 mm

weight

0.51 kg

packaging

unpackaged (1 pce)

gtin

05013866015960

product info

item

VSH Prestex stop valve with crutch top and draincock

item number with gtin

GM69 (05013866015960)

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

size

15

weight

0.51 kg

dimensions

100x30x120 mm

characteristics

color

bronze

materials

bronze (EN CC499K)

finishing

none

shape

straight

connection type

compression

pressure rating (PN)

PN 16

sealing

EPDM

technical

max operating pressure liquid

16 bar

min. medium temperature

30 °C

max medium temperature

120 °C

peak medium temperature

120 °C

general

product group

afsluiters

HS code

84818099

brand

VSH

series

Prestex Stop Valve

product type

GM69

UNSPS

40141613

image for GM69

image | jpg

GM69

certifications | pdf

Pegler Stop valves BSI Kitemark

certifications | pdf

TM65 Embodied Carbon Declaration

code

carbon footprint (A-C) embodied carbon

data source

code

carbon footprint (A-C) embodied carbon

2.59kgCO2e

data source

TM65
