Pegler Differential Pressure Valve

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

segments

commercial building

commercial building

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

678022

size

Rp3/4"xG3/4"

dimensions

145x60x85 mm

weight

0.58 kg

packaging

unpackaged (1 pce)

gtin

05013866048807

item number

678023

size

Rp1"xG1"

dimensions

140x65x85 mm

weight

0.87 kg

packaging

unpackaged (1 pce)

gtin

05013866048814

item number

678024

size

Rp1 1/4"xG1 1/4"

dimensions

160x65x95 mm

weight

1.1 kg

packaging

box (1 pce)

gtin

05013866048821

characteristics

color

brass

materials

brass (CW617N)

finishing

none

shape

Elbow (90º)

connection type

Rp - female thread cylindrical (BSPT), G - male thread gas cylindrical (BSPP)

sealing

EPDM

general

product group

radiator valves

ETIM class

EC011490 Pressure difference overflow controller

HS code

84818099

brand

Pegler

series

Differential Pressure Valve

product type

DPV

UNSPS

41112404

technical

max operating pressure liquid

6 bar

min. medium temperature

1 °C

max medium temperature

100 °C

peak medium temperature

100 °C

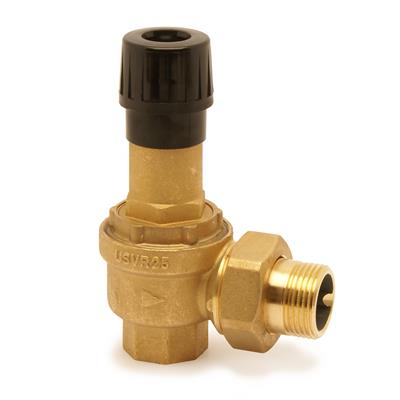

image for USV22

image | jpg

USV22

label

value

label

Connection 1

value

Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)

label

With coupling connection 1

value

No

label

Connection 2

value

External thread cylindrical BSPP-G (ISO 228-1)

label

With coupling connection 2

value

No

label

Article compression class

value

PN 6

label

Flange compression class

value

PN 6

label

Surface protection

value

Untreated
