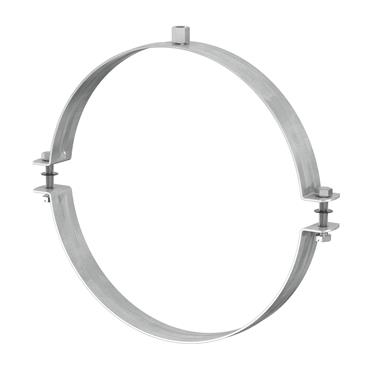

CK clip

Product Image for CK clip
Product Image for CK clip
Product Image for CK clip
Product Image for CK clip
Product Image for CK clip
  • Navigation item for CK clip
  • Navigation item for CK clip
  • Navigation item for CK clip
  • Navigation item for CK clip
  • Navigation item for CK clip

group: CK

For mounting insulated pipework to wall and ceiling.
  • CK 0 - 15: Suited with a quick-locking system and special retaining Phillips head screws.
  • CK 16 - 18: Fitted with retaining rings to prevent loss of the Phillips head screws.
  • CK 19 - 26: Fitted with hex nuts and bolts for high loads.
    • read more
