VSH PowerPress grooved connector (press x groove)

group: C9448

VSH PowerPress® C9448 is a connector which connects VSH PowerPress® with grooved couplings such as VSH Shurjoint. By using VSH PowerPress® system installation times are reduced significantly and a clean working environment is assured. The range consists of DW-profile press fittings and valves in sizes ½" up to and including 2".

  • outstanding corrosion resistance due to ZnNi coating
  • clear identification of materials and dimensions
  • Visu-Control-ring and Leak Before Pressed-function
  • ideal to combine with VSH Shurjoint
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

compressed air

compressed air

sprinkler

sprinkler

segments

fire protection

fire protection

commercial building

commercial building

industry

industry

approvals

FM

FM

QB (CSTBat)

QB (CSTBat)

item number

size

d1

DN1

l1

z1

d2

DN2

l2

item number

PWR9401095

size

1"x33.7

d1

33.7

DN1

DN25

l1

45

z1

9

d2

33.7

DN2

DN25

l2

24

item number

PWR9401106

size

1 1/4"x42.4

d1

42.4

DN1

DN32

l1

58

z1

10

d2

42.4

DN2

DN32

l2

24

item number

PWR9401117

size

1 1/2"x48.3

d1

48.3

DN1

DN40

l1

58

z1

9

d2

48.3

DN2

DN40

l2

24

item number

PWR9401128

size

2"x60.3

d1

60.3

DN1

DN50

l1

63

z1

10

d2

60.3

DN2

DN50

l2

24

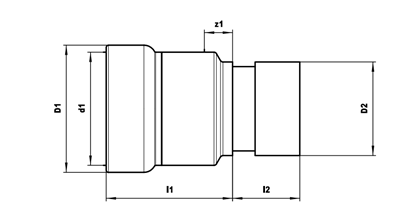

technical drawing for product

characteristics

color

grey

materials

steel (St 35 (1.0308))

finishing

zinc-nickel plated

shape

straight

connection type

press (DW), groove (fitting)

sealing

EPDM

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

73079980

brand

VSH

series

PowerPress

product type

C9448

UNSPS

40172502

scip

2dc8f2fc-98c9-4447-b557-184ada83b520

technical

max operating pressure liquid

16 bar

min. medium temperature

-40 °C

max medium temperature

135 °C

peak medium temperature

150 °C

Zeta value

value depends on the item view items

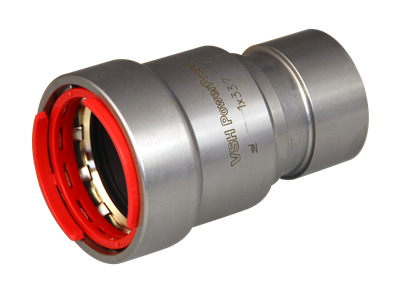

image for C9448

image | png

C9448

image for Diagram

diagram | png

Diagram

CAD | zip

VSH PowerPress 2D CAD dxf

CAD | zip

VSH PowerPress 3D CAD IGES

CAD | zip

VSH PowerPress 3D CAD Step

installation- & maintenance document | pdf

VSH PowerPress installation instructions

link to sheet | pdf

210628_MSDS_VSH_PowerPress_EN

certifications | pdf

EPD VSH PowerPress

certifications | pdf

VSH PowerPress CSTB

certifications | pdf

VSH PowerPress FM

label

value

label

Material connection 1

value

Steel

label

Material quality connection 1

value

St 35 (1.0308)

label

Surface protection connection 1

value

Zinc/nickel

label

Material connection 2

value

Steel

label

Material quality connection 2

value

St 35 (1.0308)

label

Surface protection connection 2

value

Zinc/nickel

label

Shape

value

Straight

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Press sleeve

label

Contour code connection 1

value

DW

label

Connection 2

value

Groove

label

Main colour fitting

value

Grey

label

Flange compression class (PN)

value

PN 16

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

Yes

label

High tensile strength

value

Yes

label

Length of connection 2

value

23.9mm

label

Length of connection 2 (imperial)

value

0.94"

label

Medium temperature (continuous)

value

-40°C - 135°C

label

Medium temperature (continuous) (imperial)

value

-40°F - 275°F

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

Yes

label

With connection indicator

value

Yes

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

Yes

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A1-A3) cradle-to-gate

carbon footprint (A-C) embodied carbon

carbon footprint (A-D) cradle-to-cradle

data source

item number

PWR9401095

carbon footprint (A1-A3) cradle-to-gate

0.57kgCO2e

carbon footprint (A-C) embodied carbon

0.59kgCO2e

carbon footprint (A-D) cradle-to-cradle

0.39kgCO2e

data source

EPD

item number

PWR9401106

carbon footprint (A1-A3) cradle-to-gate

0.96kgCO2e

carbon footprint (A-C) embodied carbon

1kgCO2e

carbon footprint (A-D) cradle-to-cradle

0.65kgCO2e

data source

EPD

item number

PWR9401117

carbon footprint (A1-A3) cradle-to-gate

1.08kgCO2e

carbon footprint (A-C) embodied carbon

1.12kgCO2e

carbon footprint (A-D) cradle-to-cradle

0.73kgCO2e

data source

EPD

item number

PWR9401128

carbon footprint (A1-A3) cradle-to-gate

1.43kgCO2e

carbon footprint (A-C) embodied carbon

1.49kgCO2e

carbon footprint (A-D) cradle-to-cradle

0.97kgCO2e

data source

EPD
