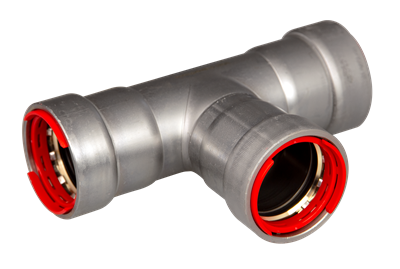

VSH PowerPress T-piece (3 x press)

group: C9414

VSH PowerPress® C9414 is a T-piece designed for thick wall steel pipe. By using VSH PowerPress® system installation times are reduced significantly and a clean working environment is assured. The range consists of DW-profile press fittings and valves in sizes ½" up to and including 2".

  • outstanding corrosion resistance due to ZnNi coating
  • clear identification of materials and dimensions
  • Visu-Control-ring and Leak Before Pressed-function
  • ideal to combine with VSH XPress, VSH SudoPress and VSH Shurjoint;
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

compressed air

compressed air

sprinkler

sprinkler

segments

fire protection

fire protection

commercial building

commercial building

industry

industry

approvals

FM

FM

QB (CSTBat)

QB (CSTBat)

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

d3

DN3

l3

z3

item number

PWR9400248

size

1/2"

d1

21.3

DN1

DN15

l1

52

z1

24

d2

21.3

DN2

DN15

l2

53

z2

25

d3

21.3

DN3

DN15

l3

52

z3

24

item number

PWR9400259

size

3/4"

d1

26.9

DN1

DN20

l1

57

z1

26

d2

26.9

DN2

DN20

l2

59

z2

28

d3

26.9

DN3

DN20

l3

57

z3

26

item number

PWR9400261

size

1"

d1

33.7

DN1

DN25

l1

66

z1

30

d2

33.7

DN2

DN25

l2

68

z2

32

d3

33.7

DN3

DN25

l3

66

z3

30

item number

PWR9400270

size

1 1/4"

d1

42.4

DN1

DN32

l1

82

z1

34

d2

42.4

DN2

DN32

l2

85

z2

37

d3

42.4

DN3

DN32

l3

82

z3

34

item number

PWR9400281

size

1 1/2"

d1

48.3

DN1

DN40

l1

89

z1

40

d2

48.3

DN2

DN40

l2

89

z2

40

d3

48.3

DN3

DN40

l3

89

z3

40

item number

PWR9400292

size

2"

d1

60.3

DN1

DN50

l1

96

z1

43

d2

60.3

DN2

DN50

l2

100

z2

47

d3

60.3

DN3

DN50

l3

96

z3

43

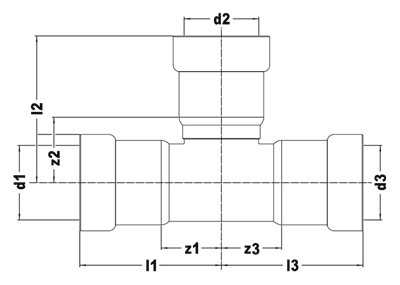

technical drawing for product

characteristics

color

grey

materials

steel (St 35 (1.0308))

finishing

zinc-nickel plated

shape

T-piece (90º)

connection type

press (DW), Press (DW)

sealing

EPDM

general

product group

fittings

ETIM class

EC003025 Fitting with 3 connections

HS code

73079980

brand

VSH

series

PowerPress

product type

C9414

UNSPS

40174602

technical

max operating pressure liquid

16 bar

min. medium temperature

-40 °C

max medium temperature

135 °C

peak medium temperature

150 °C

image for C9414

image | png

C9414

image for Diagram

diagram | png

Diagram

CAD | zip

VSH PowerPress 2D CAD dxf

CAD | zip

VSH PowerPress 3D CAD IGES

CAD | zip

VSH PowerPress 3D CAD Step

installation- & maintenance document | pdf

VSH PowerPress installation instructions

certifications | pdf

EPD VSH PowerPress

certifications | pdf

VSH PowerPress CSTB

certifications | pdf

VSH PowerPress FM

label

value

label

Material connection 1

value

Steel

label

Material quality connection 1

value

St 35 (1.0308)

label

Surface protection connection 1

value

Zinc/nickel

label

Material connection 2

value

Steel

label

Material quality connection 2

value

St 35 (1.0308)

label

Surface protection connection 2

value

Zinc/nickel

label

Material connection 3

value

Steel

label

Material quality connection 3

value

St 35 (1.0308)

label

Surface protection connection 3

value

Zinc/nickel

label

Model

value

T-piece

label

Angle

value

90°

label

Swept entry type (with inner radius)

value

No

label

Reducing

value

No

label

Multi-part

value

No

label

System specific

value

Yes

label

Connection 1

value

Press sleeve

label

Contour code connection 1

value

DW

label

Connection 2

value

Press sleeve

label

Contour code connection 2

value

DW

label

Connection 3

value

Press sleeve

label

Contour code connection 3

value

DW

label

Flange compression class

value

PN 16

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

Main colour fitting

value

Grey

label

High tensile strength

value

Yes

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

Medium temperature (continuous)

value

-40°C - 135°C

label

Medium temperature (continuous) (imperial)

value

-40°F - 275°F

label

With sealing rings/gaskets

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

With thermal insulation

value

No

label

With buffer stud

value

Yes

label

Capped

value

Yes

label

With connection indicator

value

Yes

label

FM quality mark

value

Yes

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A1-A3) cradle-to-gate

carbon footprint (A-C) embodied carbon

carbon footprint (A-D) cradle-to-cradle

data source

item number

PWR9400248

carbon footprint (A1-A3) cradle-to-gate

0.74kgCO2e

carbon footprint (A-C) embodied carbon

0.77kgCO2e

carbon footprint (A-D) cradle-to-cradle

0.5kgCO2e

data source

EPD

item number

PWR9400259

carbon footprint (A1-A3) cradle-to-gate

0.97kgCO2e

carbon footprint (A-C) embodied carbon

1.01kgCO2e

carbon footprint (A-D) cradle-to-cradle

0.65kgCO2e

data source

EPD

item number

PWR9400261

carbon footprint (A1-A3) cradle-to-gate

1.48kgCO2e

carbon footprint (A-C) embodied carbon

1.54kgCO2e

carbon footprint (A-D) cradle-to-cradle

1kgCO2e

data source

EPD

item number

PWR9400270

carbon footprint (A1-A3) cradle-to-gate

2.27kgCO2e

carbon footprint (A-C) embodied carbon

2.35kgCO2e

carbon footprint (A-D) cradle-to-cradle

1.53kgCO2e

data source

EPD

item number

PWR9400281

carbon footprint (A1-A3) cradle-to-gate

3.03kgCO2e

carbon footprint (A-C) embodied carbon

3.15kgCO2e

carbon footprint (A-D) cradle-to-cradle

2.05kgCO2e

data source

EPD

item number

PWR9400292

carbon footprint (A1-A3) cradle-to-gate

4.11kgCO2e

carbon footprint (A-C) embodied carbon

4.27kgCO2e

carbon footprint (A-D) cradle-to-cradle

2.77kgCO2e

data source

EPD
