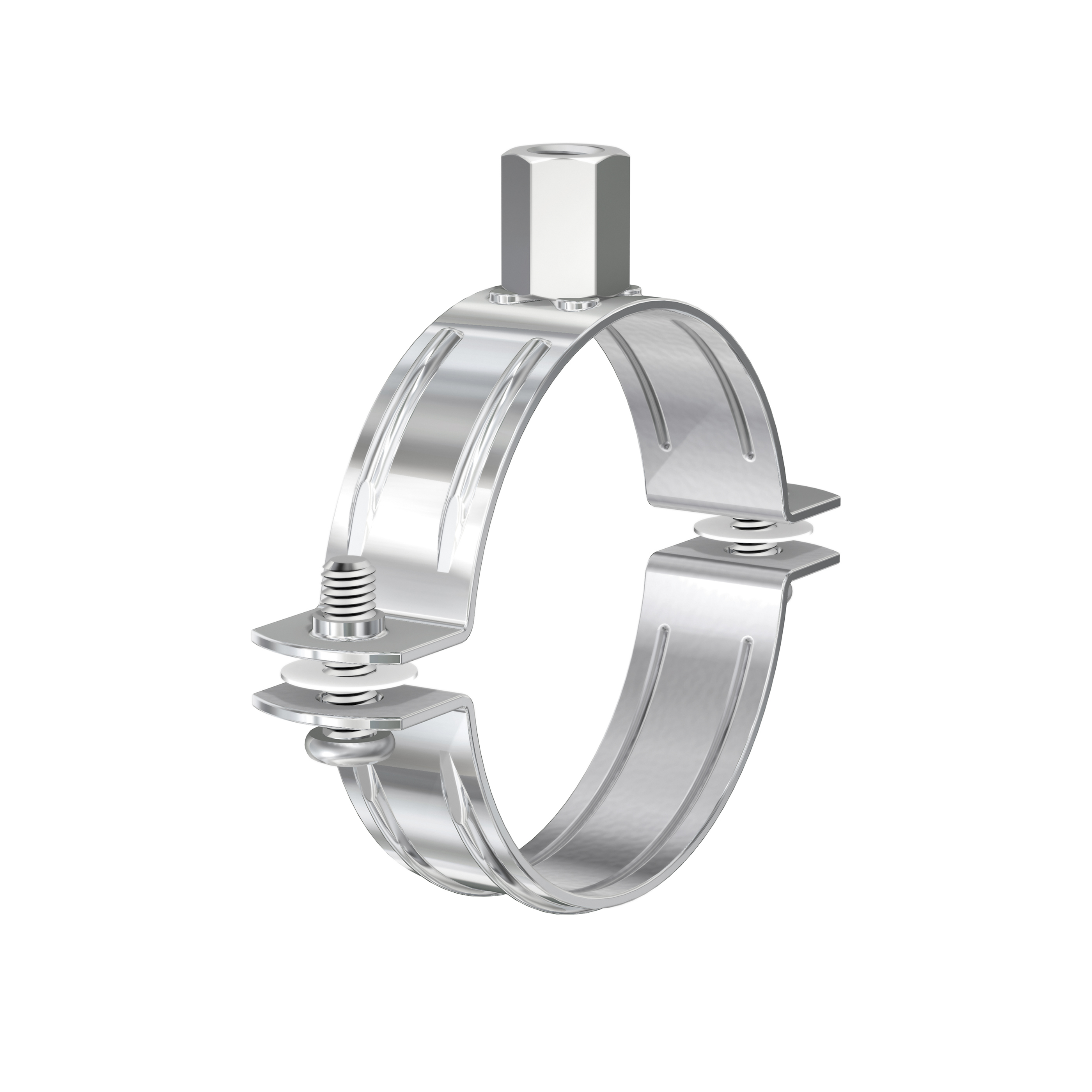

group: BSU
heating
cooling
residential
commercial building
industry
no approvals available
item number
size

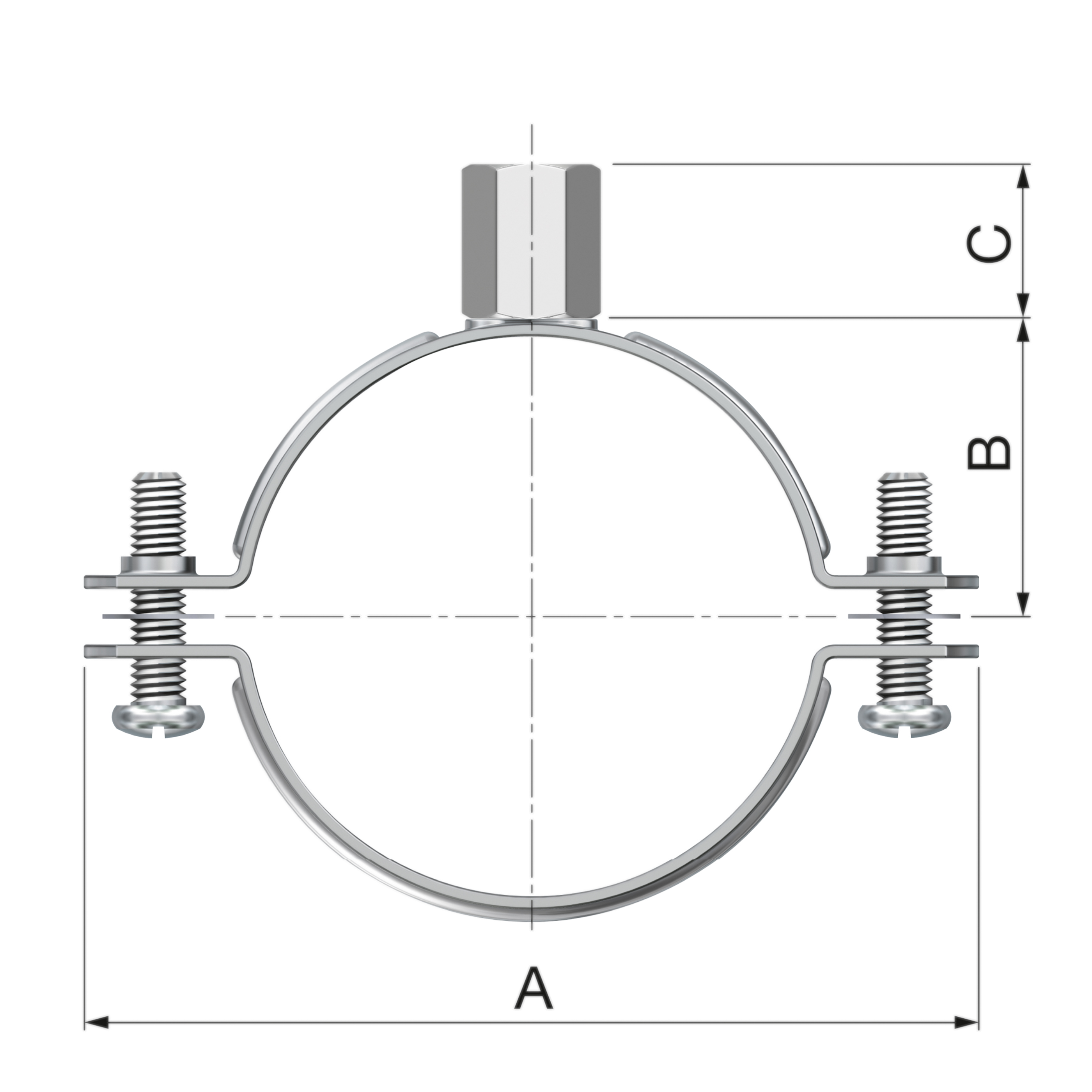

dimensions
weight
packaging
gtin
item number
size
M8-M10 x 15-19
dimensions
50x50x20 mm
weight
0.05 kg
packaging
carton (50 pce)
gtin
08719313012519
item number
size
M8-M10 x 20-25
dimensions
32x60x20 mm
weight
0.05 kg
packaging
carton (50 pce)
gtin
08719313012526
item number
size
M8-M10 x 26-30
dimensions
25x64x20 mm
weight
0.05 kg
packaging
carton (50 pce)
gtin
08719313012533
item number
size
M8-M10 x 32-36
dimensions
38x71x20 mm
weight
0.06 kg
packaging
carton (50 pce)
gtin
08719313012540
item number
size
M8-M10 x 38-43
dimensions
41x79x20 mm
weight
0.06 kg
packaging
carton (50 pce)
gtin
08719313012557
item number
size
M8-M10 x 44-49
dimensions
44x84x20 mm
weight
0.07 kg
packaging
carton (50 pce)
gtin
08719313012564
item number
size
M8-M10 x 56-61
dimensions
50x93x20 mm
weight
0.08 kg
packaging
carton (50 pce)
gtin
08719313012571
item number
size
M8-M10 x 62-67
dimensions
52x109x20 mm
weight
0.1 kg
packaging
carton (100 pce)
gtin
-
item number
size
M8-M10 x 75-80
dimensions
60x118x20 mm
weight
0.12 kg
packaging
carton (50 pce)
gtin
08719313012588
item number
size
M8-M10 x 87-92
dimensions
66x129x20 mm
weight
0.14 kg
packaging
carton (50 pce)
gtin
08719313012595
item number
size
M8-M10 x 108-116
dimensions
78x160x20 mm
weight
0.18 kg
packaging
carton (25 pce)
gtin
08719313012601
item number
size
M8-M10 x 121-127
dimensions
180x160x20 mm
weight
0.2 kg
packaging
carton (25 pce)
gtin
08719313012656
item number
size
M10-M12 x 131-141
dimensions
93x188x20 mm
weight
0.25 kg
packaging
carton (25 pce)
gtin
08719313012625
item number
size
DN1
materials
steel
finishing
galvanized (electrolytically zincplated)
product group
Fastening (double screw)
ETIM class
EC010049 Two-part bracket round
HS code
73089098
brand
IPS FlamcoFix
series
Fastening clips
product type
BSU
min. medium temperature
-40 °C
max medium temperature
250 °C
label
value
label
ETIM class
label
Material
value
Steel
label
Surface protection
value
Galvanic/electrolytic zinc plated
label
Inlay damping value
value
0dB(A)
label
Connection facility
value
Internal thread
label
Lock facility
value
Double screw
label
Suitable for number of pipes
value
1
label
Height
value
20mm
label
Height (imperial)
value
0.79"
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Suitable for steel tube
value
Yes
label
Suitable for stainless steel tube
value
No
label
Suitable for copper tube
value
No
label
Suitable for aluminium tube
value
No
label
Suitable for cast iron pipe
value
Yes
label
Suitable for plastic tube
value
Yes
label
Suitable for pipe coil
value
No
label
Medium temperature (continuous)
value
-40°C - 250°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 482°F
label
VdS quality mark
value
No
label
KIWA certified
value
No
