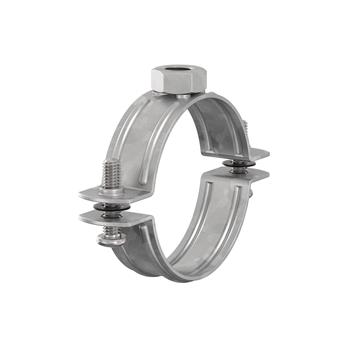

BSU clip HDG

Product Image for BSU clip HDG
Product Image for BSU clip HDG

group: BSU-HDG

Hot-dip galvanized universal clips for sustainable pipe fixing outdoors and in environments with demanding atmospheric conditions.
  • The thickness of the coating and its cathodic protection provide extensive protection against corrosion, even when the clip gets scratched.
  • Suitable for both horizontal and vertical fixing of pipes.
  • Fitted with retaining rings to prevent loss of bolts.
  • Reinforcement ribs for additional strength and maintenance of shape.
