group: BSL-A-8-10
air duct
residential
commercial building
industry
no approvals available
code
size
dimensions
weight
packaging
gtin
code
size
M8-M10x80
dimensions
112x128x20 mm
weight
0.14 kg
packaging
carton (25 pce)
gtin
08719313034214
code
size
M8-M10x100
dimensions
132x150x20 mm
weight
0.19 kg
packaging
carton (25 pce)
gtin
08719313017989
code
size
M8-M10x112
dimensions
144x170x20 mm
weight
0.17 kg
packaging
carton (25 pce)
gtin
08719313017996
code
size
M8-M10x125
dimensions
156x185x20 mm
weight
0.23 kg
packaging
carton (25 pce)
gtin
08719313018009
code
size
M8-M10x140
dimensions
165x190x20 mm
weight
0.27 kg
packaging
carton (25 pce)
gtin
08719313018016
code
size
M8-M10x150
dimensions
182x205x20 mm
weight
0.22 kg
packaging
carton (25 pce)
gtin
08719313034221
code
size
M8-M10x160
dimensions
192x215x20 mm
weight
0.28 kg
packaging
carton (25 pce)
gtin
08719313018030
code
size
M8-M10x180
dimensions
212x240x20 mm
weight
0.39 kg
packaging
carton (25 pce)
gtin
08719313018047
code
size
M8-M10x200
dimensions
232x265x20 mm
weight
0.35 kg
packaging
carton (25 pce)
gtin
08719313018054
code
size
M8-M10x224
dimensions
232x265x20 mm
weight
0.51 kg
packaging
carton (10 pce)
gtin
08719313018061
code
size
M8-M10x250
dimensions
282x303x20 mm
weight
0.53 kg
packaging
carton (10 pce)
gtin
08719313018078
code
size
M8-M10x280
dimensions
25x333x312 mm
weight
0.55 kg
packaging
carton (10 pce)
gtin
08719313018085
code
size
M8-M10x315
dimensions
348x368x20 mm
weight
0.41 kg
packaging
carton (10 pce)
gtin
08719313018108
code
size
M8-M10x355
dimensions
25x408x388 mm
weight
0.57 kg
packaging
carton (10 pce)
gtin
08719313018115
code
size
M8-M10x400
dimensions
432x453x20 mm
weight
0.63 kg
packaging
carton (10 pce)
gtin
08719313018122
code
size
DN1
item

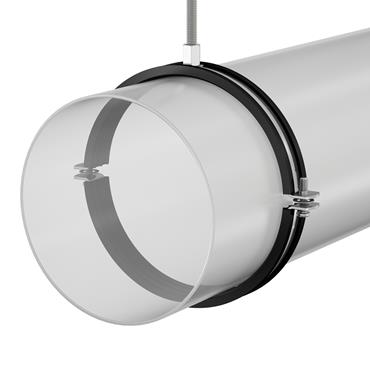

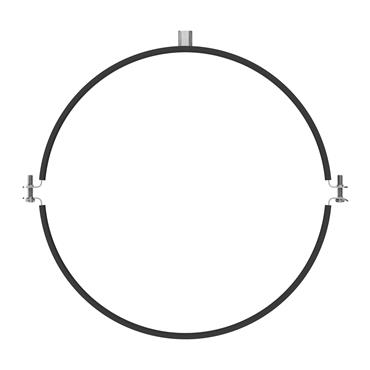

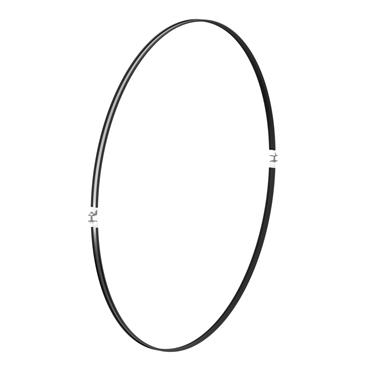

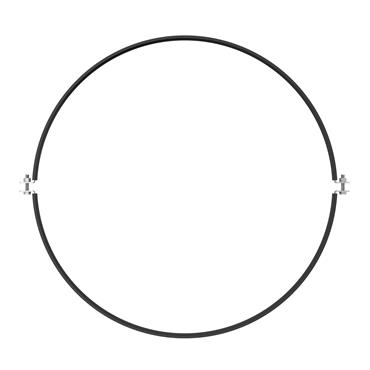

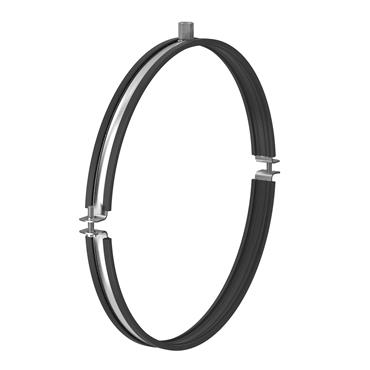

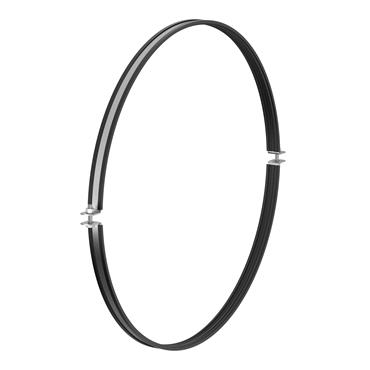

BSL-A air duct clip M8/M10 Ø 80-450
item number with gtin
BSL-A-8-10
manufacturer
Aalberts integrated piping systems B.V. (VSH)
weight
0.63 kg
dimensions
432x453x20 mm
materials
steel
finishing
sendzimir galvanised
min. medium temperature
-40 °C
max medium temperature
120 °C
product group
Fastening (double screw)
ETIM class
EC010049 Two-part bracket roundbrand
FastFix
series
clips - lined
product type
BSL-A-8-10
label
value
label
etim-class
label
Material
value
Steel
label
Surface protection
value
Sendzimir galvanised
label
Inlay damping value
value
17dB(A)
label
Permitted work load
value
850N
label
Connection facility
value
Internal thread
label
Connection size, connection facility
value
M8/M10
label
Lock facility
value
Double screw
label
Suitable for number of pipes
value
1
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Suitable for steel tube
value
No
label
Suitable for stainless steel tube
value
No
label
Suitable for copper tube
value
No
label
Suitable for aluminium tube
value
No
label
Suitable for cast iron pipe
value
No
label
Suitable for plastic tube
value
No
label
Suitable for pipe coil
value
Yes
label
Medium temperature (continuous)
value
-40°C - 120°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 248°F
label
VdS quality mark
value
No
label
KIWA certified
value
No
