group: BSI-8-10

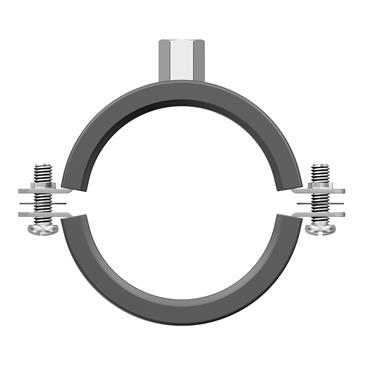

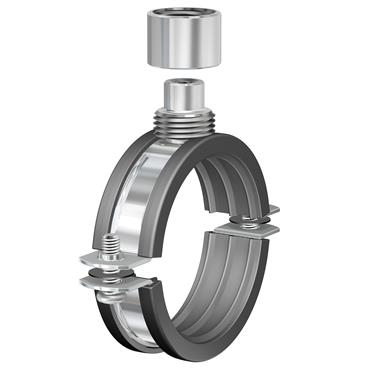

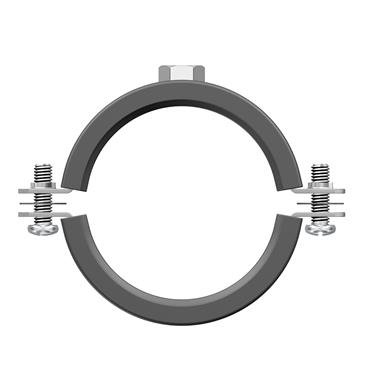

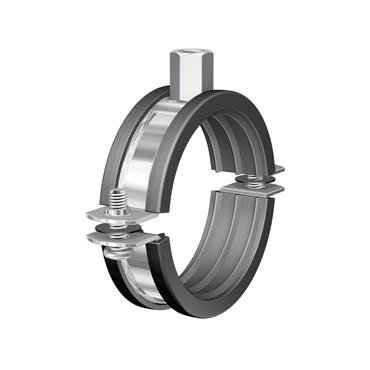

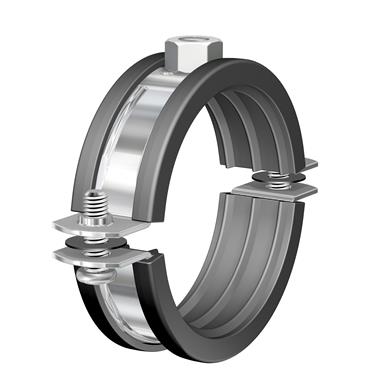

BSI clips are rubber lined universal clips for mounting pipes to the wall or ceiling.
  • Fitted with two bolts with anti-loss ring.
  • Bolt with slot and cross head.
  • Reinforcement grooves ensure that BSI clips maintain their shape.
  •  Noise suppressing rubber strip: 17 dB(A)* according to ISO 3822-1
(* To achieve good sound suppression do not overload the fitting).
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

potable water

potable water

show all
show less

segments

residential

residential

commercial building

commercial building

industry

industry

show all
show less

approvals

no approvals available

  • assortment
  • dimensions
  • specifications
  • downloads
  • ETIM
  • sustainability

code

size

dimensions

weight

packaging

gtin

code

10-39023

size

M8-M10 x 8-10

dimensions

32x53x20 mm

weight

0.05 kg

packaging

carton (50 pce)

gtin

08719313014896

code

10-39000

size

M8-M10 x 12-14

dimensions

46x58x20 mm

weight

0.06 kg

packaging

carton (50 pce)

gtin

08719313014674

code

10-39001

size

M8-M10 x 15-19

dimensions

52x62x20 mm

weight

0.06 kg

packaging

carton (50 pce)

gtin

08719313014681

code

10-39002

size

M8-M10 x 20-25

dimensions

58x69x20 mm

weight

0.07 kg

packaging

carton (50 pce)

gtin

08719313014698

code

10-39003

size

M8-M10 x 26-30

dimensions

62x74x20 mm

weight

0.07 kg

packaging

carton (50 pce)

gtin

08719313014704

code

10-39004

size

M8-M10 x 32-36

dimensions

68x81x20 mm

weight

0.09 kg

packaging

carton (50 pce)

gtin

08719313014711

code

10-39005

size

M8-M10 x 38-43

dimensions

76x87x20 mm

weight

0.09 kg

packaging

carton (50 pce)

gtin

08719313014728

code

10-39006

size

M8-M10 x 44-49

dimensions

82x94x20 mm

weight

0.1 kg

packaging

carton (50 pce)

gtin

08719313014735

code

10-39007

size

M8-M10 x 50-55

dimensions

88x103x20 mm

weight

0.1 kg

packaging

carton (50 pce)

gtin

08719313014742

code

10-39008

size

M8-M10 x 56-61

dimensions

94x106x20 mm

weight

0.11 kg

packaging

carton (50 pce)

gtin

08719313014759

code

10-39009

size

M8-M10 x 62-67

dimensions

100x113x20 mm

weight

0.14 kg

packaging

carton (50 pce)

gtin

08719313014766

code

10-39010

size

M8-M10 x 68-73

dimensions

106x123x20 mm

weight

0.16 kg

packaging

carton (50 pce)

gtin

08719313014773

code

10-39011

size

M8-M10 x 75-80

dimensions

112x128x20 mm

weight

0.16 kg

packaging

carton (50 pce)

gtin

08719313014780

code

10-39012

size

M8-M10 x 82-86

dimensions

118x134x20 mm

weight

0.17 kg

packaging

carton (50 pce)

gtin

08719313014797

code

10-39013

size

M8-M10 x 87-92

dimensions

124x141x20 mm

weight

0.18 kg

packaging

carton (50 pce)

gtin

08719313014803

code

10-39014

size

M8-M10 x 95-102

dimensions

132x158x20 mm

weight

0.23 kg

packaging

carton (50 pce)

gtin

08719313014810

code

10-39015

size

M8-M10 x 108-116

dimensions

146x170x20 mm

weight

0.24 kg

packaging

carton (25 pce)

gtin

08719313014827

code

10-39016

size

M8-M10 x 121-127

dimensions

156x185x20 mm

weight

0.27 kg

packaging

carton (25 pce)

gtin

08719313014834

code

10-39017

size

M8-M10 x 131-141

dimensions

170x195x20 mm

weight

0.29 kg

packaging

carton (25 pce)

gtin

08719313014841

code

10-39018

size

M8-M10 x 159-163

dimensions

380x215x300 mm

weight

0.33 kg

packaging

carton (25 pce)

gtin

08719313014858

code

10-39019

size

M8-M10 x 165-168

dimensions

198x226x20 mm

weight

0.34 kg

packaging

carton (25 pce)

gtin

08719313014865

code

10-39020

size

M8-M10 x 192-202

dimensions

230x265x20 mm

weight

0.42 kg

packaging

carton (25 pce)

gtin

08719313014872

code

10-39022

size

M8-M10 x 210-220

dimensions

250x274x20 mm

weight

0.45 kg

packaging

carton (25 pce)

gtin

08719313014889

code

size

DN1

z3

code

10-39023

size

M8-M10 x 8-10

DN1

M8/M10

z3

27

code

10-39000

size

M8-M10 x 12-14

DN1

M8/M10

z3

29

code

10-39001

size

M8-M10 x 15-19

DN1

M8/M10

z3

32

code

10-39002

size

M8-M10 x 20-25

DN1

M8/M10

z3

35

code

10-39003

size

M8-M10 x 26-30

DN1

M8/M10

z3

37

code

10-39004

size

M8-M10 x 32-36

DN1

M8/M10

z3

40

code

10-39005

size

M8-M10 x 38-43

DN1

M8/M10

z3

44

code

10-39006

size

M8-M10 x 44-49

DN1

M8/M10

z3

47

code

10-39007

size

M8-M10 x 50-55

DN1

M8/M10

z3

50

code

10-39008

size

M8-M10 x 56-61

DN1

M8/M10

z3

53

code

10-39009

size

M8-M10 x 62-67

DN1

M8/M10

z3

56

code

10-39010

size

M8-M10 x 68-73

DN1

M8/M10

z3

59

code

10-39011

size

M8-M10 x 75-80

DN1

M8/M10

z3

63

code

10-39012

size

M8-M10 x 82-86

DN1

M8/M10

z3

66

code

10-39013

size

M8-M10 x 87-92

DN1

M8/M10

z3

69

code

10-39014

size

M8-M10 x 95-102

DN1

M8/M10

z3

74

code

10-39015

size

M8-M10 x 108-116

DN1

M8/M10

z3

81

code

10-39016

size

M8-M10 x 121-127

DN1

M8/M10

z3

87

code

10-39017

size

M8-M10 x 131-141

DN1

M8/M10

z3

94

code

10-39018

size

M8-M10 x 159-163

DN1

M8/M10

z3

105

code

10-39019

size

M8-M10 x 165-168

DN1

M8/M10

z3

108

code

10-39020

size

M8-M10 x 192-202

DN1

M8/M10

z3

125

code

10-39022

size

M8-M10 x 210-220

DN1

M8/M10

z3

134

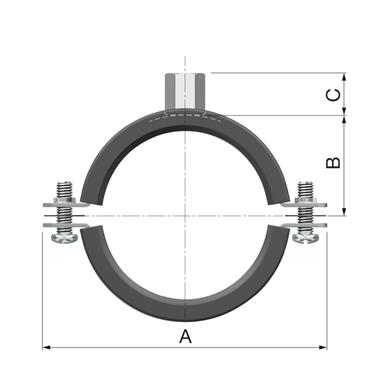

technical drawing for product

product info

item

BSI clip M8-M10

item number with gtin

BSI-8-10

manufacturer

Aalberts integrated piping systems B.V. (VSH)

weight

0.45 kg

dimensions

250x274x20 mm

characteristics

materials

steel

finishing

galvanized (electrolytically zincplated)

technical

min. medium temperature

-40 °C

max medium temperature

120 °C

general

product group

bevestiging (double screw)

ETIM class

EC010049 Two-part bracket round

HS code

73089098

brand

FastFix
