group: BSI-8-10-1/2

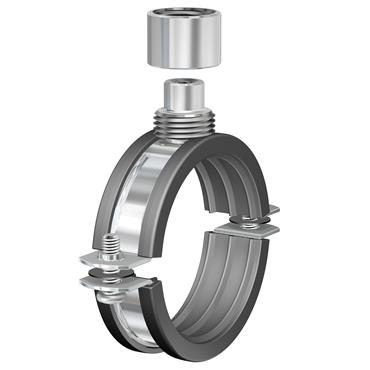

BSI clips are rubber lined universal clips for mounting pipes to the wall or ceiling.

Fitted with two bolts with anti-loss ring.
Bolt with slot and cross head.
Reinforcement grooves ensure that BSI clips maintain their shape.
Noise suppressing rubber strip: 17 dB(A)* according to ISO 3822-1

(* To achieve good sound suppression do not overload the fitting).

read more

read less

if the download did not start automatically, click here

PDF generation failed, please try again later

potable water

natural gas

heating

cooling

compressed air

vacuum

show all

show less

residential

commercial building

industry

show all

show less

no approvals available

code

size

dimensions

weight

packaging

gtin

code

size

G1/2-M8-M10 x 15-19

dimensions

52x62x20 mm

weight

0.06 kg

packaging

carton (50 pce)

gtin

08719313022228

code

size

G1/2-M8-M10 x 20-25

dimensions

58x69x20 mm

weight

0.07 kg

packaging

carton (50 pce)

gtin

08719313022235

code

size

G1/2-M8-M10 x 26-30

dimensions

62x74x20 mm

weight

0.07 kg

packaging

carton (50 pce)

gtin

08719313022242

code

size

G1/2-M8-M10 x 32-36

dimensions

68x81x20 mm

weight

0.09 kg

packaging

carton (50 pce)

gtin

08719313022259

code

size

G1/2-M8-M10 x 38-43

dimensions

76x87x20 mm

weight

0.09 kg

packaging

carton (50 pce)

gtin

08719313022266

code

size

G1/2-M8-M10 x 44-49

dimensions

82x94x20 mm

weight

0.1 kg

packaging

carton (50 pce)

gtin

08719313022273

code

size

G1/2-M8-M10 x 50-55

dimensions

88x103x20 mm

weight

0.1 kg

packaging

carton (50 pce)

gtin

08719313022280

code

size

G1/2-M8-M10 x 56-61

dimensions

94x106x20 mm

weight

0.11 kg

packaging

carton (50 pce)

gtin

08719313022297

code

size

G1/2-M8-M10 x 62-67

dimensions

100x113x20 mm

weight

0.14 kg

packaging

carton (50 pce)

gtin

08719313022303

code

size

G1/2-M8-M10 x 75-80

dimensions

112x128x20 mm

weight

0.16 kg

packaging

carton (50 pce)

gtin

08719313022327

code

size

G1/2-M8-M10 x 87-92

dimensions

124x141x20 mm

weight

0.18 kg

packaging

carton (50 pce)

gtin

08719313022341

code

size

G1/2-M8-M10 x 108-116

dimensions

146x170x20 mm

weight

0.24 kg

packaging

carton (25 pce)

gtin

08719313022365

code

size

G1/2-M8-M10 x 121-127

dimensions

156x185x20 mm

weight

0.27 kg

packaging

carton (25 pce)

gtin

08719313022372

code

size

DN1

z3

code

size

G1/2-M8-M10 x 15-19

DN1

3/8" (DN10)

z3

36

code

size

G1/2-M8-M10 x 20-25

DN1

1/2" (DN15)

z3

39

code

size

G1/2-M8-M10 x 26-30

DN1

3/4" (DN20)

z3

42

code

size

G1/2-M8-M10 x 32-36

DN1

1" (DN25)

z3

45

code

size

G1/2-M8-M10 x 38-43

DN1

-

z3

-

code

size

G1/2-M8-M10 x 44-49

DN1

1 1/2" (DN40)

z3

51

code

size

G1/2-M8-M10 x 50-55

DN1

1 3/4"

z3

54

code

size

G1/2-M8-M10 x 56-61

DN1

2" (DN50)

z3

57

code

size

G1/2-M8-M10 x 62-67

DN1

-

z3

61

code

size

G1/2-M8-M10 x 75-80

DN1

2 1/2" (DN65)

z3

67

code

size

G1/2-M8-M10 x 87-92

DN1

3" (DN80)

z3

73

code

size

G1/2-M8-M10 x 108-116

DN1

4" (DN100)

z3

86

code

size

G1/2-M8-M10 x 121-127

DN1

-

z3

91

product info

item

BSI clip G1/2-M8-M10

item number with gtin

BSI-8-10-1/2

manufacturer

Aalberts integrated piping systems B.V. (VSH)

weight

0.27 kg

dimensions

156x185x20 mm

characteristics

materials

steel

finishing

galvanized (electrolytically zincplated)

general

product group

Fastening (double screw)

ETIM class

EC010049 Two-part bracket round

HS code

73089098

brand

FastFix

series

clips - lined

product type

BSI-8-10-1/2

image for BSI G1/2-M8-M10

diagram | jpg

BSI G1/2-M8-M10

image for BSI G1/2-M8-M10 Image

image | jpg

BSI G1/2-M8-M10 Image

image for BSI G1/2-M8-M10 Image

image | jpg

BSI G1/2-M8-M10 Image

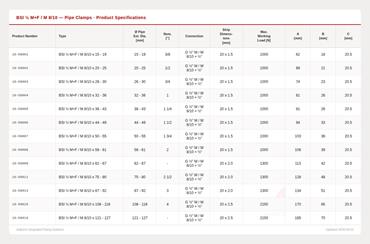

image for BSI-8-10-1/2 Product Dimension Table

image | jpg

BSI-8-10-1/2 Product Dimension Table

image for Diagram

diagram | jpg

Diagram

image for bsi_m8_lh19754_p.jpg

image for printing | jpg


label

value

label

etim-class

value

EC010049 Two-part bracket round

label

Material

value

Steel

label

Surface protection

value

Galvanic/electrolytic zinc plated

label

Lock facility

value

Double screw

label

Height

value

20mm

label

Height (imperial)

value

0.79"

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

VdS quality mark

value

No

label

KIWA certified

value

No
