group: BSH-8-10
potable water
natural gas
heating
cooling
compressed air
vacuum
residential
commercial building
industry
no approvals available

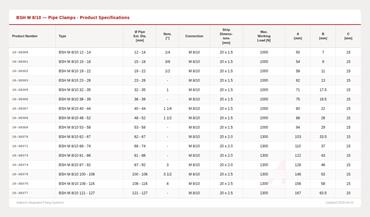

code
size
dimensions
weight
packaging
gtin
code
size
M8-M10 x 12-14
dimensions
44x60x20 mm
weight
0.06 kg
packaging
carton (50 pce)
gtin
08719313012823
code
size
M8-M10 x 15-18
dimensions
48x64x20 mm
weight
0.06 kg
packaging
carton (50 pce)
gtin
08719313012830
code
size
M8-M10 x 19-22
dimensions
52x68x20 mm
weight
0.07 kg
packaging
carton (50 pce)
gtin
08719313012847
code
size
M8-M10 x 23-26
dimensions
56x72x20 mm
weight
0.07 kg
packaging
carton (50 pce)
gtin
08719313012854
code
size
M8-M10 x 27-30
dimensions
60x76x20 mm
weight
0.08 kg
packaging
carton (50 pce)
gtin
08719313012861
code
size
M8-M10 x 32-35
dimensions
65x81x20 mm
weight
0.08 kg
packaging
carton (50 pce)
gtin
08719313012878
code
size
M8-M10 x 36-39
dimensions
69x85x20 mm
weight
0.09 kg
packaging
carton (50 pce)
gtin
08719313012885
code
size
M8-M10 x 40-44
dimensions
74x90x20 mm
weight
0.09 kg
packaging
carton (50 pce)
gtin
08719313012892
code
size
M8-M10 x 48-52
dimensions
82x98x20 mm
weight
0.1 kg
packaging
carton (50 pce)
gtin
08719313012908
code
size
M8-M10 x 53-58
dimensions
88x104x20 mm
weight
0.11 kg
packaging
carton (50 pce)
gtin
08719313012915
code
size
M8-M10 x 58-61
dimensions
91x107x20 mm
weight
0.11 kg
packaging
carton (50 pce)
gtin
08719313012922
code
size
M8-M10 x 62-67
dimensions
97x113x20 mm
weight
0.14 kg
packaging
carton (50 pce)
gtin
08719313013004
code
size
M8-M10 x 68-74
dimensions
100x110x20 mm
weight
0.15 kg
packaging
carton (50 pce)
gtin
08719313012939
code
size
M8-M10 x 75-80
dimensions
110x126x20 mm
weight
0.16 kg
packaging
carton (50 pce)
gtin
08719313012946
code
size
M8-M10 x 81-86
dimensions
116x132x20 mm
weight
0.17 kg
packaging
carton (50 pce)
gtin
08719313012953
code
size
M8-M10 x 87-92
dimensions
122x138x20 mm
weight
0.18 kg
packaging
carton (50 pce)
gtin
08719313012960
code
size
M8-M10 x 100-106
dimensions
133x150x20 mm
weight
0.24 kg
packaging
carton (25 pce)
gtin
08719313012977
code
size
M8-M10 x 108-116
dimensions
146x162x20 mm
weight
0.25 kg
packaging
carton (25 pce)
gtin
08719313012984
code
size
M8-M10 x 121-127
dimensions
157x173x20 mm
weight
0.27 kg
packaging
carton (25 pce)
gtin
08719313012991
code
size
DN1
z3
item
BSH clip M8-M10
item number with gtin
BSH-8-10
manufacturer
Aalberts integrated piping systems B.V. (VSH)
weight
0.27 kg
dimensions
157x173x20 mm
materials
steel
finishing
galvanized (electrolytically zincplated)
min. medium temperature
-40 °C
max medium temperature
120 °C
product group
bevestiging (snapper mounting, single screw)
ETIM class
EC010049 Two-part bracket roundHS code
73089098
brand
FastFix
series
clips - lined
product type
BSH-8-10
label
value
label
etim-class
label
Material
value
Steel
label
Surface protection
value
Galvanic/electrolytic zinc plated
label
Inlay damping value
value
15dB(A)
label
Connection facility
value
Internal thread
label
Connection size, connection facility
value
M8/M10
label
Suitable for number of pipes
value
1
label
Height
value
20mm
label
Height (imperial)
value
0.79"
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Suitable for steel tube
value
Yes
label
Suitable for stainless steel tube
value
Yes
label
Suitable for copper tube
value
Yes
label
Suitable for cast iron pipe
value
Yes
label
Suitable for plastic tube
value
Yes
label
Suitable for pipe coil
value
No
label
Medium temperature (continuous)
value
-40°C - 120°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 248°F
label
VdS quality mark
value
No
label
KIWA certified
value
No
