group: BSA-SST
potable water
natural gas
heating
cooling
compressed air
vacuum
industry
commercial building
residential
no approvals available
code
size
dimensions
weight
packaging
gtin
code
size
G1/2-M10 x 14-16
dimensions
47x40x20 mm
weight
0.07 kg
packaging
bag (10 pce)
gtin
08719313020934
code
size
G1/2-M10 x 17-19
dimensions
50x44x20 mm
weight
0.07 kg
packaging
bag (10 pce)
gtin
08719313020958
code
size
G1/2-M10 x 20-24
dimensions
54x48x20 mm
weight
0.08 kg
packaging
bag (10 pce)
gtin
08719313020972
code
size
G1/2-M10 x 25-28
dimensions
59x52x20 mm
weight
0.08 kg
packaging
bag (10 pce)
gtin
08719313020996
code
size
G1/2-M10 x 33-37
dimensions
70x64x20 mm
weight
0.1 kg
packaging
bag (10 pce)
gtin
08719313021016
code
size
G1/2-M10 x 38-42
dimensions
78x72x20 mm
weight
0.11 kg
packaging
bag (10 pce)
gtin
08719313021030
code
size
G1/2-M10 x 44.5-49
dimensions
83x78x20 mm
weight
0.13 kg
packaging
bag (10 pce)
gtin
08719313021054
code
size
G1/2-M10 x 50-54
dimensions
90x84x20 mm
weight
0.13 kg
packaging
bag (10 pce)
gtin
08719313021078
code
size
G1/2-M10 x 56-60
dimensions
96x90x20 mm
weight
0.15 kg
packaging
bag (10 pce)
gtin
08719313021092
code
size
G1/2-M10 x 62-64
dimensions
119x96x20 mm
weight
0.21 kg
packaging
carton (25 pce)
gtin
08719313021108
code
size
G1/2-M10 x 75-80
dimensions
133x110x20 mm
weight
0.24 kg
packaging
bag (5 pce)
gtin
08719313035761
code
size
G1/2-M10 x 89-91
dimensions
139x116x20 mm
weight
0.27 kg
packaging
carton (25 pce)
gtin
08719313021122
code
size
G1/2-M10 x 108-116
dimensions
168x144x20 mm
weight
0.32 kg
packaging
carton (25 pce)
gtin
08719313021139
code
size
G1/2-M10 x 121-127
dimensions
184x152x20 mm
weight
0.36 kg
packaging
bag (5 pce)
gtin
08719313035778
code
size
G1/2-M10 x 159-162
dimensions
195x166x20 mm
weight
0.44 kg
packaging
bag (5 pce)
gtin
08719313035785
code
size
z3
DN1
item

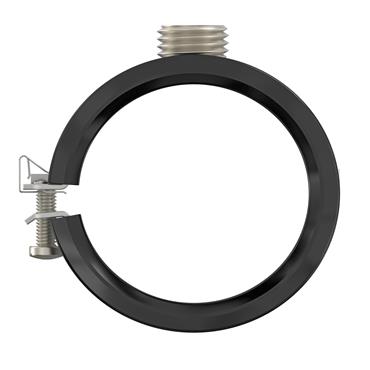

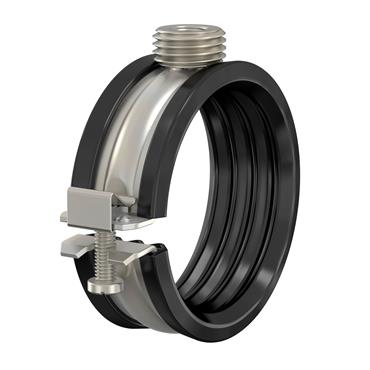

BSA clip StSt
item number with gtin
BSA-SST
manufacturer
Aalberts integrated piping systems B.V. (VSH)
weight
0.44 kg
dimensions
195x166x20 mm
color
silver
materials
stainless steel (Stainless steel 316 (1.4401))
finishing
none
shape
round
connection type
G - female thread gas cylindrical (BSPP)
sealing
EPDM
min. medium temperature
-40 °C
max medium temperature
120 °C
product group
bevestiging (snapper mounting, single click)
ETIM class
EC010049 Two-part bracket roundHS code
73089098
brand
FastFix
series
clips - lined
product type
BSA-SST
label
value
label
etim-class
label
Material
value
Stainless steel
label
Material quality
value
Stainless steel 316 (1.4401)
label
Surface treatment
value
Untreated
label
Surface protection
value
Untreated
label
Inlay
value
Rubber
label
Connection facility
value
Internal thread/external thread
label
Connection size, connection facility
value
1/2 inch - M10
label
Height
value
20mm
label
Height (imperial)
value
0.79"
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Suitable for steel tube
value
Yes
label
Suitable for stainless steel tube
value
Yes
label
Suitable for copper tube
value
Yes
label
Suitable for aluminium tube
value
Yes
label
Suitable for cast iron pipe
value
Yes
label
Suitable for plastic tube
value
Yes
label
Medium temperature (continuous)
value
-40°C - 120°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 248°F
label
VdS quality mark
value
No
label
KIWA certified
value
No
