group: BSA M8
potable water
natural gas
heating
cooling
compressed air
vacuum
industry
commercial building
residential
no approvals available

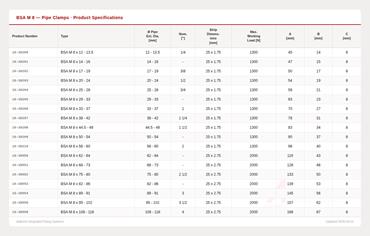

item number
size
dimensions
weight
packaging
gtin
item number
size
M8 x 12-13.5
dimensions
45x36x25 mm
weight
0.05 kg
packaging
bag (10 pce)
gtin
08719313015275
item number
size
M8 x 14-16
dimensions
47x38x25 mm
weight
0.05 kg
packaging
bag (10 pce)
gtin
08719313015299
item number
size
M8 x 17-19
dimensions
50x42x25 mm
weight
0.06 kg
packaging
bag (10 pce)
gtin
08719313015312
item number
size
M8 x 20-24
dimensions
54x46x25 mm
weight
0.07 kg
packaging
bag (10 pce)
gtin
08719313015336
item number
size
M8 x 25-28
dimensions
59x50x25 mm
weight
0.07 kg
packaging
bag (10 pce)
gtin
08719313015350
item number
size
M8 x 29-33
dimensions
63x54x25 mm
weight
0.08 kg
packaging
bag (10 pce)
gtin
08719313015374
item number
size
M8 x 33-37
dimensions
70x62x25 mm
weight
0.09 kg
packaging
bag (10 pce)
gtin
08719313015398
item number
size
M8 x 38-42
dimensions
78x70x25 mm
weight
0.1 kg
packaging
bag (10 pce)
gtin
08719313015411
item number
size
M8 x 44.5-49
dimensions
83x76x25 mm
weight
0.11 kg
packaging
bag (10 pce)
gtin
08719313015435
item number
size
M8 x 50-54
dimensions
90x82x25 mm
weight
0.12 kg
packaging
bag (10 pce)
gtin
08719313015459
item number
size
M8 x 56-60
dimensions
96x88x25 mm
weight
0.13 kg
packaging
bag (10 pce)
gtin
08719313015473
item number
size
M8 x 62-64
dimensions
119x94x25 mm
weight
0.21 kg
packaging
carton (25 pce)
gtin
08719313016494
item number
size
M8 x 68-73
dimensions
126x100x25 mm
weight
0.22 kg
packaging
carton (25 pce)
gtin
08719313016500
item number
size
M8 x 75-80
dimensions
133x108x25 mm
weight
0.24 kg
packaging
carton (25 pce)
gtin
08719313016517
item number
size
M8 x 82-86
dimensions
139x114x25 mm
weight
0.25 kg
packaging
carton (25 pce)
gtin
08719313016524
item number
size
M8 x 89-91
dimensions
145x120x25 mm
weight
0.25 kg
packaging
carton (25 pce)
gtin
08719313016531
item number
size
M8 x 95-102
dimensions
157x132x25 mm
weight
0.27 kg
packaging
carton (25 pce)
gtin
08719313016548
item number
size
M8 x 108-116
dimensions
168x142x25 mm
weight
0.31 kg
packaging
carton (25 pce)
gtin
08719313016562
code
size
DN1
item

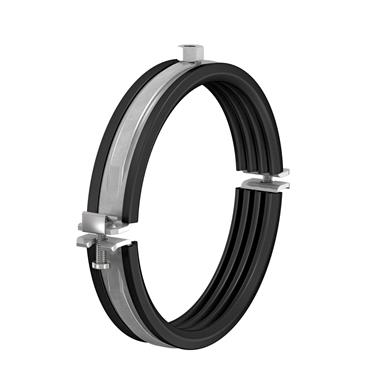

BSA M8 clip
item number with gtin
BSA M8
manufacturer
Aalberts integrated piping systems B.V. (VSH)
weight
0.31 kg
dimensions
168x142x25 mm
color
silver
materials
steel
finishing
galvanized (electrolytically zincplated)
shape
round
connection type
M - female thread metric
sealing
EPDM
min. medium temperature
-40 °C
max medium temperature
120 °C
product group
Fastening (snapper mounting, single click)
ETIM class
EC010049 Two-part bracket roundHS code
73089098
brand
FastFix
series
clips - lined
product type
BSA M8
UNSPS
40141725
label
value
label
etim-class
label
Material
value
Steel
label
Surface protection
value
Galvanic/electrolytic zinc plated
label
Inlay
value
Rubber
label
Inlay damping value
value
19dB(A)
label
Connection facility
value
Internal thread
label
Connection size, connection facility
value
M8
label
Height
value
25mm
label
Height (imperial)
value
0.98"
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Suitable for steel tube
value
Yes
label
Suitable for stainless steel tube
value
Yes
label
Suitable for copper tube
value
Yes
label
Suitable for cast iron pipe
value
Yes
label
Suitable for plastic tube
value
Yes
label
Suitable for pipe coil
value
No
label
Medium temperature (continuous)
value
-40°C - 120°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 248°F
label
VdS quality mark
value
No
label
KIWA certified
value
No
