group: BSA-8-10

BSA clips are rubber lined universal clips for mounting pipes to the wall or ceiling. Thanks to the unique locking system, the pipe can be pre-mounted without the use of tools. This means that the pipe's position can be adjusted afterwards if necessary, and the position of a bend or a T joint determined more accurately. At this stage the fixing bolt can be tightened, so that the pipe is held and installation completed.
  • Fast assembly thanks to the patented locking system with click-spring.
  • Easy pre-assembly without the need for tools and without the pipe coming away from the clip.
  • Minimal headroom requirement making it possible to mount pipes directly to the ceiling.
  • Stout material and reinforcement grooves ensure stability and rigidity.
  • Rubber inlay clamped to the clip ensures that the rubber will not be displaced, should the pipe move in any way.
  • Noise suppressing rubber strip: 19 dB(A)* according to ISO 3822-1
(* To achieve good sound suppression do not overload the fitting).
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

natural gas

natural gas

heating

heating

cooling

cooling

compressed air

compressed air

vacuum

vacuum

show all
show less

segments

industry

industry

commercial building

commercial building

residential

residential

show all
show less

approvals

no approvals available

  • assortment
  • dimensions
  • specifications
  • downloads
  • ETIM
  • sustainability

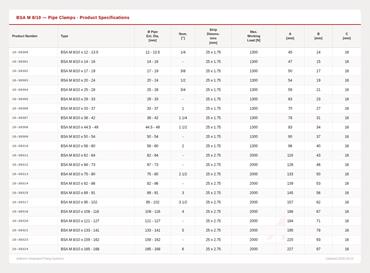

code

size

dimensions

weight

packaging

gtin

code

10-39300

size

M8-M10 x 12-13.5

dimensions

45x40x25 mm

weight

0.06 kg

packaging

bag (10 pce)

gtin

08719313015725

code

10-39301

size

M8-M10 x 14-16

dimensions

47x42x25 mm

weight

0.06 kg

packaging

bag (10 pce)

gtin

08719313015749

code

10-39302

size

M8-M10 x 17-19

dimensions

54x50x25 mm

weight

0.07 kg

packaging

bag (10 pce)

gtin

08719313015763

code

10-39303

size

M8-M10 x 20-24

dimensions

59x54x25 mm

weight

0.07 kg

packaging

bag (10 pce)

gtin

08719313015787

code

10-39304

size

M8-M10 x 25-28

dimensions

63x58x25 mm

weight

0.08 kg

packaging

bag (10 pce)

gtin

08719313015800

code

10-39305

size

M8-M10 x 29-33

dimensions

70x66x25 mm

weight

0.08 kg

packaging

bag (10 pce)

gtin

08719313015824

code

10-39306

size

M8-M10 x 33-37

dimensions

83x80x25 mm

weight

0.1 kg

packaging

bag (10 pce)

gtin

08719313015848

code

10-39307

size

M8-M10 x 38-42

dimensions

90x86x25 mm

weight

0.11 kg

packaging

bag (10 pce)

gtin

08719313015862

code

10-39308

size

M8-M10 x 44.5-49

dimensions

96x92x25 mm

weight

0.12 kg

packaging

bag (10 pce)

gtin

08719313015886

code

10-39309

size

M8-M10 x 50-54

dimensions

90x82x25 mm

weight

0.12 kg

packaging

bag (10 pce)

gtin

08719313015909

code

10-39310

size

M8-M10 x 56-60

dimensions

96x103x25 mm

weight

0.13 kg

packaging

bag (10 pce)

gtin

08719313015923

code

10-39311

size

M8-M10 x 62-64

dimensions

119x98x25 mm

weight

0.21 kg

packaging

carton (25 pce)

gtin

08719313015930

code

10-39312

size

M8-M10 x 68-73

dimensions

126x104x25 mm

weight

0.22 kg

packaging

carton (25 pce)

gtin

08719313015947

code

10-39313

size

M8-M10 x 75-80

dimensions

133x112x25 mm

weight

0.24 kg

packaging

carton (25 pce)

gtin

08719313015954

code

10-39314

size

M8-M10 x 82-86

dimensions

139x118x25 mm

weight

0.25 kg

packaging

carton (25 pce)

gtin

08719313015961

code

10-39315

size

M8-M10 x 89-91

dimensions

145x124x25 mm

weight

0.26 kg

packaging

carton (25 pce)

gtin

08719313015978

code

10-39317

size

M8-M10 x 95-102

dimensions

157x136x25 mm

weight

0.29 kg

packaging

carton (25 pce)

gtin

08719313015985

code

10-39318

size

M8-M10 x 108-116

dimensions

168x146x25 mm

weight

0.32 kg

packaging

carton (25 pce)

gtin

08719313015992

code

10-39320

size

M8-M10 x 121-127

dimensions

184x154x25 mm

weight

0.35 kg

packaging

carton (25 pce)

gtin

08719313016005

code

10-39321

size

M8-M10 x 133-141

dimensions

195x168x25 mm

weight

0.39 kg

packaging

carton (25 pce)

gtin

08719313016012

code

10-39323

size

M8-M10 x 159-162

dimensions

220x198x25 mm

weight

0.44 kg

packaging

carton (25 pce)

gtin

08719313016029

code

10-39324

size

M8-M10 x 165-168

dimensions

227x206x25 mm

weight

0.45 kg

packaging

carton (25 pce)

gtin

08719313016036

code

size

DN1

z3

code

10-39300

size

M8-M10 x 12-13.5

DN1

M8/M10

z3

29

code

10-39301

size

M8-M10 x 14-16

DN1

M8/M10

z3

30

code

10-39302

size

M8-M10 x 17-19

DN1

M8/M10

z3

31

code

10-39303

size

M8-M10 x 20-24

DN1

M8/M10

z3

34

code

10-39304

size

M8-M10 x 25-28

DN1

M8/M10

z3

36

code

10-39305

size

M8-M10 x 29-33

DN1

M8/M10

z3

38

code

10-39306

size

M8-M10 x 33-37

DN1

M8/M10

z3

40

code

10-39307

size

M8-M10 x 38-42

DN1

M8/M10

z3

43

code

10-39308

size

M8-M10 x 44.5-49

DN1

M8/M10

z3

46

code

10-39309

size

M8-M10 x 50-54

DN1

M8/M10

z3

49

code

10-39310

size

M8-M10 x 56-60

DN1

M8/M10

z3

52

code

10-39311

size

M8-M10 x 62-64

DN1

M8/M10

z3

57

code

10-39312

size

M8-M10 x 68-73

DN1

M8/M10

z3

61

code

10-39313

size

M8-M10 x 75-80

DN1

M8/M10

z3

65

code

10-39314

size

M8-M10 x 82-86

DN1

M8/M10

z3

68

code

10-39315

size

M8-M10 x 89-91

DN1

M8/M10

z3

70

code

10-39317

size

M8-M10 x 95-102

DN1

M8/M10

z3

76

code

10-39318

size

M8-M10 x 108-116

DN1

M8/M10

z3

83

code

10-39320

size

M8-M10 x 121-127

DN1

M8/M10

z3

88

code

10-39321

size

M8-M10 x 133-141

DN1

M8/M10

z3

95

code

10-39323

size

M8-M10 x 159-162

DN1

M8/M10

z3

106

code

10-39324

size

M8-M10 x 165-168

DN1

M8/M10

z3

109

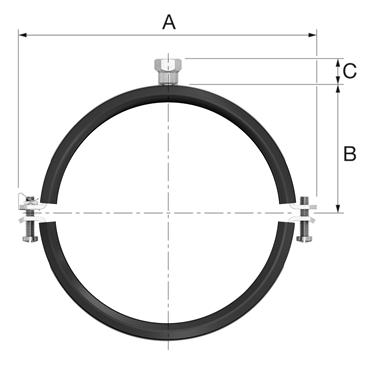

technical drawing for product

product info

item

BSA M8/M10 clip

item number with gtin

BSA-8-10

manufacturer

Aalberts integrated piping systems B.V. (VSH)

weight

0.45 kg

dimensions

227x206x25 mm

characteristics

color

silver

materials

steel

finishing

galvanized (electrolytically zincplated)

shape

round

connection type

M - female thread metric

sealing

EPDM

technical

min. medium temperature

-40 °C

max medium temperature

120 °C

general

product group

bevestiging (snapper mounting, single click)

ETIM class

EC010049 Two-part bracket round

HS code

73089098

brand

FastFix

series

clips - lined

product type

BSA-8-10

image for bsa_instr_3_lh10864_p.jpg

image for printing | jpg


save to my IPS

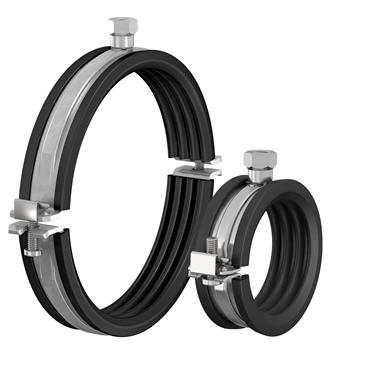

image for bsa_m8_10_lhcollection_p.jpg

image for printing | jpg


save to my IPS
image for Diagram

diagram | jpg

Diagram

save to my IPS
image for bsa_m8_m10_3d_f28224_p.jpg

image for printing | jpg


save to my IPS
image for bsa_5inch_m10_m8_3d_f53994_p.jpg

image for printing | jpg


save to my IPS
image for bsa_5inch_m10_m8_2d_dm54004

image | jpg

bsa_5inch_m10_m8_2d_dm54004

save to my IPS

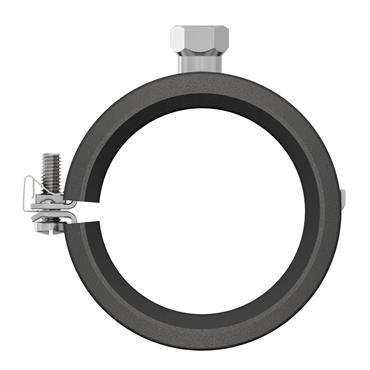

image for bsa_m8_m10_f_2d_f28994

image | jpg

bsa_m8_m10_f_2d_f28994

save to my IPS

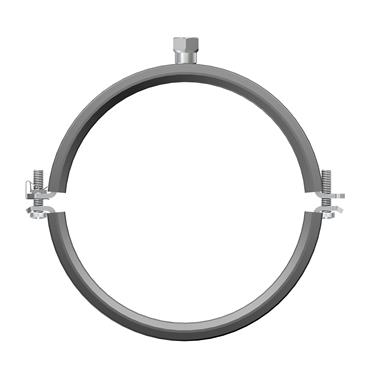

image for bsa_combi_lh10764

image | jpg

bsa_combi_lh10764

save to my IPS

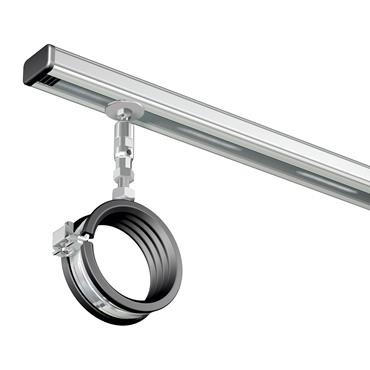

image for pss_ceiling_lh6824

image | jpg

pss_ceiling_lh6824

save to my IPS
image for bsa_detail_lh10784

image | jpg

bsa_detail_lh10784

save to my IPS
image for bsa_instr_1_lh10844

image | jpg

bsa_instr_1_lh10844

save to my IPS
image for bsa_instr_2_lh10854

image | jpg

bsa_instr_2_lh10854

save to my IPS
image for bsa_instr_3_lh10864

image | jpg

bsa_instr_3_lh10864

save to my IPS
image for combinut_sec_nl_f65424

image | jpg

combinut_sec_nl_f65424

save to my IPS
image for bsa_instr_2_lh10854_p.jpg

image for printing | jpg


save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for Diagram

diagram | jpg

Diagram

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for Diagram

diagram | jpg

Diagram

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for BSA

image | jpg

BSA

save to my IPS
image for Diagram

diagram | jpg

Diagram

save to my IPS
image for Diagram

diagram | jpg

Diagram

save to my IPS

label

value

label

etim-class

value

EC010049 Two-part bracket round

label

Material

value

Steel

label

Surface protection

value

Galvanic/electrolytic zinc plated

label

Inlay

value

Rubber

label

Inlay damping value

value

19dB(A)

label

Connection facility

value

Internal thread

label

Connection size, connection facility

value

M8/M10

label

Height

value

25mm

label

Height (imperial)

value

0.98"

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Suitable for steel tube

value

Yes

label

Suitable for stainless steel tube

value

Yes

label

Suitable for copper tube

value

Yes

label

Suitable for cast iron pipe

value

Yes

label

Suitable for plastic tube

value

Yes

label

Suitable for pipe coil

value

No

label

Medium temperature (continuous)

value

-40°C - 120°C

label

Medium temperature (continuous) (imperial)

value

-40°F - 248°F

label

VdS quality mark

value

No

label

KIWA certified

value

No

code

carbon footprint (A-C) embodied carbon

data source

code

10-39300

-

-

-

-

code

10-39301

-

-

-

-

code

10-39302

-

-

-

-

code

10-39303

-

-

-

-

code

10-39304

-

-

-

-

code

10-39305

-

-

-

-

code

10-39306

carbon footprint (A-C) embodied carbon

0.61kgCO2e

data source

TM65

code

10-39307

-

-

-

-

code

10-39308

-

-

-

-

code

10-39309

-

-

-

-

code

10-39310

carbon footprint (A-C) embodied carbon

0.87kgCO2e

data source

TM65

code

10-39311

-

-

-

-

code

10-39312

-

-

-

-

code

10-39313

-

-

-

-

code

10-39314

-

-

-

-

code

10-39315

-

-

-

-

code

10-39317

-

-

-

-

code

10-39318

-

-

-

-

code

10-39320

-

-

-

-

code

10-39321

-

-

-

-

code

10-39323

-

-

-

-

code

10-39324

carbon footprint (A-C) embodied carbon

2.85kgCO2e

data source

TM65

Got any questions?

we are here to help

contact
product selected products selected
add to list save to my IPS

You can compare up to 2 products

You can compare up to 4 products

[saving downloads] requires an account

register

added to my IPS

View
sluiten

choose your region

send by email

This field is hidden when viewing the form
optional
optional
optional

NEW: myIPS including submittal package builder

streamline your projects effortlessly with our new submittal package builder! Compile, customize, and download our comprehensive product data sheets.

go to my IPS now!

requires an account

log in
register

filter downloads

filters

by name or type

search

category

category
  • brochures (32)
  • technical manuals (16)
  • installation manuals (3)
  • EPD (23)

product line

product line
  • VSH XPress (207)
  • VSH SudoPress (102)
  • VSH Shurjoint (74)
  • Pegler valves (69)

product type

product type
  • fittings (331)
  • valves (127)
  • pipes (103)
  • measurement and accessories (10)
show results
