group: BRS-A-SST
heating
cooling
potable water
residential
commercial building
industry
no approvals available
code
size
dimensions
weight
packaging
gtin
code
size
M8-M10 x 8-10 StSt
dimensions
32x53x20 mm
weight
0.05 kg
packaging
carton (50 pce)
gtin
08719313013271
code
size
M8-M10 x 12-14 StSt
dimensions
46x58x20 mm
weight
0.06 kg
packaging
carton (50 pce)
gtin
08719313013288
code
size
M8-M10 x 15-19 StSt
dimensions
52x62x20 mm
weight
0.06 kg
packaging
carton (50 pce)
gtin
08719313013295
code
size
M8-M10 x 20-25 StSt
dimensions
58x69x20 mm
weight
0.07 kg
packaging
carton (50 pce)
gtin
08719313013301
code
size
M8-M10 x 26-30 StSt
dimensions
62x74x20 mm
weight
0.07 kg
packaging
carton (50 pce)
gtin
08719313013318
code
size
M8-M10 x 32-36 StSt
dimensions
68x81x20 mm
weight
0.09 kg
packaging
carton (50 pce)
gtin
08719313013325
code
size
M8-M10 x 38-43 StSt
dimensions
76x87x20 mm
weight
0.09 kg
packaging
carton (50 pce)
gtin
08719313013332
code
size
M8-M10 x 44-49 StSt
dimensions
82x94x20 mm
weight
0.1 kg
packaging
carton (50 pce)
gtin
08719313013349
code
size
M8-M10 x 50-55 StSt
dimensions
88x103x20 mm
weight
0.1 kg
packaging
carton (50 pce)
gtin
08719313013356
code
size
M8-M10 x 56-61 StSt
dimensions
94x106x20 mm
weight
0.11 kg
packaging
carton (50 pce)
gtin
08719313013363
code
size
M8-M10 x 62-67 StSt
dimensions
100x113x20 mm
weight
0.14 kg
packaging
carton (50 pce)
gtin
08719313013370
code
size
M8-M10 x 68-73 StSt
dimensions
106x123x20 mm
weight
0.16 kg
packaging
carton (50 pce)
gtin
08719313013387
code
size
M8-M10 x 75-80 StSt
dimensions
112x128x20 mm
weight
0.16 kg
packaging
carton (50 pce)
gtin
08719313013394
code
size
M8-M10 x 82-86 StSt
dimensions
118x134x20 mm
weight
0.17 kg
packaging
bag (10 pce)
gtin
08719313035280
code
size
M8-M10 x 87-92 StSt
dimensions
124x141x20 mm
weight
0.18 kg
packaging
carton (50 pce)
gtin
08719313013417
code
size
M8-M10 x 95-102 StSt
dimensions
132x158x20 mm
weight
0.23 kg
packaging
carton (50 pce)
gtin
08719313013424
code
size
M8-M10 x 108-116 StSt
dimensions
146x170x20 mm
weight
0.24 kg
packaging
carton (25 pce)
gtin
08719313013431
code
size
M8-M10 x 121-127 StSt
dimensions
156x185x20 mm
weight
0.27 kg
packaging
carton (25 pce)
gtin
08719313013448
code
size
M8-M10 x 131-141 StSt
dimensions
170x195x20 mm
weight
0.29 kg
packaging
carton (25 pce)
gtin
08719313013455
code
size
M8-M10 x 159-163 StSt
dimensions
192x215x20 mm
weight
0.33 kg
packaging
carton (25 pce)
gtin
08719313013462
code
size
M8-M10 x 165-169 StSt
dimensions
198x226x20 mm
weight
0.34 kg
packaging
carton (25 pce)
gtin
08719313013479
code
size
M8-M10 x 192-202 StSt
dimensions
230x265x20 mm
weight
0.42 kg
packaging
carton (25 pce)
gtin
08719313013486
code
size
M8-M10 x 210-220 StSt
dimensions
250x274x20 mm
weight
0.45 kg
packaging
bag (5 pce)
gtin
08719313035297
code
size
DN1
item

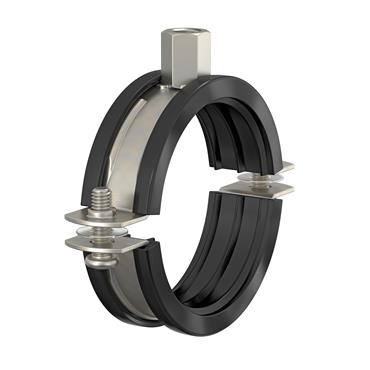

BRS-A clip StSt
item number with gtin
BRS-A-SST
manufacturer
Aalberts integrated piping systems B.V. (VSH)
weight
0.45 kg
dimensions
250x274x20 mm
materials
stainless steel (Stainless steel 316 (1.4401))
finishing
none
min. medium temperature
-40 °C
max medium temperature
120 °C
product group
bevestiging (double screw)
ETIM class
EC010049 Two-part bracket roundHS code
73089098
brand
FastFix
series
clips - lined
product type
BRS-A-SST
label
value
label
etim-class
label
Material
value
Stainless steel
label
Material quality
value
Stainless steel 316 (1.4401)
label
Surface treatment
value
Untreated
label
Surface protection
value
Untreated
label
Inlay damping value
value
15dB(A)
label
Connection facility
value
Internal thread
label
Connection size, connection facility
value
M8/M10
label
Lock facility
value
Double screw
label
Suitable for number of pipes
value
1
label
Height
value
20mm
label
Height (imperial)
value
0.79"
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Suitable for steel tube
value
Yes
label
Suitable for stainless steel tube
value
Yes
label
Suitable for copper tube
value
Yes
label
Suitable for aluminium tube
value
Yes
label
Suitable for cast iron pipe
value
Yes
label
Suitable for plastic tube
value
Yes
label
Suitable for pipe coil
value
Yes
label
Medium temperature (continuous)
value
-40°C - 120°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 248°F
label
VdS quality mark
value
No
label
KIWA certified
value
No
