Broen Ballofix handle

group: B9098

The B9098 Broen Ballofix mini ball valves are high quality, compact ball valves with high quality finishing. The design and materials used, guarantee smooth operation, even after several years of use. Broen Ballofix ball valves can be used without or with operating handles. The handles are available in various colours so that colour coding is possible. Due to the wide range, an optimal version is available for every application.
  • Broen Ballofix mini ball valves can be operated using a screwdriver or Ballofix handle
  • we recommend opening and closing Broen Ballofix ball valves twice a year & nbsp; to ensure optimal operation
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

13724

size

DN6-DN15 black

dimensions

30x10x13 mm

weight

0.01 kg

packaging

carton (20 pce)

gtin

-

item number

13728

size

DN6-DN15 red

dimensions

30x10x10 mm

weight

0 kg

packaging

-

gtin

05708537302622

item number

13721

size

3 mm DN20-DN32 old model

dimensions

-

weight

0 kg

packaging

-

gtin

-

item number

13729

size

DN6-DN15 blue

dimensions

30x10x13 mm

weight

0.01 kg

packaging

carton (20 pce)

gtin

08711985221695

item number

13732

size

DN6-DN15 chrome

dimensions

30x10x13 mm

weight

0 kg

packaging

carton (20 pce)

gtin

08711985251401

item number

13725

size

DN20-DN32 black

dimensions

40x12x12 mm

weight

0.01 kg

packaging

carton (20 pce)

gtin

-

item number

13712

size

3 mm DN6-DN15 old model

dimensions

30x10x14 mm

weight

0 kg

packaging

carton (20 pce)

gtin

05708537064520

item number

size

M1

M2

E

Y

DN1

DN2

item number

13724

size

DN6-DN15 black

M1

7

M2

22

E

10

Y

13

DN1

DN2

item number

13728

size

DN6-DN15 red

M1

7

M2

22

E

10

Y

13

DN1

DN2

item number

13721

size

3 mm DN20-DN32 old model

M1

M2

E

Y

DN1

DN20

DN2

DN32

item number

13729

size

DN6-DN15 blue

M1

7

M2

22

E

10

Y

13

DN1

DN2

item number

13732

size

DN6-DN15 chrome

M1

7

M2

22

E

10

Y

13

DN1

DN2

item number

13725

size

DN20-DN32 black

M1

10

M2

31

E

15

Y

18

DN1

DN2

item number

13712

size

3 mm DN6-DN15 old model

M1

7

M2

22

E

10

Y

13

DN1

DN2

technical drawing for product

characteristics

color

blue, black, red, chrome

materials

general

product group

valves (accessories (valves))

ETIM class

EC011659 Accessories/spare parts for ball valve

brand

Broen

series

Ballofix

product type

B9098

UNSPS

40141607

scip

e78c0723-c6e6-479c-bcc1-e395a5461292

technical

min. medium temperature

-20 °C

max medium temperature

120 °C

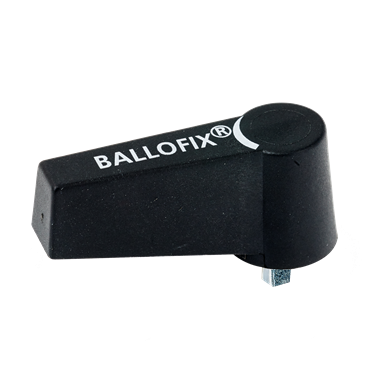

image for Diagram

diagram | png

Diagram

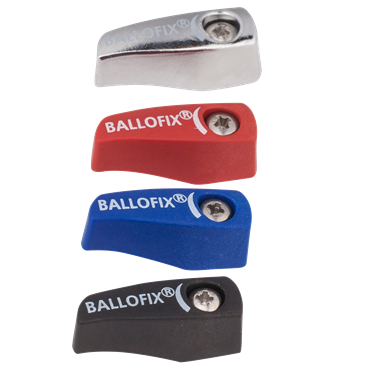

image for B9098

image | png

B9098

image for B9096

image | png

B9096

image for B9096

image | png

B9096

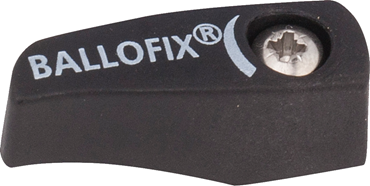

image for B9098-Black

image | png

B9098-Black

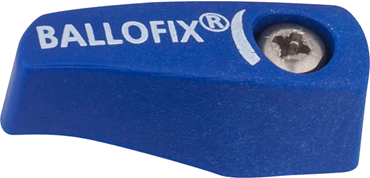

image for B9098-Blue

image | png

B9098-Blue

image for B9098-Chrome

image | png

B9098-Chrome

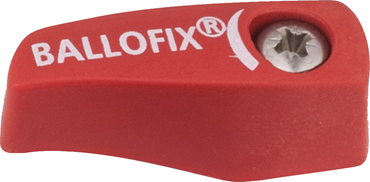

image for B9098-Red

image | png

B9098-Red

item number

carbon footprint (A-C) embodied carbon

data source

item number

13724

carbon footprint (A-C) embodied carbon

0.03kgCO2e

data source

TM65

item number

13728

carbon footprint (A-C) embodied carbon

0.03kgCO2e

data source

TM65

item number

13721

carbon footprint (A-C) embodied carbon

0.04kgCO2e

data source

TM65

item number

13729

carbon footprint (A-C) embodied carbon

0.03kgCO2e

data source

TM65

item number

13732

carbon footprint (A-C) embodied carbon

0.02kgCO2e

data source

TM65

item number

13725

carbon footprint (A-C) embodied carbon

0.04kgCO2e

data source

TM65

item number

13712

carbon footprint (A-C) embodied carbon

0.03kgCO2e

data source

TM65
