group: B9045
potable water
heating
cooling
commercial building
SITAC
GDV
STF
SINTEF
WRAS
ETA
code
size
dimensions
weight
packaging
gtin
code
size
d1
DN1
l1
z1
DN2
l2
z2
H1
Y
code
size
15xG1/2 (DN10R) Cr
d1
15.0
DN1
DN12
l1
29
z1
29
DN2
1/2" (DN15)
l2
35
z2
10
H1
24
Y
24
item

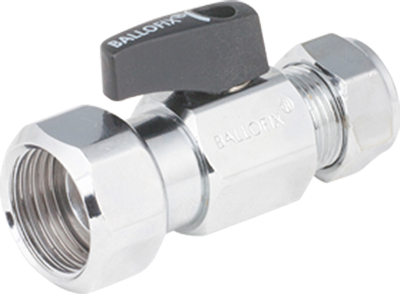

Broen Ballofix straight w handle Swivel x Compression
item number with gtin
B9045
manufacturer
BROEN
size
15xG1/2 (DN10R) Cr
weight
0.13 kg
color
chrome, black
materials
brass (CW625N (DZR))
finishing
chromed
shape
straight
connection type
compression, coupling nut
pressure rating (PN)
PN 10
sealing
EPDM
max operating pressure liquid
10 bar
min. medium temperature
-20 °C
max medium temperature
120 °C
product group
afsluiters
ETIM class
EC011343 Ball valveHS code
84818081
brand
Broen
series
Ballofix
product type
B9045
UNSPS
40141607
scip
e78c0723-c6e6-479c-bcc1-e395a5461292
label
value
label
etim-class
value
EC011343 Ball valvelabel
Surface protection housing
value
Chromium-plated
label
Material ball
value
Brass
label
Material spindle
value
Brass
label
Nominal diameter connection 1
value
DN 12
label
Outer pipe diameter connection 1
value
15mm
label
Outer pipe diameter connection 1 (imperial)
value
0.59"
label
Connection 1
value
Compression ring
label
With coupling connection 1
value
No
label
Nominal diameter connection 2
value
1/2 inch (15)
label
With coupling connection 2
value
No
label
Sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Article compression class
value
PN 10
label
Flange compression class
value
PN 10
label
With drain valve
value
No
label
With drain possibility (connection)
value
No
label
With non-return valve
value
No
label
With filter
value
No
label
With thermometer
value
No
label
Model
value
Straight
label
With insulation shell
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medium temperature (continuous)
value
-20°C - 120°C
label
Medium temperature (continuous) (imperial)
value
-4°F - 248°F
label
Medically clean
value
No
label
Grease-free
value
No
label
Operation
value
Lever handle
label
Housing construction
value
2-part
label
Full bore
value
No
label
Length of connection 1
value
28.8mm
label
Length of connection 1 (imperial)
value
1.13"
label
Working length connection 1
value
29.2mm
label
Working length connection 1 (imperial)
value
1.15"
label
Length of connection 2
value
35.4mm
label
Length of connection 2 (imperial)
value
1.39"
label
Working length connection 2
value
9.5mm
label
Working length connection 2 (imperial)
value
0.37"
label
Handle height
value
23.6mm
label
Handle height (imperial)
value
0.93"
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
code
carbon footprint (A1-A3) cradle-to-gate
carbon footprint (A-C) embodied carbon
carbon footprint (A-D) cradle-to-cradle
data source
code
carbon footprint (A1-A3) cradle-to-gate
0.72kgCO2e
carbon footprint (A-C) embodied carbon
0.76kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.74kgCO2e
data source
EPD
