Angle Horizontal Anti Theft

group: B4451/4 Anti Theft

The Pegler Belmont B4451/4 Anti-theft is an Angle pattern horizontal manual wheel handle radiator valve with a pre-installed locking ring which has been designed for use on commercial to residential properties including combi boiler installations. Belmont TRV benefits from a frost setting where the valve will open automatically at 7°C to ensure the system doesn’t freeze as well as a tamper resistant feature which is key operated as well as a ‘lift and lock’ mechanism to prevent accidental adjustment.
  • Control range of 11°C - 29°C
  • Range limiting locking customisable settings
  • Horizontal and vertical mounting
  • patented unique lift and lock tamper resistant mechanism
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    heating

    heating

    segments

    commercial building

    commercial building

    approvals

    BSI Kitemark

    BSI Kitemark

    item number

    size

    dimensions

    weight

    packaging

    gtin

    item number

    686091

    size

    15x1/2xR1/2

    dimensions

    156x54x61 mm

    weight

    0.39 kg

    packaging

    box (1 pce)

    gtin

    05022050224309

    item number

    size

    DN1

    z1

    d2

    DN2

    z2

    slw2

    item number

    686091

    size

    15x1/2xR1/2

    DN1

    1/2" (DN15)

    z1

    24

    d2

    15.0

    DN2

    DN12

    z2

    38

    slw2

    26

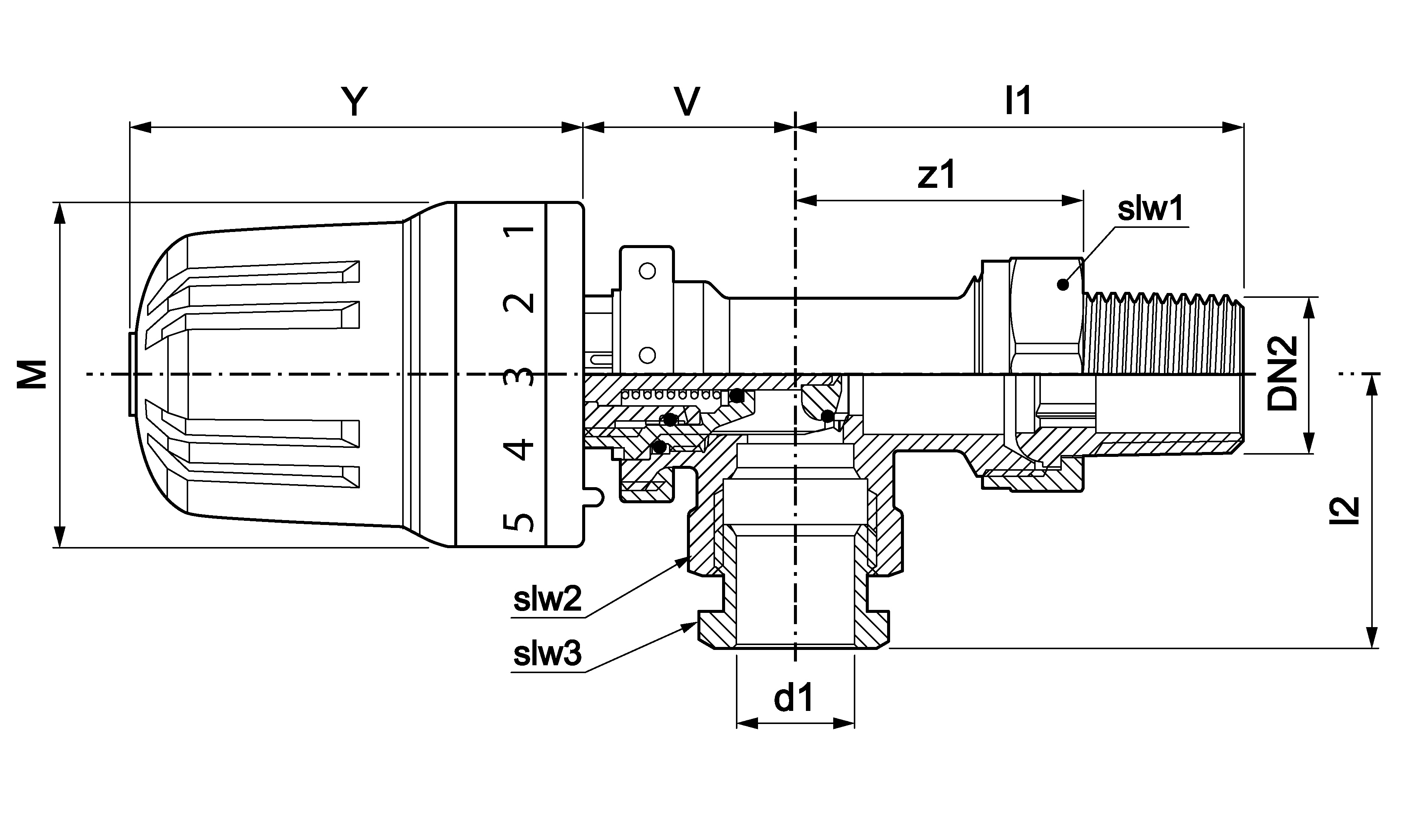

    technical drawing for product

    characteristics

    color

    chrome

    materials

    plastic, brass (CW617N, ABS)

    finishing

    polished chrome

    shape

    Elbow

    connection type

    Rp - female thread cylindrical (BSPT), R - male thread gas conical (BSPT)

    sealing

    EPDM

    general

    product group

    radiator valves (TRV)

    ETIM class

    EC010136 Radiator valve

    brand

    Pegler

    series

    Belmont TRV

    product type

    B4451/4

    technical

    max operating pressure liquid

    10 bar

    min. medium temperature

    4 °C

    max medium temperature

    120 °C

    peak medium temperature

    120 °C

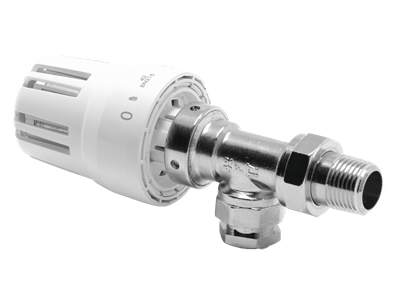

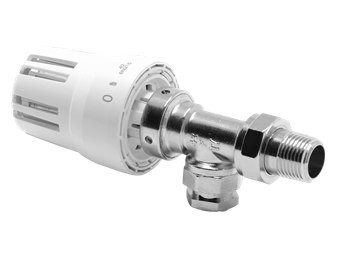

    image for B4451_4_Anti_Theft

    image | png

    B4451_4_Anti_Theft

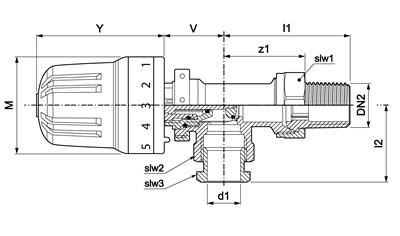

    image for Diagram

    diagram | jpg

    Diagram

    certifications | pdf

    BSI Kitemark Pegler Thermostatic radiator valves

    certifications | pdf

    Pegler Thermostatic radiator valves Keymark

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Brass

    label

    Size of pipe connection

    value

    1/2 inch (expired)

    label

    Operation

    value

    Manually operated

    label

    Suitable for single pipe system

    value

    No

    label

    Suitable for two pipe system

    value

    No

    label

    Working length connection 1

    value

    24mm

    label

    Working length connection 1 (imperial)

    value

    0.94"

    label

    Working length connection 2

    value

    38mm

    label

    Working length connection 2 (imperial)

    value

    1.5"

    label

    Height

    value

    61mm

    item number

    carbon footprint (A-C) embodied carbon

    data source

    item number

    686091

    carbon footprint (A-C) embodied carbon

    1.6kgCO2e

    data source

    TM65
