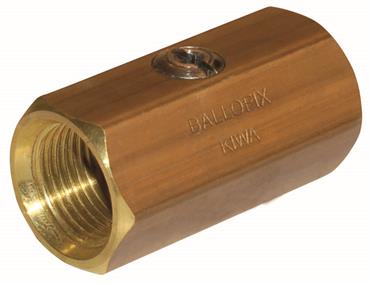

Broen Ballofix mini ball valve no handle (2 x female thread)

group: B3800

The B3800 Broen Ballofix mini ball valves are high quality, compact ball valves with high quality finishing. The design and materials used, guarantee smooth operation, even after several years of use. Broen Ballofix ball valves can be used without or with operating handles. The handles are available in various colours so that colour coding is possible. Due to the wide range, an optimal version is available for every application.
  • Broen Ballofix mini ball valves can be operated using a screwdriver or Ballofix handle
  • we recommend opening and closing Broen Ballofix ball valves twice a year & nbsp; to ensure optimal operation
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

ETA

ETA

GDV

GDV

KIWA

KIWA

SINTEF

SINTEF

SITAC

SITAC

STF

STF

WRAS

WRAS

item number

size

DN1

l1

z1

DN2

l2

z2

slw0

a

item number

13535

size

G1/2 Cr (DN15R)

DN1

1/2" (DN15)

l1

24

z1

12

DN2

1/2" (DN15)

l2

23

z2

11

slw0

25

a

90

item number

13532

size

G1/2" (DN15R)

DN1

1/2" (DN15)

l1

24

z1

12

DN2

1/2" (DN15)

l2

23

z2

11

slw0

25

a

90

item number

13573

size

G1" (DN20R)

DN1

1" (DN25)

l1

36

z1

17

DN2

1" (DN25)

l2

39

z2

20

slw0

40

a

90

technical drawing for product

characteristics

color

brass, chrome

materials

brass (CW625N (DZR))

finishing

chromed, none

shape

straight

connection type

G - female thread gas cylindrical (BSPP)

pressure rating (PN)

PN 10

sealing

EPDM

general

product group

valves (ball valves)

ETIM class

EC011343 Ball valve

HS code

84818081

brand

Broen

series

Ballofix

product type

B3800

UNSPS

40141607

scip

e78c0723-c6e6-479c-bcc1-e395a5461292

technical

max operating pressure liquid

10 bar

min. medium temperature

-20 °C

max medium temperature

120 °C

peak medium temperature

120 °C

image for Diagram

diagram | png

Diagram

image for B3800

image | png

B3800

image for B3800-Ms

image | jpg

B3800-Ms

certifications | pdf

Broen_Ballofix-WRAS_33343

certifications | pdf

Kiwa_Ballofix_00006271

certifications | pdf

WRAS_BALLOFIX_Spherical_Valves

label

value

label

ETIM class

label

Housing material

value

Brass

label

Material quality

value

Brass CW625N (CuZn35Pb1.5AlAs)

label

Material ball

value

Brass

label

Material spindle

value

Brass

label

Material primary spindle seal

value

Ethylene-propylene diene monomer rubber (EPDM)

label

Connection 1

value

Internal thread cylindrical BSPP-G (ISO 228-1)

label

With coupling connection 1

value

No

label

Connection 2

value

Internal thread cylindrical BSPP-G (ISO 228-1)

label

With coupling connection 2

value

No

label

Sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

Article compression class

value

PN 10

label

Flange compression class

value

PN 10

label

With drain valve

value

No

label

With drain possibility (connection)

value

No

label

With non-return valve

value

No

label

With filter

value

No

label

With thermometer

value

No

label

Model

value

Straight

label

With insulation shell

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medium temperature (continuous)

value

-20°C - 120°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 248°F

label

Medically clean

value

No

label

Grease-free

value

No

label

Operation

value

Screw slot

label

Housing construction

value

1-part

label

Full bore

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

item number

carbon footprint (A1-A3) cradle-to-gate

carbon footprint (A-C) embodied carbon

carbon footprint (A-D) cradle-to-cradle

data source

item number

13535

carbon footprint (A1-A3) cradle-to-gate

0.65kgCO2e

carbon footprint (A-C) embodied carbon

0.68kgCO2e

carbon footprint (A-D) cradle-to-cradle

0.67kgCO2e

data source

EPD

item number

13532

carbon footprint (A1-A3) cradle-to-gate

0.65kgCO2e

carbon footprint (A-C) embodied carbon

0.68kgCO2e

carbon footprint (A-D) cradle-to-cradle

0.67kgCO2e

data source

EPD

item number

13573

carbon footprint (A1-A3) cradle-to-gate

2.48kgCO2e

carbon footprint (A-C) embodied carbon

2.61kgCO2e

carbon footprint (A-D) cradle-to-cradle

2.58kgCO2e

data source

EPD
