Pegler ProFlow AVUE motoric actuator (DN40 - 50)

group: AVUE

The type AVUE electro motoric actuator modulating 0-10V with feedback, provides hydronic balancing in variable flow systems in order to ensure the optimum flow is achieved at all load conditions, in the terminal units. The actuator controlling the two-way valve inside the Pegler ProFlow 1500 PICV is connected to a room thermostat or a BMS system. By opening or closing the two-way valve in reference to the room temperature, the required temperature is achieved. De feedback function provides optimal integration in the building management.
  • compact, energy-efficient and durable
  • fast acting
  • including electronic position feedback
  • compatible with type 1500 Pegler ProFlow PICV
  • connection: M30x1,5
  • actuator stroke length 6.3mm
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    heating

    heating

    cooling

    cooling

    segments

    commercial building

    commercial building

    industry

    industry

    approvals

    no approvals available

    item number

    size

    dimensions

    weight

    packaging

    gtin

    item number

    15206

    size

    24V

    dimensions

    80x101x76

    weight

    0.48 kg

    packaging

    bag (1 pce)

    gtin

    05708537523218

    item number

    size

    item number

    15206

    size

    24V

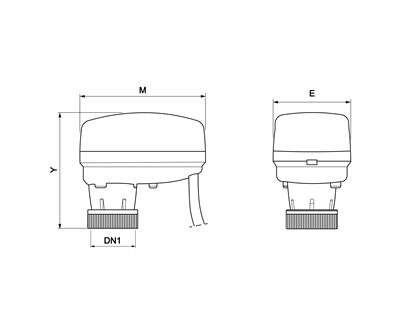

    technical drawing for product

    characteristics

    color

    white, black

    materials

    plastic

    finishing

    none

    general

    product group

    valves (dynamic balancing valves, electric)

    HS code

    85011010

    brand

    Pegler

    series

    Motoric Actuator

    product type

    AVUE06

    UNSPS

    40141609

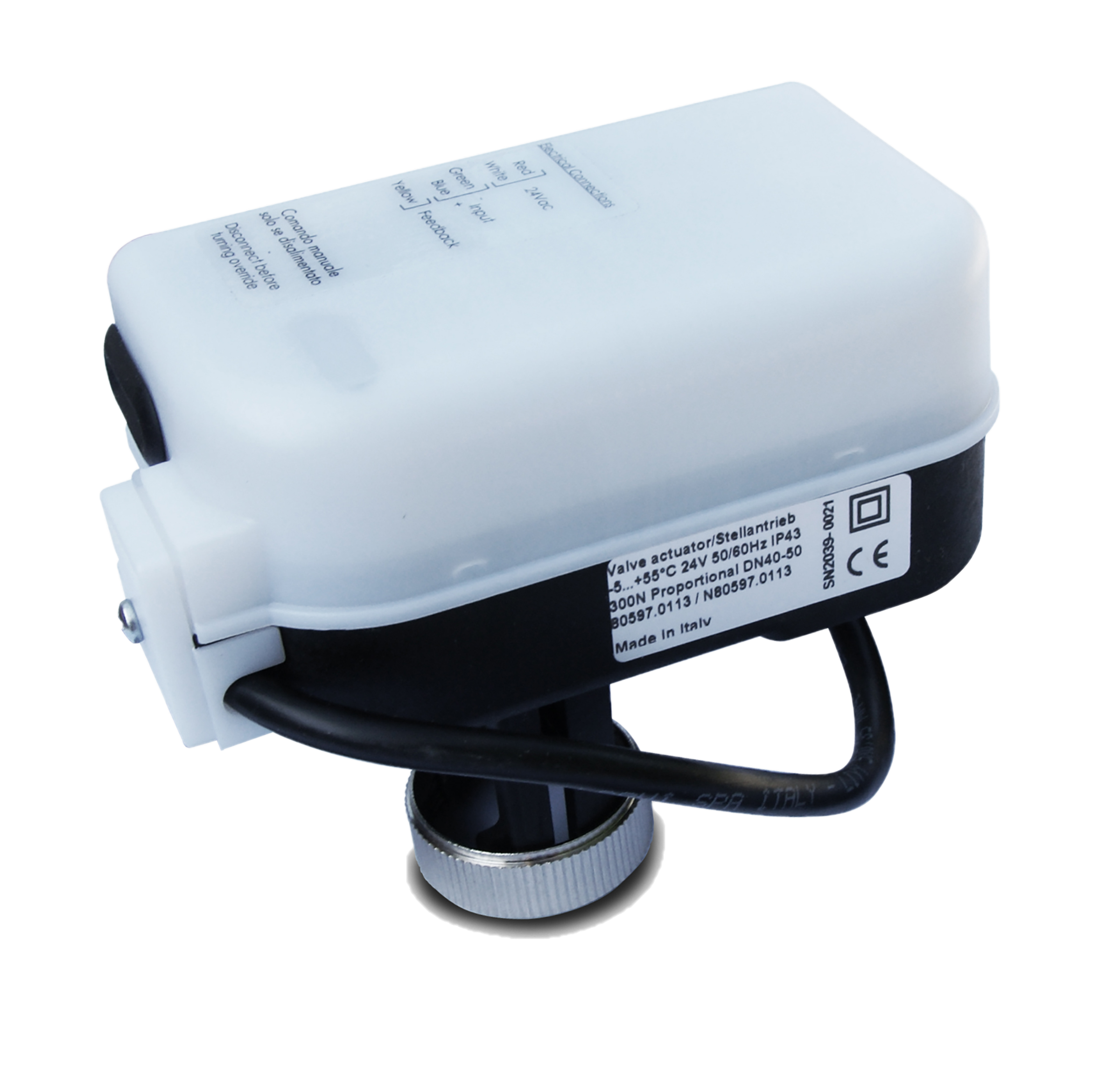

    image for 15206

    image | png

    15206

    image for Diagram

    diagram | jpg

    Diagram
