group: A86B

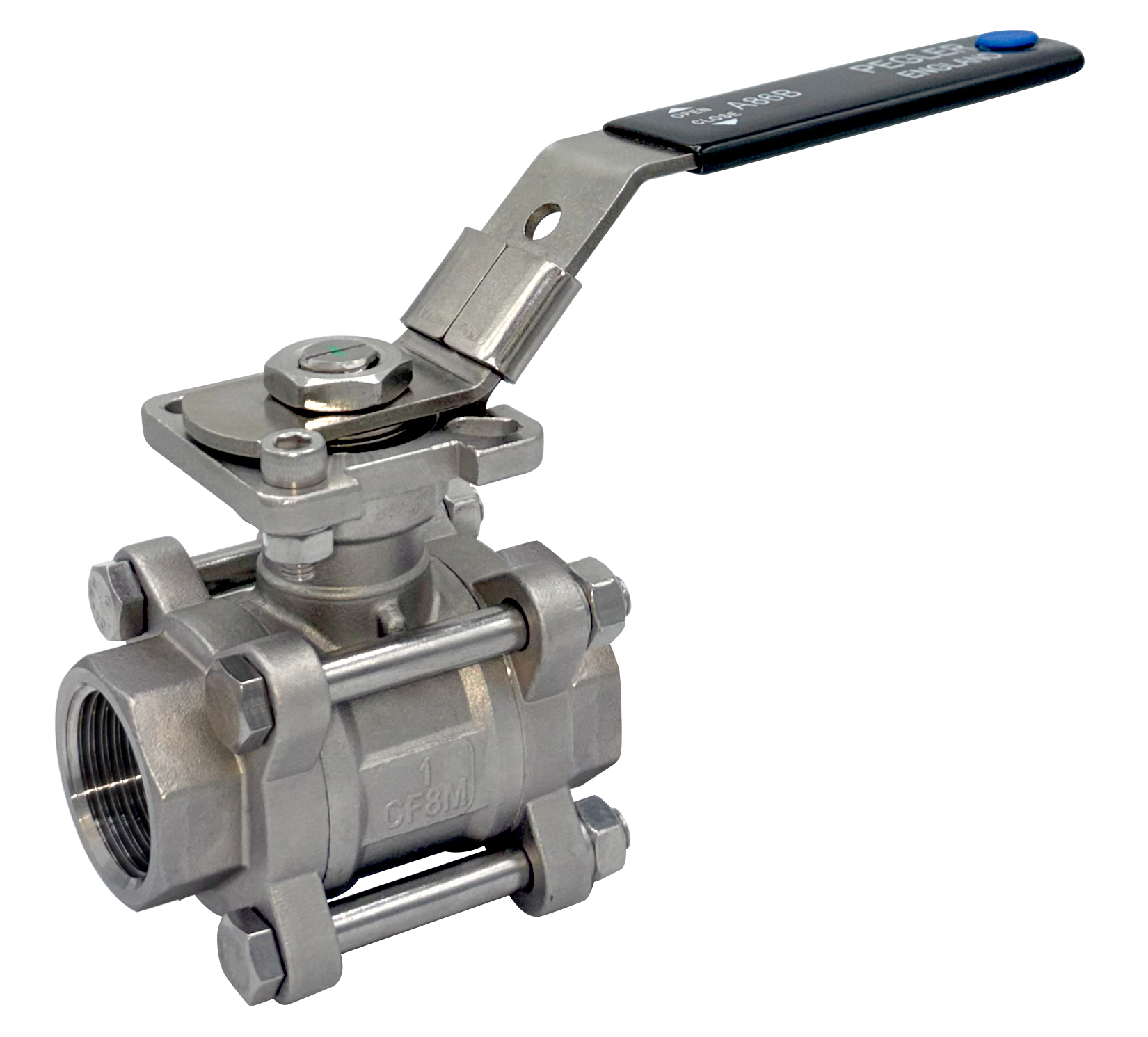

The A86b Stainless Steel, 3-Piece Full Port Ball Valve is a versatile and reliable solution designed to withstand challenging environments. Its 3-piece construction with enclosed fasteners ensures durability, while the full port and swing-out center section optimize fluid flow. With features such as pressure balanced solid ball, compression controlled spiral wound gaskets, and anti-blowout, one piece bottom entry stem, this valve offers enhanced safety and performance.
heating
cooling
commercial building
industry
datacenters
no approvals available
code
size
dimensions
weight
packaging
gtin
code
size
DN15
dimensions
175x51x102 mm
weight
0.6 kg
packaging
bag (1 pce)
gtin
05022050735195
code
size
DN20
dimensions
181x61x117 mm
weight
0.81 kg
packaging
bag (1 pce)
gtin
05022050735201
code
size
DN25
dimensions
205x68x156 mm
weight
1.25 kg
packaging
bag (1 pce)
gtin
05022050735287
code
size
DN32
dimensions
213x98x168 mm
weight
1.83 kg
packaging
bag (1 pce)
gtin
05022050735294
code
size
DN40
dimensions
245x98x168 mm
weight
2.75 kg
packaging
bag (1 pce)
gtin
05022050735300
code
size
DN50
dimensions
255x116x201 mm
weight
4.22 kg
packaging
bag (1 pce)
gtin
05022050738745

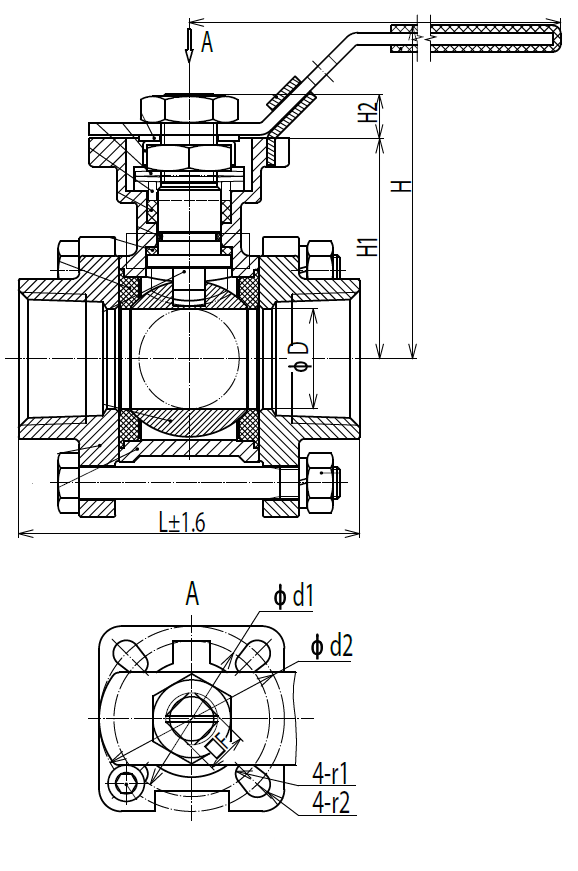

code
size
d1
DN1
l1
d2
DN2
l2
M2
H
h1
h2
D1
code
size
DN25
d1
33.7
DN1
DN25
l1
43
d2
33.7
DN2
DN25
l2
43
M2
162
H
93
h1
55
h2
11
D1
34
code
size
DN32
d1
42.4
DN1
DN32
l1
51
d2
42.4
DN2
DN32
l2
51
M2
162
H
98
h1
60
h2
11
D1
42
code
size
DN40
d1
48.3
DN1
DN40
l1
57
d2
48.3
DN2
DN40
l2
57
M2
188
H
109
h1
70
h2
14
D1
48
code
size
DN50
d1
60.3
DN1
DN50
l1
67
d2
60.3
DN2
DN50
l2
67
M2
188
H
124
h1
85
h2
14
D1
60
item

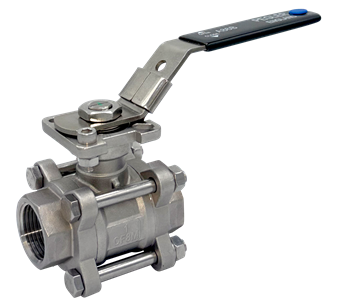

Pegler 3-piece ball valve Stainless Steel (2 x Buttweld Sch10)
item number with gtin
A86B
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
4.22 kg
dimensions
255x116x201 mm
color
stainless steel
materials
stainless steel (CF8 (1.4308))
finishing
none
shape
straight
connection type
weld
pressure rating (PN)
PN 63
sealing
PTFE
max operating pressure liquid
63 bar
min. medium temperature
-29 °C
max medium temperature
204 °C
product group
afsluiters (ball valves)
ETIM class
EC011343 Ball valveHS code
84813091
brand
Pegler
series
Ball Valve
product type
A86B
UNSPS
40141607
label
value
label
etim-class
value
EC011343 Ball valvelabel
Housing material
value
Stainless steel
label
Surface protection housing
value
None
label
Material ball seal
value
Polytetrafluoroethylene (PTFE)
label
Material ball
value
Stainless steel
label
Material spindle
value
Stainless steel
label
Material primary spindle seal
value
Polytetrafluoroethylene (PTFE)
label
Outer pipe diameter connection 1 (imperial)
value
0.84"
label
Connection 1
value
Welded end
label
With coupling connection 1
value
No
label
Outer pipe diameter connection 2 (imperial)
value
0.84"
label
Connection 2
value
Welded end
label
With coupling connection 2
value
No
label
Sealing
value
Polytetrafluoroethylene (PTFE)
label
Article compression class
value
PN 63
label
Flange compression class
value
PN 63
label
With drain valve
value
No
label
With drain possibility (connection)
value
No
label
With non-return valve
value
No
label
With filter
value
No
label
With thermometer
value
No
label
Model
value
Straight
label
With insulation shell
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medium temperature (continuous)
value
-29°C - 204°C
label
Medium temperature (continuous) (imperial)
value
-20.2°F - 399.2°F
label
Medically clean
value
No
label
Grease-free
value
No
label
Operation
value
Lever handle
label
Housing construction
value
3-part
label
Full bore
value
Yes
label
Length of connection 1 (imperial)
value
1.32"
label
Angle of the valve
value
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
