group: 925
the type 925, Pegler Proflow differential pressure controller is for the use in heating and cooling equipment in a GVAC application, it ensures a constant differential pressure control across motorised and static balancing valves to achieve the desired flow distribution in a system and eliminates noise nuisance cause by a high differential pressure across radiator thermostats, two-way control valves and other system components. This valve is available in sizes DN15 – DN50
heating
cooling
industry
commercial building
no approvals available
code
size
dimensions
weight
packaging
gtin
code
size
Rp1/2" (DN15)
dimensions
110x60x70 mm
weight
0.63 kg
packaging
-
gtin
05708537470000
code
size
Rp3/4" (DN20)
dimensions
122x71x93 mm
weight
0.84 kg
packaging
-
gtin
05708537470048
code
size
Rp1" (DN25)
dimensions
169x84x113 mm
weight
1.75 kg
packaging
-
gtin
05708537476583
code
size
Rp1 1/4" (DN32)
dimensions
177x96x120 mm
weight
1.96 kg
packaging
bag (1 pce)
gtin
05708537476682
code
size
Rp1 1/2" (DN40)
dimensions
194x100x138 mm
weight
3 kg
packaging
box (1 pce)
gtin
05708537476736
code
size
Rp2" (DN50)
dimensions
213x136x138 mm
weight
4.2 kg
packaging
box (1 pce)
gtin
05708537520811
item

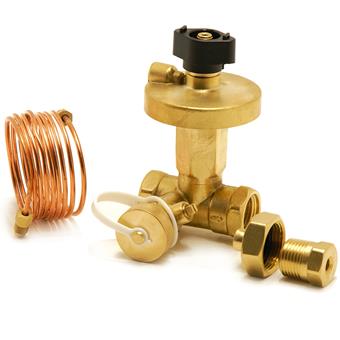

Pegler ProFlow Delta DPCV commissioning valve (2 x female thread)
item number with gtin
925
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
4.2 kg
dimensions
213x136x138 mm
color
brass
materials
brass (CW602N (DZR))
finishing
none
shape
straight
connection type
Rp - female thread cylindrical (BSPT)
pressure rating (PN)
PN 25
sealing
EPDM
max operating pressure liquid
25 bar
min. medium temperature
-20 °C
max medium temperature
120 °C
peak medium temperature
120 °C
product group
afsluiters (pressure reducing valves)
ETIM class
EC011463 Regulating valvebrand
Pegler
series
ProFlow DP
product type
925
UNSPS
41112411
label
value
label
etim-class
label
Housing material
value
Brass
label
Material quality
value
CuZn36Pb2As (CW602N)
label
Surface protection
value
Untreated
label
Connection 1
value
Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
label
With coupling connection 1
value
No
label
Connection 2
value
Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
label
With coupling connection 2
value
No
label
Article compression class
value
PN 25
label
Flange compression class
value
PN 25
label
Suitable for tap water
value
No
label
Suitable for hot tap water
value
No
label
Suitable for central heating water
value
Yes
label
Max. operating pressure
value
25bar
label
Max. operating pressure (imperial)
value
362.59psi
label
Medium temperature (continuous)
value
-20°C - 120°C
label
Medium temperature (continuous) (imperial)
value
-4°F - 248°F
label
Suitable for manual operation
value
No
label
Thermostatic
value
No
label
With drain valve
value
Yes
label
With thermometer
value
No
label
With position indicator
value
No
label
Height operating element
value
13mm
label
Height operating element (imperial)
value
0.51"
label
Spindle angle
value
90°
label
Spindle angle (imperial)
value
3.54"
label
With insulation
value
No
