Pegler ProFlow Dynamic PICV commissioning valve (2 x flange)

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

14989

size

DN65/80 LF

dimensions

224x190x347 mm

weight

15.62 kg

packaging

unpackaged (1 pce)

gtin

04018919091930

item number

14992

size

DN65/80 SF

dimensions

224x190x347 mm

weight

15.52 kg

packaging

unpackaged (1 pce)

gtin

04018919091947

item number

14993

size

DN65/80 HF

dimensions

224x190x347 mm

weight

15 kg

packaging

unpackaged (1 pce)

gtin

04018919091954

item number

14994

size

DN80/100 LF

dimensions

320x236x427 mm

weight

31 kg

packaging

bag (1 pce)

gtin

04018919091961

item number

14995

size

DN80/100 SF

dimensions

320x236x427 mm

weight

32.25 kg

packaging

unpackaged (1 pce)

gtin

04018919091978

item number

14996

size

DN80/100 HF

dimensions

320x236x427 mm

weight

30 kg

packaging

unpackaged (1 pce)

gtin

04018919091985

item number

14997

size

DN125/150 SF

dimensions

422x270x523 mm

weight

60 kg

packaging

unpackaged (1 pce)

gtin

04018919091992

item number

14998

size

DN125/150 HF

dimensions

422x270x523 mm

weight

61 kg

packaging

unpackaged (1 pce)

gtin

04018919092005

item number

size

d1

DN1

l1

d2

DN2

l2

b2

M1

M2

H

h2

Y

V

U

a

item number

14989

size

DN65/80 LF

d1

190.0

DN1

DN65

l1

112

d2

190.0

DN2

DN65

l2

112

b2

22

M1

37

M2

115

H

252

h2

52

Y

132

V

121

U

92

a

90

item number

14992

size

DN65/80 SF

d1

190.0

DN1

DN65

l1

112

d2

190.0

DN2

DN65

l2

112

b2

22

M1

37

M2

115

H

252

h2

52

Y

132

V

121

U

92

a

90

item number

14993

size

DN65/80 HF

d1

190.0

DN1

DN65

l1

112

d2

190.0

DN2

DN65

l2

112

b2

22

M1

37

M2

115

H

252

h2

52

Y

132

V

121

U

92

a

90

item number

14994

size

DN80/100 LF

d1

236.0

DN1

DN80

l1

160

d2

236.0

DN2

DN80

l2

160

b2

30

M1

37

M2

115

H

292

h2

52

Y

132

V

136

U

132

a

90

item number

14995

size

DN80/100 SF

d1

236.0

DN1

DN80

l1

160

d2

236.0

DN2

DN80

l2

160

b2

30

M1

37

M2

115

H

292

h2

52

Y

132

V

136

U

132

a

90

item number

14996

size

DN80/100 HF

d1

236.0

DN1

DN80

l1

160

d2

236.0

DN2

DN80

l2

160

b2

30

M1

37

M2

115

H

292

h2

52

Y

132

V

136

U

132

a

90

item number

14997

size

DN125/150 SF

d1

270.0

DN1

DN125

l1

211

d2

270.0

DN2

DN125

l2

211

b2

35

M1

37

M2

115

H

343

h2

52

Y

132

V

145

U

172

a

90

item number

14998

size

DN125/150 HF

d1

270.0

DN1

DN125

l1

211

d2

270.0

DN2

DN125

l2

211

b2

35

M1

37

M2

115

H

343

h2

52

Y

132

V

145

U

172

a

90

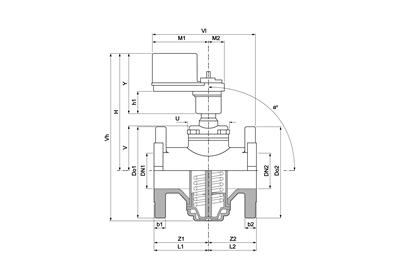

technical drawing for product

characteristics

color

grey

materials

cast iron (ASTM A536 65-45-12)

finishing

none

shape

straight (0º)

connection type

flange

pressure rating (PN)

PN 40

sealing

EPDM

general

product group

valves (dynamic balancing valves)

ETIM class

EC011463 Regulating valve

brand

Pegler

series

ProFlow Dynamic

product type

902XS

UNSPS

40141609

technical

max operating pressure liquid

16 bar

min. medium temperature

-20 °C

max medium temperature

120 °C

peak medium temperature

120 °C

Kv-value

value depends on the item view items

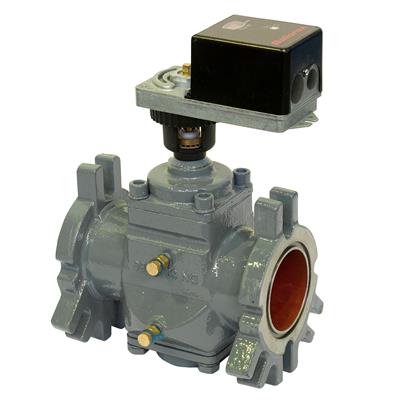

image for 902XS

image | jpg

902XS

image for Diagram

diagram | jpg

Diagram

label

value

label

ETIM class

label

Housing material

value

Cast iron

label

Surface protection

value

Untreated

label

Connection 1

value

Flange

label

With coupling connection 1

value

No

label

Connection 2

value

Flange

label

With coupling connection 2

value

No

label

Article compression class

value

PN 40

label

Flange compression class

value

PN 40

label

Suitable for tap water

value

No

label

Suitable for hot tap water

value

No

label

Suitable for central heating water

value

Yes

label

Max. operating pressure

value

16bar

label

Max. operating pressure (imperial)

value

232.06psi

label

Medium temperature (continuous)

value

-20°C - 120°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 248°F

label

Suitable for manual operation

value

No

label

Thermostatic

value

No

label

Hydraulic balance control

value

Dynamic

label

With drain valve

value

No

label

With thermometer

value

No

label

With position indicator

value

No

label

Height operating element

value

132mm

label

Height operating element (imperial)

value

5.2"

label

Spindle angle

value

90°

label

Spindle angle (imperial)

value

3.54"

label

With insulation

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

14992

carbon footprint (A-C) embodied carbon

53.53kgCO2e

data source

TM65

item number

14997

carbon footprint (A-C) embodied carbon

210.61kgCO2e

data source

TM65
