Pegler ProFlow Venturi FODRV commissioning valve (2 x flange)

group: 900XSS

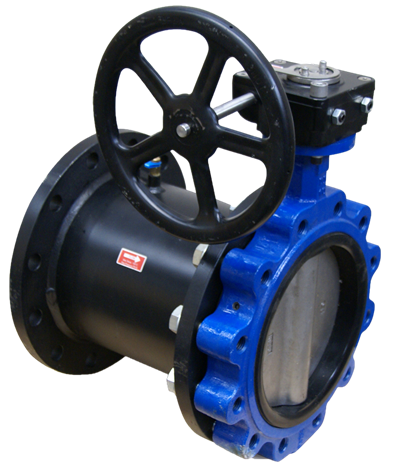

The Pegler Proflow 900XSS is a Venturi commissioning valve with flanged connection technology, a cast iron butterfly valve and steel venturi pipe. 900XSS valves are intended for the isolation and balancing of pipework and equipment in HVAC applications the valve is gear operated and has a quarter turn operation by a wheel handle. It incorporates a double regulating feature for isolation and the setting of a maximum flow rate. The valve has measuring points which using a manometer or venturi flow meter the flow can be verified and set. Available in Sizes DN65 to DN300.

  • Venturi orifice
  • Includes test points
  • geared quarter turn wheel handle
  • flanged connection technology
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later
