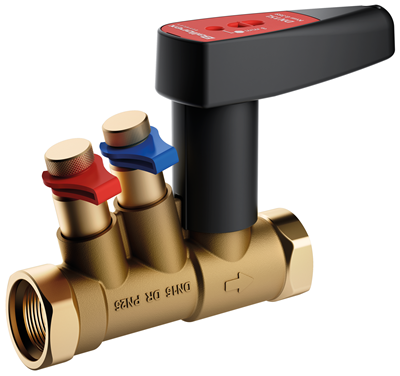

Pegler ProFlow Venturi FODRV commissioning valve (2 x female thread)

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

WRAS

WRAS

item number

size

dimensions

weight

packaging

gtin

item number

15008

size

Rp1/2" (DN15) ULF

dimensions

141x27x91 mm

weight

0.43 kg

packaging

bag (1 pce)

gtin

05708537443295

item number

15006

size

Rp1/2" (DN15) LF

dimensions

141x27x91 mm

weight

0.43 kg

packaging

bag (1 pce)

gtin

05708537328882

item number

15000

size

Rp1/2" (DN15) SF

dimensions

141x27x91 mm

weight

0.43 kg

packaging

-

gtin

05708537328899

item number

16404

size

Rp1/2" (DN15) HF

dimensions

141x27x91 mm

weight

0.44 kg

packaging

bag (1 pce)

gtin

05708537328875

item number

15007

size

Rp3/4" (DN20) LF

dimensions

144x34x98 mm

weight

0.53 kg

packaging

bag (1 pce)

gtin

05708537330656

item number

15001

size

Rp3/4" (DN20) SF

dimensions

144x34x98 mm

weight

0.52 kg

packaging

bag (1 pce)

gtin

05708537330670

item number

16405

size

Rp3/4" (DN20) HF

dimensions

144x34x98 mm

weight

0.52 kg

packaging

bag (1 pce)

gtin

05708537330632

item number

15002

size

Rp1" (DN25) SF

dimensions

150x41x106 mm

weight

0.68 kg

packaging

bag (1 pce)

gtin

05708537332612

item number

15181

size

Rp1" (DN25) HF

dimensions

150x41x106 mm

weight

0.67 kg

packaging

bag (1 pce)

gtin

05708537332582

item number

15003

size

Rp1 1/4" (DN32) HF

dimensions

208x50x138 mm

weight

1.33 kg

packaging

bag (1 pce)

gtin

05708537347456

item number

15004

size

Rp1 1/2" (DN40) HF

dimensions

213x57x145 mm

weight

1.59 kg

packaging

bag (1 pce)

gtin

05708537347524

item number

15005

size

Rp2" (DN50) HF

dimensions

221x70x160 mm

weight

2.33 kg

packaging

box (1 pce)

gtin

05708537347579

item number

size

d1

DN1

l1

z1

slw1

DN2

l2

z2

slw2

M1

M2

Y

V

U

a

item number

15008

size

Rp1/2" (DN15) ULF

d1

21.3

DN1

1/2" (DN15)

l1

66

z1

51

slw1

27

DN2

1/2" (DN15)

l2

28

z2

9

slw2

27

M1

18

M2

75

Y

62

V

18

U

23

a

90

item number

15006

size

Rp1/2" (DN15) LF

d1

21.3

DN1

1/2" (DN15)

l1

66

z1

51

slw1

27

DN2

1/2" (DN15)

l2

28

z2

9

slw2

27

M1

18

M2

75

Y

62

V

18

U

23

a

90

item number

15000

size

Rp1/2" (DN15) SF

d1

21.3

DN1

1/2" (DN15)

l1

66

z1

51

slw1

27

DN2

1/2" (DN15)

l2

28

z2

9

slw2

27

M1

18

M2

75

Y

62

V

18

U

23

a

90

item number

16404

size

Rp1/2" (DN15) HF

d1

21.3

DN1

1/2" (DN15)

l1

66

z1

51

slw1

27

DN2

1/2" (DN15)

l2

28

z2

9

slw2

27

M1

18

M2

75

Y

62

V

18

U

23

a

90

item number

15007

size

Rp3/4" (DN20) LF

d1

26.9

DN1

3/4" (DN20)

l1

69

z1

53

slw1

34

DN2

3/4" (DN20)

l2

31

z2

10

slw2

34

M1

18

M2

75

Y

62

V

18

U

23

a

90

item number

15001

size

Rp3/4" (DN20) SF

d1

26.9

DN1

3/4" (DN20)

l1

69

z1

53

slw1

34

DN2

3/4" (DN20)

l2

31

z2

10

slw2

34

M1

18

M2

75

Y

62

V

18

U

23

a

90

item number

16405

size

Rp3/4" (DN20) HF

d1

26.9

DN1

3/4" (DN20)

l1

69

z1

53

slw1

34

DN2

3/4" (DN20)

l2

31

z2

10

slw2

34

M1

18

M2

75

Y

62

V

18

U

23

a

90

item number

15002

size

Rp1" (DN25) SF

d1

33.7

DN1

1" (DN25)

l1

75

z1

56

slw1

41

DN2

1" (DN25)

l2

37

z2

15

slw2

41

M1

18

M2

75

Y

62

V

18

U

23

a

90

item number

15181

size

Rp1" (DN25) HF

d1

33.7

DN1

1" (DN25)

l1

75

z1

56

slw1

41

DN2

1" (DN25)

l2

37

z2

15

slw2

41

M1

18

M2

75

Y

62

V

18

U

23

a

90

item number

15003

size

Rp1 1/4" (DN32) HF

d1

42.4

DN1

1 1/4" (DN32)

l1

86

z1

64

slw1

50

DN2

1 1/4" (DN32)

l2

44

z2

16

slw2

50

M1

20

M2

122

Y

84

V

25

U

23

a

90

item number

15004

size

Rp1 1/2" (DN40) HF

d1

48.3

DN1

1 1/2" (DN40)

l1

91

z1

70

slw1

57

DN2

1 1/2" (DN40)

l2

49

z2

19

slw2

57

M1

20

M2

122

Y

84

V

25

U

23

a

90

item number

15005

size

Rp2" (DN50) HF

d1

60.3

DN1

2" (DN50)

l1

99

z1

73

slw1

70

DN2

2" (DN50)

l2

57

z2

23

slw2

70

M1

20

M2

122

Y

84

V

25

U

23

a

90

technical drawing for product

characteristics

color

brass

materials

brass (CW602N (DZR))

finishing

none

shape

straight (0º)

connection type

Rp - female thread cylindrical (BSPT)

pressure rating (PN)

PN 25

sealing

EPDM, PTFE

general

product group

valves (static balancing valves)

ETIM class

EC011463 Regulating valve

HS code

84818081

brand

Pegler

series

ProFlow Static Venturi

product type

900S

UNSPS

40141609

technical

max operating pressure liquid

25 bar

min. medium temperature

-10 °C

max medium temperature

150 °C

peak medium temperature

150 °C

Kvs-value

Kv-value

image for B6601

image | png

B6601

image for Diagram

diagram | png

Diagram

certifications | pdf

Ballorex 900S ProFlow Venturi FODRV - WRAS

certifications | pdf

Pegler ProFlow 900S WRAS

certifications | pdf

WRAS_900S

label

value

label

ETIM class

label

Housing material

value

Brass

label

Material quality

value

CuZn36Pb2As (CW602N)

label

Surface protection

value

Untreated

label

Connection 1

value

Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)

label

With coupling connection 1

value

No

label

Connection 2

value

Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)

label

With coupling connection 2

value

No

label

Article compression class

value

PN 25

label

Flange compression class

value

PN 25

label

Suitable for tap water

value

No

label

Suitable for hot tap water

value

No

label

Suitable for central heating water

value

Yes

label

Max. operating pressure

value

25bar

label

Max. operating pressure (imperial)

value

362.59psi

label

Medium temperature (continuous)

value

-10°C - 150°C

label

Medium temperature (continuous) (imperial)

value

14°F - 302°F

label

Suitable for manual operation

value

No

label

Thermostatic

value

No

label

Hydraulic balance control

value

Static

label

With drain valve

value

No

label

With thermometer

value

No

label

With position indicator

value

Yes

label

Spindle angle

value

90°

label

Spindle angle (imperial)

value

3.54"

label

With insulation

value

No
