Concealed Chromium Plated Brass Stopvalve

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

segments

commercial building

commercial building

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

510100

size

Rp1/2" Cr

dimensions

135x75x75 mm

weight

0.4 kg

packaging

box (1 pce)

gtin

05013866006418

item number

510101

size

Rp3/4" Cr

dimensions

135x75x75 mm

weight

0.46 kg

packaging

box (1 pce)

gtin

05013866006425

item number

size

DN1

l1

z1

slw1

DN2

l2

z2

slw2

M

Y

V

U

item number

510100

size

Rp1/2" Cr

DN1

1/2" (DN15)

l1

27

z1

13

slw1

25

DN2

1/2" (DN15)

l2

27

z2

13

slw2

25

M

44

Y

36

V

16

U

20

item number

510101

size

Rp3/4" Cr

DN1

3/4" (DN20)

l1

30

z1

15

slw1

32

DN2

3/4" (DN20)

l2

30

z2

15

slw2

32

M

44

Y

35

V

13

U

21

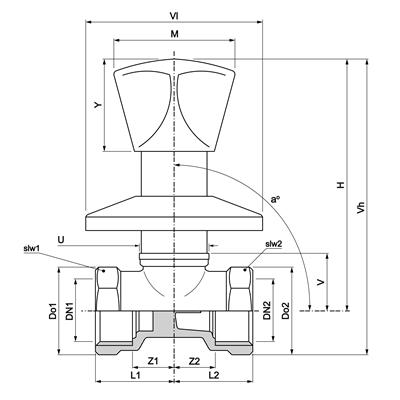

technical drawing for product

characteristics

color

chrome

materials

brass (CW617N)

finishing

chromed

shape

straight (0º)

connection type

Rp - female thread cylindrical (BSPT)

pressure rating (PN)

PN 16

sealing

NBR (Nitrile)

general

product group

valves

HS code

84818099

brand

Pegler

series

Stop Valve

product type

89

UNSPS

40141613

technical

max operating pressure liquid

16 bar

max medium temperature

85 °C

peak medium temperature

85 °C

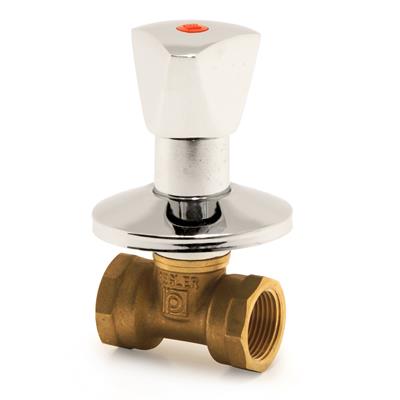

image for 89
