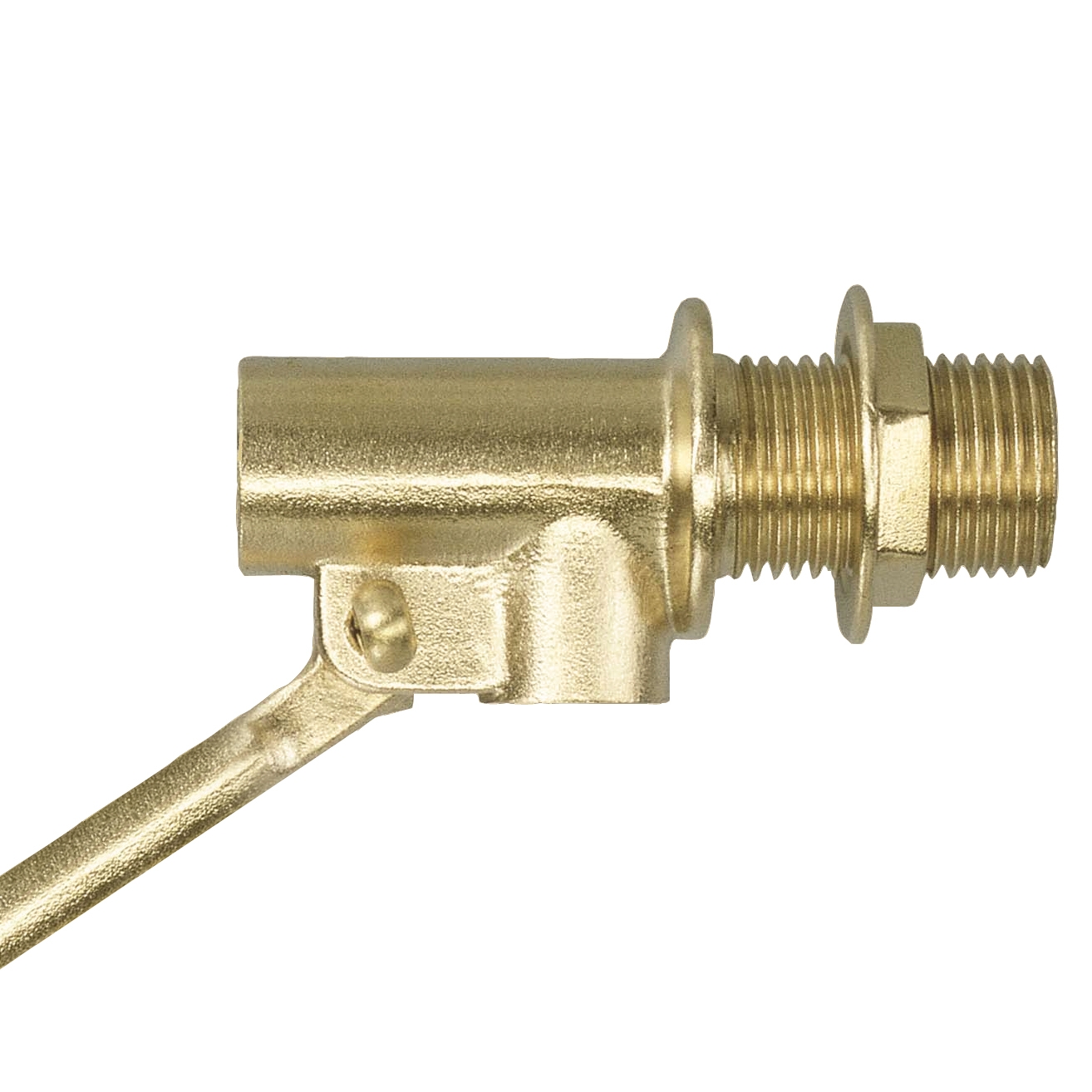

Pegler float valve (2 x female thread)

group: 855-Z

The Prestex 855 is a float valve MOH portsmouth pattern for high pressure with a long parallel male thread with back nut. By using Prestex in your piping system you can install in easy to use heat free system. Prestex provides a piping suitable for domestic and light commercial applications.

  • No need for use of naked flames
  • Can be used on wet pipework
  • Joints can be dismounted without adversely affecting performance
  • Provided with all relevant approvals
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

DN1

l1

slw1

item number

518017

size

G1/2"

DN1

1/2" (DN15)

l1

48

slw1

13

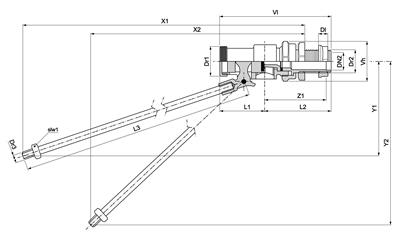

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

straight (0º)

connection type

G - male thread gas cylindrical (BSPP)

pressure rating (PN)

PN 16

sealing

EPDM

general

product group

valves (float valves)

ETIM class

EC010142 Flushing reservoir float valve

HS code

84818019

brand

Pegler

series

Float Valve

product type

855-Z

UNSPS

40141610

label

value

label

Material of connection

value

Brass

label

Connection

value

External thread

label

Size of threaded connection (inch)

value

1/2 inch

label

Eccentric connection

value

No

label

Max. pressure

value

14bar

label

Max. pressure (imperial)

value

203.05psi

label

Max. medium temperature (continuous)

value

85°C

label

Max. medium temperature (continuous) (imperial)

value

185°F

label

Height

value

40mm

label

Width

value

10mm

label

Depth

value

220mm

label

KIWA certified

value

No
