Draincock

group: 838

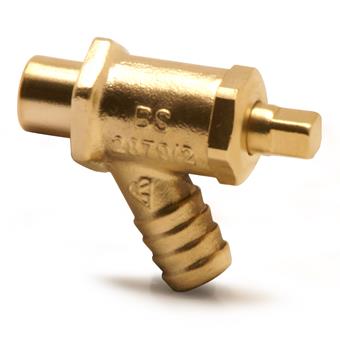

The Prestex 838 is a brass draincock with male insert for soldered and compression fittings. By using Prestex in your piping system you can install in easy to use heat free system. Prestex provides a piping suitable for domestic and light commercial applications.

  • No need for use of naked flames
  • Can be used on wet pipework
  • Joints can be dismounted without adversely affecting performance
  • Provided with all relevant approvals
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

approvals

BSI Kitemark

BSI Kitemark

item number

size

d1

DN1

l1

z1

slw1

l2

slw2

a

item number

545007

size

15

d1

15.0

DN1

DN15

l1

18

z1

5

slw1

25

l2

41

slw2

21

a

55

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

straight (0º)

connection type

solder, hose connector

pressure rating (PN)

PN 20

sealing

EPDM

general

product group

valves (fill and drain valves)

ETIM class

EC010985 Drain valve (radiator and tap water)

HS code

84818019

brand

Pegler

series

Draincock

product type

838

UNSPS

40141654

label

value

label

Connection 2

value

Hose pillar

label

Max. medium temperature (continuous)

value

120°C

label

Max. medium temperature (continuous) (imperial)

value

248°F

label

Surface protection

value

Untreated

label

Operation

value

Key

label

Suitable for tap water

value

Yes

label

Suitable for central heating water

value

Yes

label

KIWA certified

value

No
