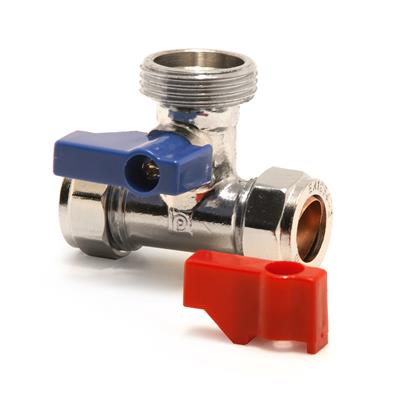

group: 809T
potable water
heating
commercial building
WRAS
item number
size
weight
dimensions
packaging
gtin
item number
size
15xG3/4"x15
weight
0.13 kg
dimensions
60x25x45 mm
packaging
box (20 pce)
gtin
05013866007408

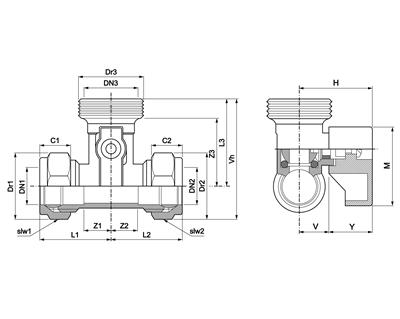

item number
size
DN1
l1
z1
slw1
DN2
l2
z2
DN3
l3
z3
slw3
M
Y
V
D1
item number
524010
size
15xG3/4"x15
DN1
DN15
l1
28
z1
14
slw1
25
DN2
DN15
l2
28
z2
14
DN3
DN20
l3
35
z3
27
slw3
25
M
31
Y
15
V
13
D1
25
color
chrome
materials
brass (CW617N)
finishing
chromed
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
shape
T-piece (0º)
connection type
compression, G - male thread gas cylindrical (BSPP)
pressure rating (PN)
PN 16
sealing
NBR (Nitrile)
product group
valves (stop valves)
ETIM class
EC011343 Ball valve
HS code
84818019
brand
Pegler
series
Service Valve
product type
809T
UNSPS
40141607
label
value
label
ETIM class
value
label
Housing material
value
Brass
label
Material quality
value
CuZn40Pb2 (CW617N)
label
Surface protection housing
value
Chromium-plated
label
Material ball
value
Brass
label
Material spindle
value
Brass
label
Material primary spindle seal
value
NBR (nitrile rubber)
label
Nominal diameter connection 1
value
DN 15
label
Connection 1
value
Compression ring
label
With coupling connection 1
value
No
label
Nominal diameter connection 2
value
DN 15
label
Connection 2
value
External thread cylindrical BSPP-G (ISO 228-1)
label
With coupling connection 2
value
No
label
Sealing
value
NBR (nitrile rubber)
label
Article compression class
value
PN 16
label
Flange compression class
value
PN 16
label
With drain valve
value
No
label
With drain possibility (connection)
value
No
label
With non-return valve
value
No
label
With filter
value
No
label
With thermometer
value
No
label
With insulation shell
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medium temperature (continuous)
value
30°C - 120°C
label
Medium temperature (continuous) (imperial)
value
86°F - 248°F
label
Medically clean
value
No
label
Grease-free
value
No
label
Housing construction
value
1-part
label
Full bore
value
Yes
label
Length of connection 1
value
28mm
label
Length of connection 1 (imperial)
value
1.1"
label
Working length connection 1
value
14mm
label
Working length connection 1 (imperial)
value
0.55"
label
Length of connection 2
value
28mm
label
Length of connection 2 (imperial)
value
1.1"
label
Working length connection 2
value
14mm
label
Working length connection 2 (imperial)
value
0.55"
label
Handle height
value
15mm
label
Handle height (imperial)
value
0.59"
label
Angle of the valve
value
0°
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
