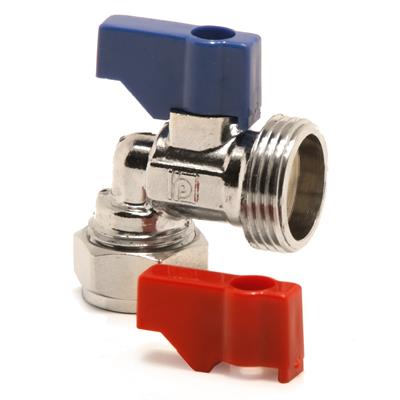

Chromium Plated Angle Pattern Brass Washing Machine Tap

group: 809B

The Prestex 809B is a chrome plated angle pattern washing machine tap for hot or cold water with a copper compression end and male iron parallel thread. By using Prestex in your piping system you can install in easy to use heat free system. Prestex provides a piping suitable for domestic and light commercial applications.

  • No need for use of naked flames
  • Can be used on wet pipework
  • Joints can be dismounted without adversely affecting performance
  • Provided with all relevant approvals
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

segments

commercial building

commercial building

approvals

WRAS

WRAS

item number

size

DN1

l1

z1

slw1

DN2

l2

z2

M

Y

V

D1

angle

item number

524009

size

15xG3/4"

DN1

DN15

l1

26

z1

9

slw1

25

DN2

DN15

l2

20

z2

12

M

31

Y

15

V

13

D1

26

angle

90

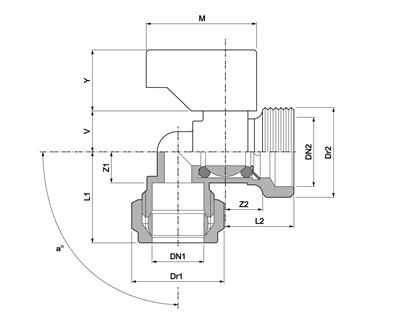

technical drawing for product

characteristics

color

chrome

materials

brass (CW617N)

finishing

chromed

shape

Elbow (90º)

connection type

compression, G - male thread gas cylindrical (BSPP)

pressure rating (PN)

PN 16

sealing

NBR (Nitrile)

general

product group

valves (stop valves)

ETIM class

EC011343 Ball valve

HS code

84818019

brand

Pegler

series

Service Valve

product type

809B

UNSPS

40141607

label

value

label

ETIM class

label

Housing material

value

Brass

label

Material quality

value

CuZn40Pb2 (CW617N)

label

Surface protection housing

value

Chromium-plated

label

Material ball

value

Brass

label

Material spindle

value

Brass

label

Material primary spindle seal

value

NBR (nitrile rubber)

label

Nominal diameter connection 1

value

DN 15

label

Connection 1

value

Compression ring

label

With coupling connection 1

value

No

label

Nominal diameter connection 2

value

DN 15

label

Connection 2

value

External thread cylindrical BSPP-G (ISO 228-1)

label

With coupling connection 2

value

No

label

Sealing

value

NBR (nitrile rubber)

label

Article compression class

value

PN 16

label

Flange compression class

value

PN 16

label

With drain valve

value

No

label

With drain possibility (connection)

value

No

label

With non-return valve

value

No

label

With filter

value

No

label

With thermometer

value

No

label

With insulation shell

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medium temperature (continuous)

value

30°C - 120°C

label

Medium temperature (continuous) (imperial)

value

86°F - 248°F

label

Medically clean

value

No

label

Grease-free

value

No

label

Housing construction

value

1-part

label

Full bore

value

Yes

label

Length of connection 1

value

26mm

label

Length of connection 1 (imperial)

value

1.02"

label

Working length connection 1

value

9mm

label

Working length connection 1 (imperial)

value

0.35"

label

Length of connection 2

value

20mm

label

Length of connection 2 (imperial)

value

0.79"

label

Working length connection 2

value

12mm

label

Working length connection 2 (imperial)

value

0.47"

label

Handle height

value

15mm

label

Handle height (imperial)

value

0.59"

label

Angle of the valve

value

90°

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No
