group: 809
potable water
commercial building
WRAS
item number
size
dimensions
weight
packaging
gtin
item number
size
15xG3/4"
dimensions
55x30x50 mm
weight
0.13 kg
packaging
box (25 pce)
gtin
05013866076930

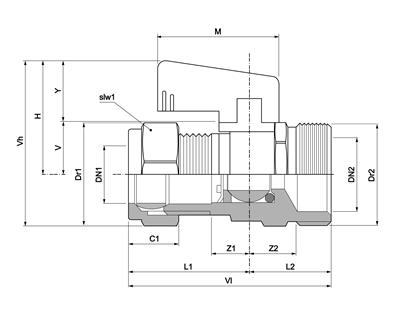

item number
size
DN1
l1
z1
slw1
DN2
l2
z2
M
Y
V
D1
item number
524008size
15xG3/4"
DN1
DN15
l1
30
z1
8
slw1
25
DN2
DN20
l2
21
z2
10
M
31
Y
15
V
15
D1
26
color
chrome
materials
brass (CW617N)
finishing
chromed
shape
straight (0º)
connection type
compression, G - male thread gas cylindrical (BSPP)
pressure rating (PN)
PN 16
sealing
NBR (Nitrile)
product group
valves (stop valves)
ETIM class
EC011343 Ball valve
HS code
84818019
brand
Pegler
series
Service Valve
product type
809
UNSPS
40141607
max operating pressure liquid
16 bar
min. medium temperature
30 °C
max medium temperature
120 °C
peak medium temperature
120 °C
label
value
label
ETIM class
value
label
Housing material
value
Brass
label
Material quality
value
CuZn40Pb2 (CW617N)
label
Surface protection housing
value
Chromium-plated
label
Material ball
value
Brass
label
Material spindle
value
Brass
label
Material primary spindle seal
value
NBR (nitrile rubber)
label
Nominal diameter connection 1
value
DN 15
label
Connection 1
value
Compression ring
label
With coupling connection 1
value
No
label
Nominal diameter connection 2
value
DN 20
label
Connection 2
value
External thread cylindrical BSPP-G (ISO 228-1)
label
With coupling connection 2
value
No
label
Sealing
value
NBR (nitrile rubber)
label
Article compression class
value
PN 16
label
Flange compression class
value
PN 16
label
With drain valve
value
No
label
With drain possibility (connection)
value
No
label
With non-return valve
value
No
label
With filter
value
No
label
With thermometer
value
No
label
Model
value
Straight
label
With insulation shell
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medium temperature (continuous)
value
30°C - 120°C
label
Medium temperature (continuous) (imperial)
value
86°F - 248°F
label
Medically clean
value
No
label
Grease-free
value
No
label
Housing construction
value
1-part
label
Full bore
value
Yes
label
Length of connection 1
value
30mm
label
Length of connection 1 (imperial)
value
1.18"
label
Working length connection 1
value
8mm
label
Working length connection 1 (imperial)
value
0.31"
label
Length of connection 2
value
21mm
label
Length of connection 2 (imperial)
value
0.83"
label
Working length connection 2
value
10mm
label
Working length connection 2 (imperial)
value
0.39"
label
Handle height
value
15mm
label
Handle height (imperial)
value
0.59"
label
Angle of the valve
value
0°
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
