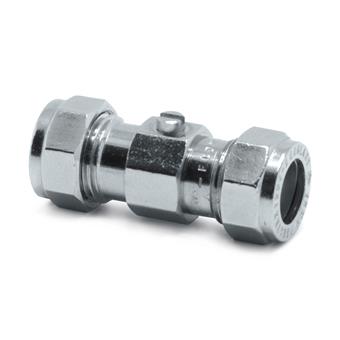

Chromium Plated Straight Pattern Brass Service Valve

group: 808

The Prestex 808 is a chrome plated straight pattern service valve with 2 copper compression ends. By using Prestex in your piping system you can install in easy to use heat free system. Prestex provides a piping suitable for domestic and light commercial applications.
  • No need for use of naked flames
  • Can be used on wet pipework
  • Joints can be dismounted without adversely affecting performance
  • Provided with all relevant approvals
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    potable water

    potable water

    segments

    commercial building

    commercial building

    approvals

    WRAS

    WRAS

    item number

    size

    dimensions

    weight

    packaging

    gtin

    item number

    523007

    size

    15 Cr

    dimensions

    60x25x25 mm

    weight

    0.11 kg

    packaging

    box (10 pce)

    gtin

    05013866007361

    item number

    523008

    size

    22 Cr

    dimensions

    65x30x30 mm

    weight

    0.16 kg

    packaging

    box (10 pce)

    gtin

    05013866007378

    item number

    size

    DN1

    l1

    z1

    slw1

    DN2

    l2

    z2

    slw2

    U

    D1

    item number

    523007

    size

    15 Cr

    DN1

    DN15

    l1

    31

    z1

    14

    slw1

    26

    DN2

    DN15

    l2

    32

    z2

    15

    slw2

    22

    U

    6

    D1

    26

    item number

    523008

    size

    22 Cr

    DN1

    DN20

    l1

    30

    z1

    13

    slw1

    32

    DN2

    DN20

    l2

    35

    z2

    18

    slw2

    23

    U

    13

    D1

    32

    technical drawing for product

    characteristics

    color

    chrome

    materials

    brass (CW617N)

    finishing

    chromed

    shape

    straight (0º)

    connection type

    compression

    pressure rating (PN)

    PN 16

    sealing

    NBR (Nitrile)

    general

    product group

    valves (ball valves)

    ETIM class

    EC011343 Ball valve

    HS code

    84818099

    brand

    Pegler

    series

    Service Valve

    product type

    808

    UNSPS

    40141607

    technical

    max operating pressure liquid

    16 bar

    min. medium temperature

    30 °C

    max medium temperature

    120 °C

    peak medium temperature

    120 °C

    image for 808

    image | jpg

    808

    image for Diagram

    diagram | jpg

    Diagram

    certifications | pdf

    2203009_WRAS_Certficate

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Brass

    label

    Material quality

    value

    CuZn40Pb2 (CW617N)

    label

    Surface protection housing

    value

    Chromium-plated

    label

    Material ball

    value

    Brass

    label

    Material spindle

    value

    Brass

    label

    Material primary spindle seal

    value

    NBR (nitrile rubber)

    label

    Connection 1

    value

    Compression ring

    label

    With coupling connection 1

    value

    No

    label

    Connection 2

    value

    Compression ring

    label

    With coupling connection 2

    value

    No

    label

    Sealing

    value

    NBR (nitrile rubber)

    label

    Article compression class

    value

    PN 16

    label

    Flange compression class

    value

    PN 16

    label

    With drain valve

    value

    No

    label

    With drain possibility (connection)

    value

    No

    label

    With non-return valve

    value

    No

    label

    With filter

    value

    No

    label

    With thermometer

    value

    No

    label

    Model

    value

    Straight

    label

    With insulation shell

    value

    No

    label

    FM quality mark

    value

    No

    label

    UL quality mark

    value

    No

    label

    ULC quality mark

    value

    No

    label

    LPCB quality mark

    value

    No

    label

    Medium temperature (continuous)

    value

    30°C - 120°C

    label

    Medium temperature (continuous) (imperial)

    value

    86°F - 248°F

    label

    Medically clean

    value

    No

    label

    Grease-free

    value

    No

    label

    Housing construction

    value

    1-part

    label

    Full bore

    value

    Yes

    label

    Angle of the valve

    value

    label

    VdS quality mark

    value

    No

    label

    DVGW quality mark for gas

    value

    No

    label

    DVGW quality mark for water

    value

    No

    label

    KIWA certified

    value

    No
