applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

CRN

CRN

WRAS

WRAS

item number

size

dimensions

weight

packaging

gtin

item number

510052

size

G1/2" Cr

dimensions

85x40x44 mm

weight

0.22 kg

packaging

box (1 pce)

gtin

05013866006401

item number

100790020e01

size

60.3 (DN50) orange ISO

dimensions

90x151x95 mm

weight

3.18 kg

packaging

carton (1 pce)

gtin

04710574601102

item number

100790030e01

size

88.9 (DN80) orange ISO

dimensions

90x190x127 mm

weight

5.04 kg

packaging

carton (1 pce)

gtin

04710574601171

item number

100790045e01

size

114.3 (DN100) orange ISO

dimensions

100x223x154 mm

weight

6.47 kg

packaging

carton (1 pce)

gtin

04710574601225

item number

100790085e01

size

219.1 (DN200) orange ISO

dimensions

127x356x276 mm

weight

18.88 kg

packaging

carton (1 pce)

gtin

08711985448009

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

M

Y

V

U

angle

es1

es2

item number

510052

size

G1/2" Cr

d1

21.0

DN1

1/2" (DN15)

l1

34

z1

16

d2

21.0

DN2

1/2" (DN15)

l2

12

z2

25

M

36

Y

34

V

12

U

20

angle

0

es1

es2

item number

100790020e01

size

60.3 (DN50) orange ISO

d1

60.3

DN1

DN50

l1

45

z1

0

d2

60.3

DN2

DN50

l2

45

z2

0

M

Y

V

U

angle

es1

45

es2

45

item number

100790030e01

size

88.9 (DN80) orange ISO

d1

88.9

DN1

DN80

l1

45

z1

0

d2

88.9

DN2

DN80

l2

45

z2

0

M

Y

V

U

angle

es1

45

es2

45

item number

100790045e01

size

114.3 (DN100) orange ISO

d1

114.3

DN1

DN100

l1

50

z1

0

d2

114.3

DN2

DN100

l2

50

z2

0

M

Y

V

U

angle

es1

50

es2

50

item number

100790085e01

size

219.1 (DN200) orange ISO

d1

219.1

DN1

DN200

l1

64

z1

0

d2

219.1

DN2

DN200

l2

64

z2

0

M

Y

V

U

angle

es1

64

es2

64

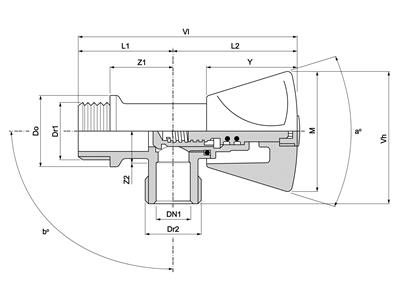

technical drawing for product

characteristics

color

orange, chrome

materials

cast iron, brass (CW617N, ASTM A536 65-45-12)

finishing

chromed, varnished

shape

straight, Elbow

sealing

EPDM, NBR (Nitrile)

general

product group

fittings (demountable)

brand

VSH

technical

max operating pressure liquid

max medium temperature

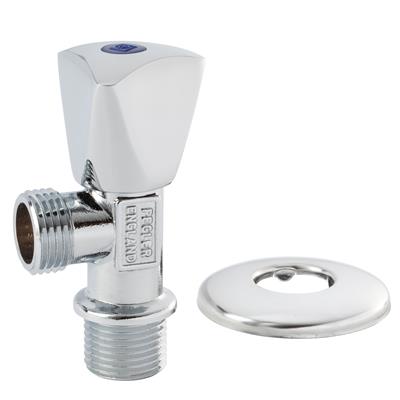

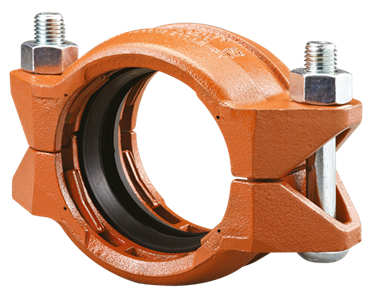

image for 79

image | png

79

image for 79

image | jpg

79

image for Diagram

diagram | png

Diagram

image for Diagram

diagram | jpg

Diagram

submittal sheet | pdf

Datasheet

installation- & maintenance document | pdf

VSH Shurjoint Installation Handbook

certifications | pdf

CRN - Pipe Fittings

certifications | pdf

EPD VSH Shurjoint Grooved Couplings

link to sheet | pdf

MSDS_Shurjoint_Orange_paint

certifications | pdf

NSF_REG4_Screw_Down_Angle_Valves

certifications | pdf

WRAS_2206701

item number

carbon footprint (A1-A3) cradle-to-gate

carbon footprint (A-C) embodied carbon

carbon footprint (A-D) cradle-to-cradle

data source

item number

100790020e01

carbon footprint (A1-A3) cradle-to-gate

12.95kgCO2e

carbon footprint (A-C) embodied carbon

14.99kgCO2e

carbon footprint (A-D) cradle-to-cradle

10.27kgCO2e

data source

EPD

item number

100790030e01

carbon footprint (A1-A3) cradle-to-gate

20.56kgCO2e

carbon footprint (A-C) embodied carbon

23.8kgCO2e

carbon footprint (A-D) cradle-to-cradle

16.31kgCO2e

data source

EPD

item number

100790045e01

carbon footprint (A1-A3) cradle-to-gate

26.31kgCO2e

carbon footprint (A-C) embodied carbon

30.45kgCO2e

carbon footprint (A-D) cradle-to-cradle

20.87kgCO2e

data source

EPD

item number

100790085e01

carbon footprint (A1-A3) cradle-to-gate

76.9kgCO2e

carbon footprint (A-C) embodied carbon

89.01kgCO2e

carbon footprint (A-D) cradle-to-cradle

61kgCO2e

data source

EPD
