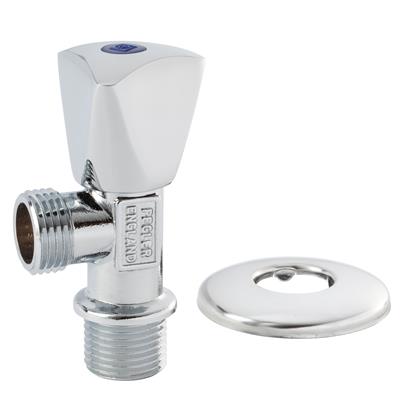

VSH Prextex brass angle valve, soft seat (Chrome Plated)

group: 78

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

segments

building installations

building installations

approvals

WRAS

WRAS

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

M

Y

V

U

angle

item number

510060

size

G1/2" Cr

d1

21.0

DN1

1/2" (DN15)

l1

34

z1

19

d2

21.0

DN2

1/2" (DN15)

l2

12

z2

25

M

36

Y

34

V

12

U

20

angle

0

item number

size

angle

G1/2" Cr

0

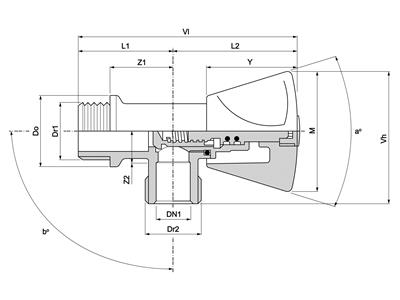

technical drawing for product

characteristics

color

chrome

materials

brass (CW617N)

finishing

chromed

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

Elbow (0º)

connection type

G - male thread gas cylindrical (BSPP)

pressure rating (PN)

PN 10

sealing

NBR (Nitrile)

general

product group

valves

ETIM class

EC011344 Shut-off valve for sanitary devices

HS code

84818099

brand

VSH

series

Prestex angle valve

product type

78

UNSPS

40141600

label

value

label

Connection supply

value

External thread

label

Connection size supply

value

1/2 inch

label

Outgoing connection

value

External thread

label

Size of outgoing connection

value

1/2 inch

label

Material tap

value

Brass

label

Basic colour

value

Chrome

label

KIWA certified

value

No
