close
NEW: myIPS is available
Combined Shape
Combined Shape

products

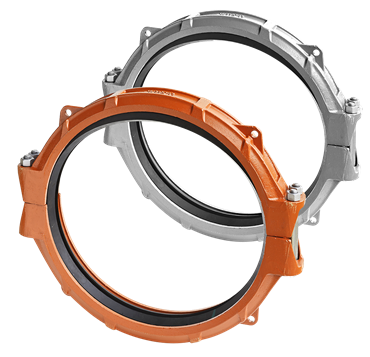

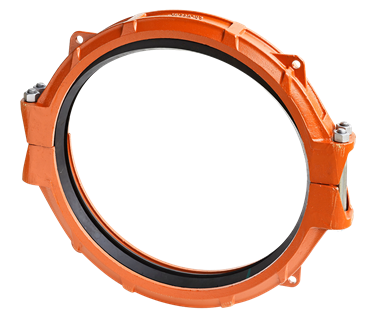

VSH Shurjoint heavy duty flexible coupling (2 x groove), EPDM gasket

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

compressed air

compressed air

vacuum

vacuum

segments

datacenters

datacenters

commercial building

commercial building

industry

industry

approvals

QB (CSTBat)

QB (CSTBat)

UL

UL

ULc

ULc

item number

size

dimensions

weight

packaging

gtin

item number

1770n00a4001

size

355.6 (DN350) orange UNC

dimensions

75x503x412 mm

weight

15.23 kg

packaging

bag (1 pce)

gtin

08711985447361

item number

1770n00a4003

size

355.6 (DN350) galvanized UNC

dimensions

75x503x412 mm

weight

15.23 kg

packaging

bag (1 pce)

gtin

08711985447385

item number

1770n00a6001

size

406.4 (DN400) orange UNC

dimensions

75x555x463 mm

weight

16.78 kg

packaging

bag (1 pce)

gtin

08711985447378

item number

1770n00a6003

size

406.4 (DN400) galvanized UNC

dimensions

75x555x463 mm

weight

16.78 kg

packaging

bag (1 pce)

gtin

08711985447392

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

item number

1770n00a4001

size

355.6 (DN350) orange UNC

d1

355.6

DN1

DN350

l1

38

z1

2

d2

355.6

DN2

DN350

l2

38

z2

2

item number

1770n00a4003

size

355.6 (DN350) galvanized UNC

d1

355.6

DN1

DN350

l1

38

z1

2

d2

355.6

DN2

DN350

l2

38

z2

2

item number

1770n00a6001

size

406.4 (DN400) orange UNC

d1

406.4

DN1

DN400

l1

38

z1

2

d2

406.4

DN2

DN400

l2

38

z2

2

item number

1770n00a6003

size

406.4 (DN400) galvanized UNC

d1

406.4

DN1

DN400

l1

38

z1

2

d2

406.4

DN2

DN400

l2

38

z2

2

technical drawing for product

characteristics

color

silver, orange

materials

cast iron (ASTM A536 65-45-12)

finishing

hot dip galvanized, varnished

shape

straight (0º)

connection type

groove (coupling)

sealing

EPDM

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

73071910

brand

VSH

series

Shurjoint

product type

7707NE

UNSPS

40171704

technical

max operating pressure liquid

20 bar

min. medium temperature

-34 °C

max medium temperature

110 °C

installation- & maintenance document | pdf

VSH Shurjoint installation instructions

certifications | pdf

image for 7707N

image | png

7707N

image for 7707N-Combi

image | png

7707N-Combi

image for 7707N-GV

image | png

7707N-GV

link to sheet | pdf

MSDS_Shurjoint_Orange_paint

certifications | pdf

UL

certifications | pdf

VSH Shurjoint CSTBat

image for Diagram

diagram | png

Diagram

certifications | pdf

UL

submittal sheet | pdf

Datasheet

installation- & maintenance document | pdf

VSH Shurjoint Installation Handbook

label

value

label

Material connection 1

value

Cast iron

label

Material connection 2

value

Cast iron

label

Shape

value

Straight

label

Model

value

2-part

label

Bend angle

value

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Ribbing groove (groove coupling)

label

Connection 2

value

Ribbing groove (groove coupling)

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

No

label

High tensile strength

value

Yes

label

Length

value

75mm

label

Length of connection 1

value

37.5mm

label

Length of connection 1 (imperial)

value

1.48"

label

Working length connection 1

value

1.6mm

label

Working length connection 1 (imperial)

value

0.06"

label

Length of connection 2

value

37.5mm

label

Length of connection 2 (imperial)

value

1.48"

label

Working length connection 2

value

1.6mm

label

Working length connection 2 (imperial)

value

0.06"

label

Medium temperature (continuous)

value

-34°C - 110°C

label

Medium temperature (continuous) (imperial)

value

-29.2°F - 230°F

label

Max. operating pressure at 20 °C

value

20bar

label

Max. operating pressure at 20 °C (imperial)

value

290.08psi

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

Yes

label

UL quality mark

value

Yes

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A1-A3) cradle-to-gate

carbon footprint (A-C) embodied carbon

carbon footprint (A-D) cradle-to-cradle

data source

item number

1770n00a4001

carbon footprint (A1-A3) cradle-to-gate

62.01kgCO2e

carbon footprint (A-C) embodied carbon

71.77kgCO2e

carbon footprint (A-D) cradle-to-cradle

49.18kgCO2e

data source

EPD

item number

1770n00a6001

carbon footprint (A1-A3) cradle-to-gate

68.32kgCO2e

carbon footprint (A-C) embodied carbon

79.08kgCO2e

carbon footprint (A-D) cradle-to-cradle

54.19kgCO2e

data source

EPD

Got any questions?

we are here to help

product selected products selected

You can compare up to 2 products

You can compare up to 4 products

[saving downloads] requires an account

for is a account required

send by email

optional
optional
optional

NEW: myIPS including submittal package builder

streamline your projects effortlessly with our new submittal package builder! Compile, customize, and download our comprehensive product data sheets.

filter downloads

filters

by name or type

category

category
  • brochures (25)
  • technical manuals (11)
  • EPD (13)
  • embodied carbon calculations (10)

product line

product line
  • VSH XPress (28)
  • VSH SudoPress (16)
  • Pegler Valve (14)
  • VSH Tectite (11)

product type

product type
  • fittings (46)
  • valves (29)
  • pipes (12)
  • measurement and accessories (8)
