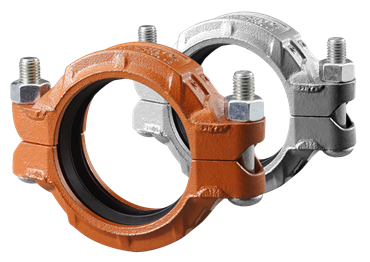

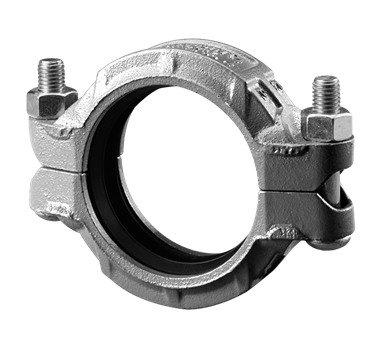

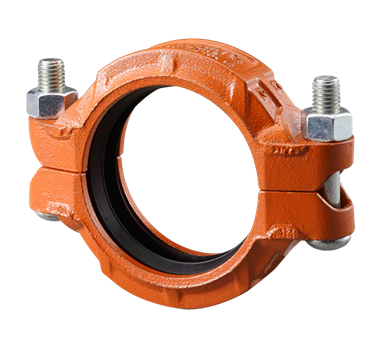

VSH Shurjoint heavy duty flexible coupling (2 x groove), EPDM gasket

group: 7707E

7707E is the designation for model 7707 with a Grade E EPDM gasket. The VSH Shurjoint Model 7707 Flexible Coupling is designed for use in a variety of general piping applications of moderate or high pressure services. Working pressure is usually dictated by the wall thickness and rating of the pipe being used. The Model 7707 couplings feature flexibility that can accommodate misalignment, distortion, thermal stress, vibration and noise and also resist seismic tremors. The utilization of Model 7707 couplings can accommodate a curved layout.
read more
read less

applications

heating

heating

cooling

cooling

compressed air

compressed air

sprinkler

sprinkler

dry fire main

dry fire main

vacuum

vacuum

segments

residential

residential

datacenters

datacenters

commercial building

commercial building

industry

industry

building installations

building installations

approvals

CRN

CRN

FM

FM

QB (CSTBat)

QB (CSTBat)

UL

UL

ULc

ULc

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

item number

177070010E01

size

33.7 (DN32) orange ISO

d1

33.7

DN1

DN25

l1

23

z1

1

d2

33.7

DN2

DN25

l2

23

z2

1

item number

177070012E01

size

42.4 (DN32) orange ISO

d1

42.4

DN1

DN32

l1

23

z1

1

d2

42.4

DN2

DN32

l2

23

z2

1

item number

177070012E03

size

42.4 (DN32) galvanized ISO

d1

42.4

DN1

DN32

l1

23

z1

1

d2

42.4

DN2

DN32

l2

23

z2

1

item number

177070015E01

size

48.3 (DN40) orange ISO

d1

48.3

DN1

DN40

l1

23

z1

1

d2

48.3

DN2

DN40

l2

23

z2

1

item number

177070015E03

size

48.3 (DN40) galvanized ISO

d1

48.3

DN1

DN40

l1

23

z1

1

d2

48.3

DN2

DN40

l2

23

z2

1

item number

177070020E01

size

60.3 (DN50) orange ISO

d1

60.3

DN1

DN50

l1

23

z1

1

d2

60.3

DN2

DN50

l2

23

z2

1

item number

177070020E03

size

60.3 (DN50) galvanized ISO

d1

60.3

DN1

DN50

l1

23

z1

1

d2

60.3

DN2

DN50

l2

23

z2

1

item number

177070029E01

size

76.1 (DN65) orange ISO

d1

76.1

DN1

DN65

l1

24

z1

1

d2

76.1

DN2

DN65

l2

24

z2

1

item number

177070029E03

size

76.1 (DN65) galvanized ISO

d1

76.1

DN1

DN65

l1

24

z1

1

d2

76.1

DN2

DN65

l2

24

z2

1

item number

177070030E01

size

88.9 (DN80) orange ISO

d1

88.9

DN1

DN80

l1

24

z1

1

d2

88.9

DN2

DN80

l2

24

z2

1

item number

177070030E03

size

88.9 (DN80) galvanized ISO

d1

88.9

DN1

DN80

l1

24

z1

1

d2

88.9

DN2

DN80

l2

24

z2

1

item number

177070045E01

size

114.3 (DN100) orange ISO

d1

114.3

DN1

DN100

l1

26

z1

2

d2

114.3

DN2

DN100

l2

26

z2

2

item number

177070045E03

size

114.3 (DN100) galvanized ISO

d1

114.3

DN1

DN100

l1

26

z1

2

d2

114.3

DN2

DN100

l2

26

z2

2

item number

177070052E01

size

139.7 (DN125) orange ISO

d1

139.7

DN1

DN125

l1

27

z1

2

d2

139.7

DN2

DN125

l2

27

z2

2

item number

177070052E03

size

139.7 (DN125) galvanized ISO

d1

139.7

DN1

DN125

l1

27

z1

2

d2

139.7

DN2

DN125

l2

27

z2

2

item number

177070062E01

size

165.1 (DN150) orange ISO

d1

165.1

DN1

DN150

l1

27

z1

2

d2

165.1

DN2

DN150

l2

27

z2

2

item number

177070062E03

size

165.1 (DN150) galvanized ISO

d1

165.1

DN1

DN150

l1

27

z1

2

d2

165.1

DN2

DN150

l2

27

z2

2

item number

177070085E01

size

219.1 (DN200) orange ISO

d1

219.1

DN1

DN200

l1

31

z1

2

d2

219.1

DN2

DN200

l2

31

z2

2

item number

177070085E03

size

219.1 (DN200) galvanized ISO

d1

219.1

DN1

DN200

l1

31

z1

2

d2

219.1

DN2

DN200

l2

31

z2

2

item number

1770700A1001

size

273 (DN250) orange UNC

d1

273.0

DN1

DN250

l1

33

z1

2

d2

273.0

DN2

DN250

l2

33

z2

2

item number

1770700A1003

size

273 (DN250) galvanized UNC

d1

273.0

DN1

DN250

l1

33

z1

2

d2

273.0

DN2

DN250

l2

33

z2

2

item number

1770700A3001

size

323.9 (DN300) orange UNC

d1

323.9

DN1

DN300

l1

33

z1

2

d2

323.9

DN2

DN300

l2

33

z2

2

item number

1770700A3003

size

323.9 (DN300) galvanized UNC

d1

323.9

DN1

DN300

l1

33

z1

2

d2

323.9

DN2

DN300

l2

33

z2

2

technical drawing for product

characteristics

color

silver, orange

materials

cast iron (ASTM A536 65-45-12, EPDM)

finishing

galvanised, varnished

manufacturer

Shurjoint

shape

straight (0º)

connection type

groove (coupling)

sealing

EPDM

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

73071910

brand

VSH

series

Shurjoint

product type

7707E

UNSPS

40171704

label

value

label

Material connection 1

value

Cast iron

label

Material connection 2

value

Cast iron

label

Shape

value

Straight

label

Model

value

2-part

label

Bend angle

value

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Ribbing groove (groove coupling)

label

Connection 2

value

Ribbing groove (groove coupling)

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

No

label

High tensile strength

value

Yes

label

Medium temperature (continuous)

value

-34°C - 110°C

label

Medium temperature (continuous) (imperial)

value

-29.2°F - 230°F

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

Yes

label

UL quality mark

value

Yes

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
