close
Combined Shape
Combined Shape

products

back to overview

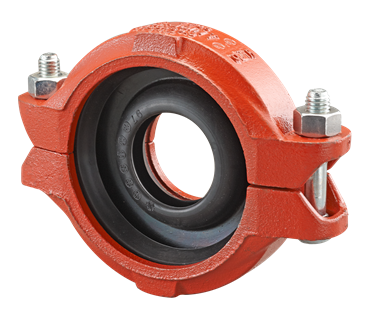

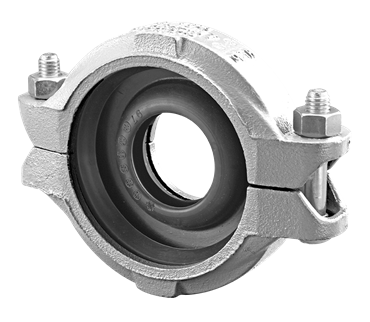

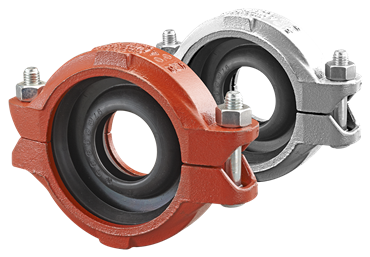

VSH Shurjoint reducing coupling (2 x groove), EPDM gasket

group: 7706

7706E is the designation for model 7706 with a Grade E EPDM gasket. The VSH Shurjoint Model 7706 Reducing Coupling allows direct reduc­tion on a piping run and eliminates the need for a concentric reducer and couplings. The specially de­signed rubber gasket prevents the smaller pipe from telescoping into the larger pipe during vertical installa­tion. All 7706 couplings are comprised of two identical hous­ing segments, EPDM rubber gasket and plated track bolts and nuts. Housing segments are supplied with our standard painted finishes, i.e. orange or red.
read more
read less

applications

heating

heating

cooling

cooling

sprinkler

sprinkler

dry fire main

dry fire main

segments

residential

residential

datacenters

datacenters

commercial building

commercial building

industry

industry

building installations

building installations

approvals

CRN

CRN

FM

FM

LPCB

LPCB

QB (CSTBat)

QB (CSTBat)

TSU

TSU

UL

UL

ULc

ULc

VdS

VdS

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

item number

177062015E02

size

60.3x48.3 red ISO

d1

60.3

DN1

DN50

l1

24

z1

1

d2

48.3

DN2

DN40

l2

24

z2

1

item number

177062015E03

size

60.3x48.3 galvanized ISO

d1

60.3

DN1

DN50

l1

24

z1

1

d2

48.3

DN2

DN40

l2

24

z2

1

item number

177062920E02

size

76.1x60.3 red ISO

d1

76.1

DN1

DN65

l1

24

z1

1

d2

60.3

DN2

DN50

l2

24

z2

1

item number

177062920E03

size

76.1x60.3 galvanized ISO

d1

76.1

DN1

DN65

l1

24

z1

1

d2

60.3

DN2

DN50

l2

24

z2

1

item number

177063020E02

size

88.9x60.3 red ISO

d1

88.9

DN1

DN80

l1

24

z1

1

d2

60.3

DN2

DN50

l2

24

z2

1

item number

177063020E03

size

88.9x60.3 galvanized ISO

d1

88.9

DN1

DN80

l1

24

z1

1

d2

60.3

DN2

DN50

l2

24

z2

1

item number

177063029E02

size

88.9x76.1 red ISO

d1

88.9

DN1

DN80

l1

24

z1

1

d2

76.1

DN2

DN65

l2

24

z2

1

item number

177063029E03

size

88.9x76.1 galvanized ISO

d1

88.9

DN1

DN80

l1

24

z1

1

d2

76.1

DN2

DN65

l2

24

z2

1

item number

177064520E02

size

114.3x60.3 red ISO

d1

114.3

DN1

DN100

l1

25

z1

1

d2

60.3

DN2

DN50

l2

25

z2

1

item number

177064520E03

size

114.3x60.3 galvanized ISO

d1

114.3

DN1

DN100

l1

25

z1

1

d2

60.3

DN2

DN50

l2

25

z2

1

item number

177064529E02

size

114.3x76.1 red ISO

d1

114.3

DN1

DN100

l1

25

z1

1

d2

76.1

DN2

DN65

l2

25

z2

1

item number

177064529E03

size

114.3x76.1 galvanized ISO

d1

114.3

DN1

DN100

l1

25

z1

1

d2

76.1

DN2

DN65

l2

25

z2

1

item number

177064530E02

size

114.3x88.9 red ISO

d1

114.3

DN1

DN100

l1

26

z1

1

d2

88.9

DN2

DN80

l2

26

z2

1

item number

177064530E03

size

114.3x88.9 galvanized ISO

d1

114.3

DN1

DN100

l1

26

z1

1

d2

88.9

DN2

DN80

l2

26

z2

1

item number

177065245E02

size

139.7x114.3 red ISO

d1

139.7

DN1

DN125

l1

26

z1

2

d2

114.3

DN2

DN100

l2

26

z2

2

item number

177065245E03

size

139.7x114.3 galvanized ISO

d1

139.7

DN1

DN125

l1

26

z1

2

d2

114.3

DN2

DN100

l2

26

z2

2

item number

177066230E02

size

165.1x88.9 red ISO

d1

165.1

DN1

DN150

l1

26

z1

2

d2

88.9

DN2

DN80

l2

26

z2

1

item number

177066230E03

size

165.1x88.9 galvanized ISO

d1

165.1

DN1

DN150

l1

26

z1

2

d2

88.9

DN2

DN80

l2

26

z2

1

item number

177066245E02

size

165.1x114.3 red ISO

d1

165.1

DN1

DN150

l1

26

z1

2

d2

114.3

DN2

DN100

l2

26

z2

2

item number

177066245E03

size

165.1x114.3 galvanized ISO

d1

165.1

DN1

DN150

l1

26

z1

2

d2

114.3

DN2

DN100

l2

26

z2

2

item number

177068562E02

size

219.1x165.1 red ISO

d1

219.1

DN1

DN200

l1

28

z1

2

d2

165.1

DN2

DN150

l2

28

z2

2

item number

177068562E03

size

219.1x165.1 galvanized ISO

d1

219.1

DN1

DN200

l1

28

z1

2

d2

165.1

DN2

DN150

l2

28

z2

2

technical drawing for product

characteristics

color

silver, red

materials

cast iron (ASTM A536 65-45-12)

finishing

galvanised, varnished

manufacturer

Shurjoint

shape

straight, reducer

connection type

groove (coupling)

sealing

EPDM

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

73071910

brand

VSH

series

Shurjoint

product type

7706E

UNSPS

40171704

label

value

label

Material connection 1

value

Cast iron

label

Material connection 2

value

Cast iron

label

Shape

value

Straight

label

Model

value

1-part

label

Reducing

value

Yes

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Ribbing groove (groove coupling)

label

Connection 2

value

Ribbing groove (groove coupling)

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

Yes

label

High tensile strength

value

Yes

label

Medium temperature (continuous)

value

-34°C - 110°C

label

Medium temperature (continuous) (imperial)

value

-29.2°F - 230°F

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

Yes

label

LPCB quality mark

value

Yes

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

any questions?

we are here to help

product selected products selected

You can compare up to 2 products

You can compare up to 4 products

send by email

optional
optional

search downloads

filter downloads

by name or type

category

category
  • brochures (25)
  • documentation (16)
  • technical manuals (12)
  • EPD (10)

brand

brand
  • VSH XPress (17)
  • Pegler Valve (14)
  • Pegler ProFlow (8)
  • VSH Tectite (8)

product type

product type
  • fittings (37)
  • valves (24)
  • measurement and accessories (7)
  • radiator valves (3)
