VSH Shurjoint flexible coupling (2 x groove), EPDM gasket

group: 7705E

7705E is the designation for model 7705 with a Grade E EPDM gasket. The VSH Shurjoint Model 7705 Standard Flexible Coupling is a standard flexible coupling for use in a variety of general piping applications of moderate pressure services. The model 7705 couplings features flexibility that can deal with misalignment, distortion, thermal stress, vibration and noise and also resist seismic tremors. With the use of Model 7705 couplings you can even design a curved layout.Support and hanging requirements correspond to ANSI B31.1, B31.9 and NFPA 13. With the removal of only one bolt you can make a fast and easy "swing-over” installation.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

compressed air

compressed air

sprinkler

sprinkler

dry fire main

dry fire main

vacuum

vacuum

segments

residential

residential

fire protection

fire protection

datacenters

datacenters

commercial building

commercial building

industry

industry

approvals

CNBOP

CNBOP

CRN

CRN

FM

FM

LPCB

LPCB

QB (CSTBat)

QB (CSTBat)

TSU

TSU

UL

UL

ULc

ULc

VdS

VdS

item number

size

dimensions

weight

packaging

gtin

item number

177050020e01

size

60.3 (DN50) orange ISO

dimensions

47x129x84 mm

weight

0.8 kg

packaging

carton (1 pce)

gtin

04710574628994

item number

177050029e01

size

76.1 (DN65) orange ISO

dimensions

47x147x102 mm

weight

1.08 kg

packaging

carton (1 pce)

gtin

04710574629168

item number

177050029e03

size

76.1 (DN65) galvanized ISO

dimensions

47x147x102 mm

weight

1.08 kg

packaging

carton (1 pce)

gtin

04710574629175

item number

177050030e03

size

88.9 (DN80) galvanized ISO

dimensions

47x164x116 mm

weight

1.3 kg

packaging

carton (1 pce)

gtin

04710574629281

item number

177050045e01

size

114.3 (DN100) orange ISO

dimensions

52x197x145 mm

weight

1.9 kg

packaging

carton (1 pce)

gtin

04710574629519

item number

177050045e03

size

114.3 (DN100) galvanized ISO

dimensions

52x197x145 mm

weight

1.9 kg

packaging

carton (1 pce)

gtin

04710574629526

item number

177050052e01

size

139.7 (DN125) orange ISO

dimensions

52x248x170 mm

weight

2.87 kg

packaging

carton (1 pce)

gtin

04710574629632

item number

177050052e03

size

139.7 (DN125) galvanized ISO

dimensions

52x248x170 mm

weight

2.87 kg

packaging

carton (1 pce)

gtin

04710574629649

item number

177050062e01

size

165.1 (DN150) orange ISO

dimensions

53x261x196 mm

weight

3.1 kg

packaging

carton (1 pce)

gtin

04710574629847

item number

177050062e03

size

165.1 (DN150) galvanized ISO

dimensions

53x261x196 mm

weight

3.1 kg

packaging

carton (1 pce)

gtin

04710574629854

item number

177050085e01

size

219.1 (DN200) orange ISO

dimensions

62x337x260 mm

weight

5.8 kg

packaging

carton (1 pce)

gtin

04710574630096

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

item number

177050020e01

size

60.3 (DN50) orange ISO

d1

60.3

DN1

DN50

l1

24

z1

1

d2

60.3

DN2

DN50

l2

24

z2

1

item number

177050029e01

size

76.1 (DN65) orange ISO

d1

76.1

DN1

DN65

l1

24

z1

1

d2

76.1

DN2

DN65

l2

24

z2

1

item number

177050029e03

size

76.1 (DN65) galvanized ISO

d1

76.1

DN1

DN65

l1

24

z1

1

d2

76.1

DN2

DN65

l2

24

z2

1

item number

177050030e03

size

88.9 (DN80) galvanized ISO

d1

88.9

DN1

DN80

l1

24

z1

1

d2

88.9

DN2

DN80

l2

24

z2

1

item number

177050045e01

size

114.3 (DN100) orange ISO

d1

114.3

DN1

DN100

l1

26

z1

2

d2

114.3

DN2

DN100

l2

26

z2

2

item number

177050045e03

size

114.3 (DN100) galvanized ISO

d1

114.3

DN1

DN100

l1

26

z1

2

d2

114.3

DN2

DN100

l2

26

z2

2

item number

177050052e01

size

139.7 (DN125) orange ISO

d1

139.7

DN1

DN125

l1

26

z1

2

d2

139.7

DN2

DN125

l2

26

z2

2

item number

177050052e03

size

139.7 (DN125) galvanized ISO

d1

139.7

DN1

DN125

l1

26

z1

2

d2

139.7

DN2

DN125

l2

26

z2

2

item number

177050062e01

size

165.1 (DN150) orange ISO

d1

165.1

DN1

DN150

l1

27

z1

2

d2

165.1

DN2

DN150

l2

27

z2

2

item number

177050062e03

size

165.1 (DN150) galvanized ISO

d1

165.1

DN1

DN150

l1

27

z1

2

d2

165.1

DN2

DN150

l2

27

z2

2

item number

177050085e01

size

219.1 (DN200) orange ISO

d1

219.1

DN1

DN200

l1

31

z1

2

d2

219.1

DN2

DN200

l2

31

z2

2

technical drawing for product

characteristics

color

silver, orange

materials

cast iron (ASTM A536 65-45-12)

finishing

hot dip galvanized, varnished

shape

straight (0º)

connection type

groove (coupling)

sealing

EPDM

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

73071910

brand

VSH

series

Shurjoint

product type

7705E

UNSPS

40171704

technical

max operating pressure liquid

value depends on the item view items

min. medium temperature

-34 °C

max medium temperature

110 °C

installation- & maintenance document | pdf

VSH Shurjoint installation instructions

certifications | pdf

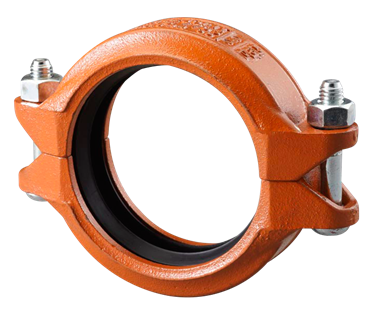

image for 7705

image | png

7705

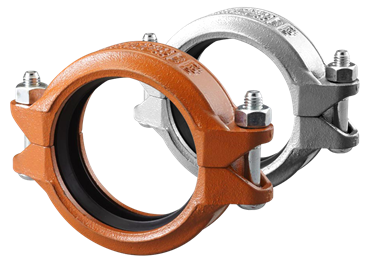

image for 7705-Combi

image | png

7705-Combi

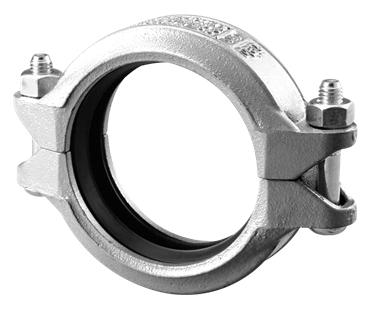

image for 7705-GV

image | png

7705-GV

certifications | pdf

CRN - Pipe Fittings

certifications | pdf

FM

certifications | pdf

LPCB

link to sheet | pdf

MSDS_Shurjoint_Orange_paint

certifications | pdf

TSU

certifications | pdf

UL

certifications | pdf

ULc

certifications | PDF

VSH Shurjoint CNBOP

certifications | pdf

VSH Shurjoint CSTBat

certifications | pdf

VdS

image for Diagram

diagram | png

Diagram

certifications | pdf

UL

submittal sheet | pdf

Datasheet

installation- & maintenance document | pdf

VSH Shurjoint Installation Handbook

label

value

label

Material connection 1

value

Cast iron

label

Material connection 2

value

Cast iron

label

Shape

value

Straight

label

Model

value

2-part

label

Bend angle

value

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Ribbing groove (groove coupling)

label

Connection 2

value

Ribbing groove (groove coupling)

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

No

label

High tensile strength

value

Yes

label

Medium temperature (continuous)

value

-34°C - 110°C

label

Medium temperature (continuous) (imperial)

value

-29.2°F - 230°F

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

Yes

label

LPCB quality mark

value

Yes

label

ULC quality mark

value

Yes

label

UL quality mark

value

Yes

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A1-A3) cradle-to-gate

carbon footprint (A-C) embodied carbon

carbon footprint (A-D) cradle-to-cradle

data source

item number

177050020e01

carbon footprint (A1-A3) cradle-to-gate

3.64kgCO2e

carbon footprint (A-C) embodied carbon

4.22kgCO2e

carbon footprint (A-D) cradle-to-cradle

2.89kgCO2e

data source

EPD

item number

177050029e01

carbon footprint (A1-A3) cradle-to-gate

4.37kgCO2e

carbon footprint (A-C) embodied carbon

5.06kgCO2e

carbon footprint (A-D) cradle-to-cradle

3.47kgCO2e

data source

EPD

item number

177050045e01

carbon footprint (A1-A3) cradle-to-gate

8.1kgCO2e

carbon footprint (A-C) embodied carbon

9.37kgCO2e

carbon footprint (A-D) cradle-to-cradle

6.42kgCO2e

data source

EPD

item number

177050052e01

carbon footprint (A1-A3) cradle-to-gate

11.66kgCO2e

carbon footprint (A-C) embodied carbon

13.49kgCO2e

carbon footprint (A-D) cradle-to-cradle

9.25kgCO2e

data source

EPD

item number

177050062e01

carbon footprint (A1-A3) cradle-to-gate

12.71kgCO2e

carbon footprint (A-C) embodied carbon

14.71kgCO2e

carbon footprint (A-D) cradle-to-cradle

10.08kgCO2e

data source

EPD

item number

177050085e01

carbon footprint (A1-A3) cradle-to-gate

21.45kgCO2e

carbon footprint (A-C) embodied carbon

24.83kgCO2e

carbon footprint (A-D) cradle-to-cradle

17.02kgCO2e

data source

EPD
