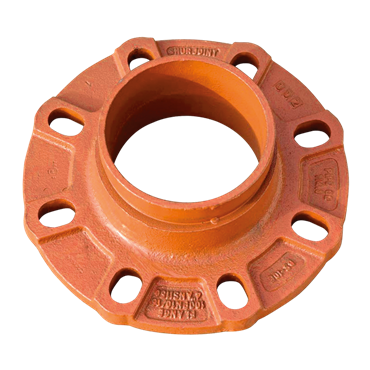

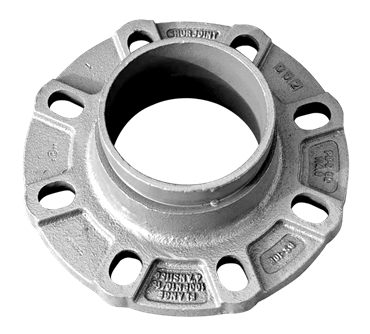

VSH Shurjoint universal flange nipple (groove x flange)

group: 7180

The Model 7180 Universal Flange Adapter provides all the benefits of our popular #7170 Flange Adapter with the added benefit of mating to a range of flange types including ANSI 125/150, PN10, PN16, JIS 10K, and BS-10E.

Shurjoint Model 7180 flange adapter pressure ratings conform to the working pressure rating of the coupling used to join grooved pipe to the grooved side of the adapter, or to the working pressure rating of the flange system connecting to the flange side of the adapter, whichever is lower.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

compressed air

compressed air

sprinkler

sprinkler

dry fire main

dry fire main

segments

fire protection

fire protection

commercial building

commercial building

industry

industry

approvals

FM

FM

QB (CSTBat)

QB (CSTBat)

UL

UL

ULc

ULc

item number

size

dimensions

weight

packaging

gtin

item number

171800020001

size

60.3 (DN50) orange

dimensions

64x165x165 mm

weight

2.3 kg

packaging

carton (1 pce)

gtin

04710574628222

item number

171800020003

size

60.3 (DN50) galvanized

dimensions

64x165x165 mm

weight

2.3 kg

packaging

carton (1 pce)

gtin

04710574628239

item number

171800029001

size

76.1 (DN65) orange

dimensions

76x185x185 mm

weight

3.09 kg

packaging

carton (1 pce)

gtin

04710574628277

item number

171800029003

size

76.1 (DN65) galvanized

dimensions

76x185x185 mm

weight

2.96 kg

packaging

carton (1 pce)

gtin

04710574628291

item number

171800030001

size

88.9 (DN80) orange

dimensions

75x200x200 mm

weight

3.39 kg

packaging

carton (1 pce)

gtin

04710574628307

item number

171800030003

size

88.9 (DN80) galvanized

dimensions

75x200x200 mm

weight

3.39 kg

packaging

carton (1 pce)

gtin

04710574628321

item number

171800045001

size

114.3 (DN100) orange

dimensions

75x225x225 mm

weight

3.85 kg

packaging

carton (1 pce)

gtin

04710574628352

item number

171800045003

size

114.3 (DN100) galvanized

dimensions

75x225x225 mm

weight

3.85 kg

packaging

carton (1 pce)

gtin

04710574628376

item number

171800052001

size

139.7 (DN125) orange

dimensions

75x254x254 mm

weight

6.5 kg

packaging

carton (1 pce)

gtin

04710574628390

item number

171800052003

size

139.7 (DN125) galvanized

dimensions

75x254x254 mm

weight

6.5 kg

packaging

carton (1 pce)

gtin

04710574628413

item number

171800062001

size

165.1 (DN150) orange

dimensions

75x272x272 mm

weight

6.3 kg

packaging

carton (1 pce)

gtin

04710574628451

item number

171800062003

size

165.1 (DN150) galvanized

dimensions

75x272x272 mm

weight

6.3 kg

packaging

carton (1 pce)

gtin

04710574628475

item number

171800085001

size

219.1 (DN200) orange

dimensions

102x343x343 mm

weight

13.65 kg

packaging

carton (1 pce)

gtin

08711985445121

item number

171800085003

size

219.1 (DN200) galvanized

dimensions

102x343x343 mm

weight

13.65 kg

packaging

carton (1 pce)

gtin

08711985445138

item number

size

d1

DN1

l1

d2

DN2

l2

n2

k2

d2-2

D2

item number

171800020001

size

60.3 (DN50) orange

d1

60.3

DN1

DN50

l1

48

d2

165.0

DN2

DN50

l2

16

n2

4

k2

125

d2-2

18

D2

165

item number

171800020003

size

60.3 (DN50) galvanized

d1

60.3

DN1

DN50

l1

48

d2

165.0

DN2

DN50

l2

16

n2

4

k2

125

d2-2

18

D2

165

item number

171800029001

size

76.1 (DN65) orange

d1

76.1

DN1

DN65

l1

60

d2

185.0

DN2

DN65

l2

16

n2

4

k2

145

d2-2

18

D2

185

item number

171800029003

size

76.1 (DN65) galvanized

d1

76.1

DN1

DN65

l1

60

d2

185.0

DN2

DN65

l2

16

n2

4

k2

145

d2-2

18

D2

185

item number

171800030001

size

88.9 (DN80) orange

d1

88.9

DN1

DN80

l1

59

d2

200.0

DN2

DN80

l2

16

n2

8

k2

160

d2-2

18

D2

200

item number

171800030003

size

88.9 (DN80) galvanized

d1

88.9

DN1

DN80

l1

59

d2

200.0

DN2

DN80

l2

16

n2

8

k2

160

d2-2

18

D2

200

item number

171800045001

size

114.3 (DN100) orange

d1

114.3

DN1

DN100

l1

59

d2

225.0

DN2

DN100

l2

16

n2

8

k2

180

d2-2

18

D2

220

item number

171800045003

size

114.3 (DN100) galvanized

d1

114.3

DN1

DN100

l1

59

d2

225.0

DN2

DN100

l2

16

n2

8

k2

180

d2-2

18

D2

220

item number

171800052001

size

139.7 (DN125) orange

d1

139.7

DN1

DN125

l1

59

d2

254.0

DN2

DN125

l2

16

n2

8

k2

210

d2-2

18

D2

250

item number

171800052003

size

139.7 (DN125) galvanized

d1

139.7

DN1

DN125

l1

59

d2

254.0

DN2

DN125

l2

16

n2

8

k2

210

d2-2

18

D2

250

item number

171800062001

size

165.1 (DN150) orange

d1

165.1

DN1

DN150

l1

59

d2

272.0

DN2

DN150

l2

16

n2

8

k2

240

d2-2

22

D2

285

item number

171800062003

size

165.1 (DN150) galvanized

d1

165.1

DN1

DN150

l1

59

d2

272.0

DN2

DN150

l2

16

n2

8

k2

240

d2-2

22

D2

285

item number

171800085001

size

219.1 (DN200) orange

d1

219.1

DN1

DN200

l1

80

d2

343.0

DN2

DN200

l2

22

n2

12

k2

295

d2-2

22

D2

340

item number

171800085003

size

219.1 (DN200) galvanized

d1

219.1

DN1

DN200

l1

80

d2

343.0

DN2

DN200

l2

22

n2

12

k2

295

d2-2

22

D2

340

technical drawing for product

characteristics

color

silver, orange

materials

cast iron (ASTM A536 65-45-12)

finishing

hot dip galvanized, varnished

shape

straight

connection type

groove (fitting), flange

pressure rating (PN)

PN 16

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

73071910

brand

VSH

series

Shurjoint

product type

7180

UNSPS

40173404

technical

max operating pressure liquid

16 bar

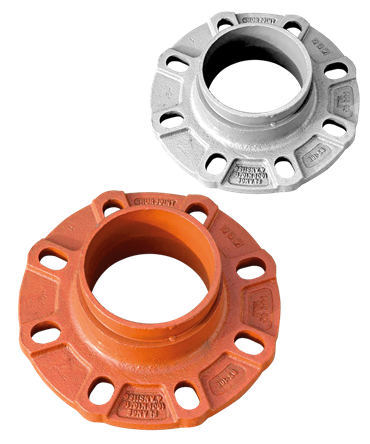

image for 7180-Combi

image | png

7180-Combi

image for Diagram

diagram | png

Diagram

submittal sheet | pdf

Datasheet

installation- & maintenance document | pdf

VSH Shurjoint Installation Handbook

installation- & maintenance document | pdf

VSH Shurjoint installation instructions

certifications | pdf

image for 7180

image | png

7180

image for 7180-GV

image | png

7180-GV

certifications | pdf

FM

link to sheet | pdf

MSDS_Shurjoint_Orange_paint

certifications | pdf

UL

certifications | pdf

ULc

certifications | pdf

VSH Shurjoint CSTBat

certifications | pdf

UL

certifications | pdf

UL

label

value

label

Material connection 1

value

Cast iron

label

Material quality connection 1

value

ASTM A536 Grade 65-45-12

label

Material connection 2

value

Cast iron

label

Material quality connection 2

value

ASTM A536 Grade 65-45-12

label

Shape

value

Straight

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Groove

label

Connection 2

value

Flange

label

Flange compression class (PN)

value

PN 16

label

With buffer stud

value

No

label

High tensile strength

value

Yes

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

LPCB quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A1-A3) cradle-to-gate

carbon footprint (A-C) embodied carbon

carbon footprint (A-D) cradle-to-cradle

data source

item number

171800020001

carbon footprint (A1-A3) cradle-to-gate

8.4kgCO2e

carbon footprint (A-C) embodied carbon

9.6kgCO2e

carbon footprint (A-D) cradle-to-cradle

6.2kgCO2e

data source

EPD

item number

171800029001

carbon footprint (A1-A3) cradle-to-gate

11.24kgCO2e

carbon footprint (A-C) embodied carbon

12.85kgCO2e

carbon footprint (A-D) cradle-to-cradle

8.3kgCO2e

data source

EPD

item number

171800030001

carbon footprint (A1-A3) cradle-to-gate

12.37kgCO2e

carbon footprint (A-C) embodied carbon

14.14kgCO2e

carbon footprint (A-D) cradle-to-cradle

9.14kgCO2e

data source

EPD

item number

171800045001

carbon footprint (A1-A3) cradle-to-gate

13.96kgCO2e

carbon footprint (A-C) embodied carbon

15.96kgCO2e

carbon footprint (A-D) cradle-to-cradle

10.31kgCO2e

data source

EPD

item number

171800052001

carbon footprint (A1-A3) cradle-to-gate

24.29kgCO2e

carbon footprint (A-C) embodied carbon

27.77kgCO2e

carbon footprint (A-D) cradle-to-cradle

17.94kgCO2e

data source

EPD

item number

171800062001

carbon footprint (A1-A3) cradle-to-gate

22.59kgCO2e

carbon footprint (A-C) embodied carbon

25.82kgCO2e

carbon footprint (A-D) cradle-to-cradle

16.69kgCO2e

data source

EPD

item number

171800085001

carbon footprint (A1-A3) cradle-to-gate

49.72kgCO2e

carbon footprint (A-C) embodied carbon

56.83kgCO2e

carbon footprint (A-D) cradle-to-cradle

36.73kgCO2e

data source

EPD

Got any questions?

we are here to help

product selected products selected

You can compare up to 2 products

You can compare up to 4 products

[saving downloads] requires an account

for is a account required

send by email

optional
optional
optional

NEW: myIPS including submittal package builder

streamline your projects effortlessly with our new submittal package builder! Compile, customize, and download our comprehensive product data sheets.

filter downloads

filters

by name or type

category

category
  • brochures (25)
  • technical manuals (11)
  • EPD (13)
  • embodied carbon calculations (10)

product line

product line
  • VSH XPress (28)
  • VSH SudoPress (16)
  • Pegler Valve (14)
  • VSH Tectite (11)

product type

product type
  • fittings (46)
  • valves (29)
  • pipes (12)
  • measurement and accessories (8)
