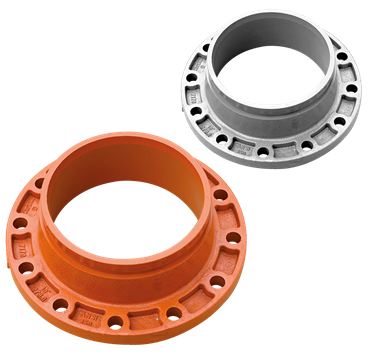

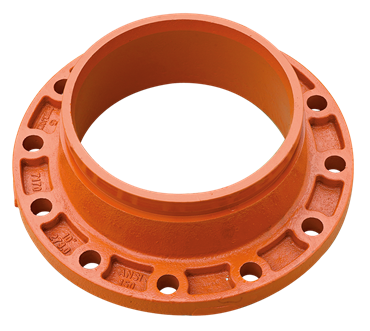

VSH Shurjoint A150 flange nipple (groove x flange)

group: 7170

The ductile iron Model 7170 Flange Adapter provides a rigid transition between ANSI class 125/150 flanged components and a grooved system.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

1170b00a1001

size

273 (DN250) PN16 orange, fab.

dimensions

114x405x405 mm

weight

22 kg

packaging

bag (1 pce)

gtin

08711985477214

item number

1170b00a3001

size

323.9 (DN300) PN16 orange, fab.

dimensions

114x460x460 mm

weight

28 kg

packaging

bag (1 pce)

gtin

08711985477221

item number

1170e00a1001

size

273 (DN250) PN10 orange, fab.

dimensions

114x395x395 mm

weight

22 kg

packaging

bag (1 pce)

gtin

08711985477191

item number

1170e00a3001

size

323.9 (DN300) PN10 orange, fab.

dimensions

114x445x445 mm

weight

28 kg

packaging

bag (1 pce)

gtin

08711985477207

item number

1170e00a4001

size

355.6 (DN350) PN10 orange, fab.

dimensions

127x505x505 mm

weight

49.5 kg

packaging

-

gtin

-

item number

1170e00a6001

size

406.4 (DN400) PN10 orange, fab.

dimensions

127x565x565 mm

weight

50 kg

packaging

-

gtin

-

item number

size

d1

DN1

l1

d2

DN2

l2

item number

1170b00a1001

size

273 (DN250) PN16 orange, fab.

d1

273.0

DN1

DN250

l1

85

d2

405.0

DN2

DN250

l2

29

item number

1170b00a3001

size

323.9 (DN300) PN16 orange, fab.

d1

323.9

DN1

DN300

l1

82

d2

460.0

DN2

DN300

l2

32

item number

1170e00a1001

size

273 (DN250) PN10 orange, fab.

d1

273.0

DN1

DN250

l1

88

d2

406.0

DN2

DN250

l2

26

item number

1170e00a3001

size

323.9 (DN300) PN10 orange, fab.

d1

323.9

DN1

DN300

l1

88

d2

445.0

DN2

DN300

l2

26

item number

1170e00a4001

size

355.6 (DN350) PN10 orange, fab.

d1

355.6

DN1

DN350

l1

97

d2

505.0

DN2

DN350

l2

30

item number

1170e00a6001

size

406.4 (DN400) PN10 orange, fab.

d1

406.4

DN1

DN400

l1

95

d2

565.0

DN2

DN400

l2

32

technical drawing for product

characteristics

color

silver, orange

materials

steel (ASTM A53 Grade B)

finishing

varnished

connection type

groove (fitting), flange

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

brand

VSH

series

Shurjoint

product type

7170

UNSPS

40173310

technical

max operating pressure liquid

value depends on the item view items

image for Diagram

diagram | png

Diagram

submittal sheet | pdf

Datasheet

installation- & maintenance document | pdf

VSH Shurjoint Installation Handbook

installation- & maintenance document | pdf

VSH Shurjoint installation instructions

image for 7170-Combi

image | png

7170-Combi

certifications | pdf

image for 7170

image | png

7170

link to sheet | pdf

MSDS_Shurjoint_Orange_paint

label

value

label

Material connection 1

value

Steel

label

Material quality connection 1

value

Other

label

Surface protection connection 1

value

Lacquered

label

Surface treatment connection 1

value

Other

label

Material connection 2

value

Steel

label

Material quality connection 2

value

Other

label

Surface protection connection 2

value

Lacquered

label

Surface treatment connection 2

value

Other

label

Shape

value

Straight

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Groove

label

Connection 2

value

Flange

label

With buffer stud

value

No

label

High tensile strength

value

Yes

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A1-A3) cradle-to-gate

carbon footprint (A-C) embodied carbon

carbon footprint (A-D) cradle-to-cradle

data source

item number

1170b00a1001

carbon footprint (A1-A3) cradle-to-gate

80.03kgCO2e

carbon footprint (A-C) embodied carbon

91.48kgCO2e

carbon footprint (A-D) cradle-to-cradle

59.11kgCO2e

data source

EPD

item number

1170b00a3001

carbon footprint (A1-A3) cradle-to-gate

101.83kgCO2e

carbon footprint (A-C) embodied carbon

116.39kgCO2e

carbon footprint (A-D) cradle-to-cradle

75.21kgCO2e

data source

EPD

item number

1170e00a1001

carbon footprint (A1-A3) cradle-to-gate

80.03kgCO2e

carbon footprint (A-C) embodied carbon

91.48kgCO2e

carbon footprint (A-D) cradle-to-cradle

59.11kgCO2e

data source

EPD

item number

1170e00a3001

carbon footprint (A1-A3) cradle-to-gate

101.83kgCO2e

carbon footprint (A-C) embodied carbon

116.39kgCO2e

carbon footprint (A-D) cradle-to-cradle

75.21kgCO2e

data source

EPD

item number

1170e00a4001

carbon footprint (A1-A3) cradle-to-gate

180.16kgCO2e

carbon footprint (A-C) embodied carbon

205.93kgCO2e

carbon footprint (A-D) cradle-to-cradle

133.07kgCO2e

data source

EPD

item number

1170e00a6001

carbon footprint (A1-A3) cradle-to-gate

181.97kgCO2e

carbon footprint (A-C) embodied carbon

208.01kgCO2e

carbon footprint (A-D) cradle-to-cradle

134.41kgCO2e

data source

EPD
