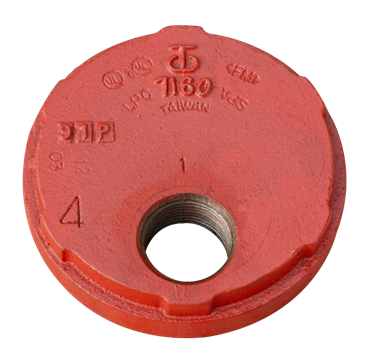

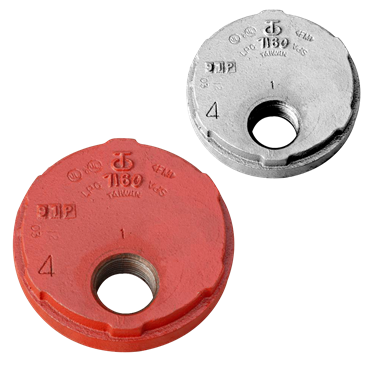

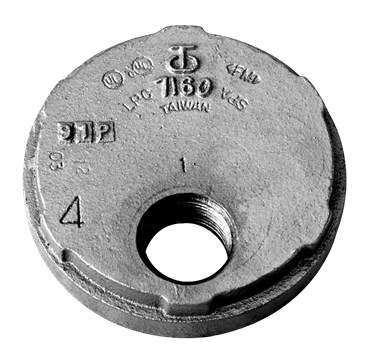

VSH Shurjoint eccentric transition cap (groove x female thread)

group: 7160T

The Model 7160T grooved x threaded transition fitting can be the ideal fitting when transitioning from a larger grooved pipe to a smaller threaded pipe such as 6" x 1", 4" x 1" etc. The 7160T can be used as an alternative to expensive swaged nipples.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.
read more
read less

applications

heating

heating

cooling

cooling

compressed air

compressed air

sprinkler

sprinkler

dry fire main

dry fire main

segments

fire protection

fire protection

commercial building

commercial building

industry

industry

approvals

FM

FM

ULc

ULc

item number

size

d1

DN1

l1

d2

DN2

item number

1160T2010002

size

60.3xRc1" red

d1

60.3

DN1

DN50

l1

24

d2

33.4

DN2

DN25

item number

1160T2010004

size

60.3xRc1" galvanized

d1

60.3

DN1

DN50

l1

24

d2

33.4

DN2

DN25

item number

1160T2910002

size

76.1xRc1" red

d1

76.1

DN1

DN65

l1

24

d2

33.4

DN2

DN25

item number

1160T2910004

size

76.1xRc1" galvanized

d1

76.1

DN1

DN65

l1

24

d2

33.4

DN2

DN25

item number

1160T2912002

size

76.1xRc1 1/4" red

d1

76.1

DN1

DN65

l1

24

d2

42.2

DN2

DN32

item number

1160T2912004

size

76.1xRc1 1/4" galvanized

d1

76.1

DN1

DN65

l1

24

d2

42.2

DN2

DN32

item number

1160T2915002

size

76.1xRc1 1/2" red

d1

76.1

DN1

DN65

l1

24

d2

48.3

DN2

DN40

item number

1160T2915004

size

76.1xRc1 1/2" galvanized

d1

76.1

DN1

DN65

l1

24

d2

48.3

DN2

DN40

item number

1160T3010002

size

88.9xRc1" red

d1

88.9

DN1

DN80

l1

25

d2

33.4

DN2

DN25

item number

1160T3010004

size

88.9xRc1" galvanized

d1

88.9

DN1

DN80

l1

25

d2

33.4

DN2

DN25

item number

1160T3012002

size

88.9xRc1 1/4" red

d1

88.9

DN1

DN80

l1

25

d2

42.2

DN2

DN32

item number

1160T3012004

size

88.9xRc1 1/4" galvanized

d1

88.9

DN1

DN80

l1

25

d2

42.2

DN2

DN32

item number

1160T3015002

size

88.9xRc1 1/2" red

d1

88.9

DN1

DN80

l1

25

d2

48.3

DN2

DN40

item number

1160T3015004

size

88.9xRc1 1/2" galvanized

d1

88.9

DN1

DN80

l1

25

d2

48.3

DN2

DN40

item number

1160T3020002

size

88.9xRc2" red

d1

88.9

DN1

DN80

l1

25

d2

60.3

DN2

DN50

item number

1160T3020004

size

88.9xRc2" galvanized

d1

88.9

DN1

DN80

l1

25

d2

60.3

DN2

DN50

item number

1160T4510002

size

114.3xRc1" red

d1

114.3

DN1

DN100

l1

25

d2

33.4

DN2

DN25

item number

1160T4510004

size

114.3xRc1" galvanized

d1

114.3

DN1

DN100

l1

25

d2

33.4

DN2

DN25

item number

1160T4512002

size

114.3xRc1 1/4" red

d1

114.3

DN1

DN100

l1

25

d2

42.2

DN2

DN32

item number

1160T4512004

size

114.3xRc1 1/4" galvanized

d1

114.3

DN1

DN100

l1

25

d2

42.2

DN2

DN32

item number

1160T4515002

size

114.3xRc1 1/2" red

d1

114.3

DN1

DN100

l1

25

d2

48.3

DN2

DN40

item number

1160T4515004

size

114.3xRc1 1/2" galvanized

d1

114.3

DN1

DN100

l1

25

d2

48.3

DN2

DN40

item number

1160T4520002

size

114.3xRc2" red

d1

114.3

DN1

DN100

l1

25

d2

60.3

DN2

DN50

item number

1160T4520004

size

114.3xRc2" galvanized

d1

114.3

DN1

DN100

l1

25

d2

60.3

DN2

DN50

item number

1160T5220002

size

139.7xRc2" red

d1

139.7

DN1

DN125

l1

25

d2

60.3

DN2

DN50

item number

1160T5220004

size

139.7xRc2" galvanized

d1

139.7

DN1

DN125

l1

25

d2

60.3

DN2

DN50

item number

1160T6220002

size

165.1xRc2" red

d1

165.1

DN1

DN150

l1

25

d2

60.3

DN2

DN50

item number

1160T6220004

size

165.1xRc2" galvanized

d1

165.1

DN1

DN150

l1

25

d2

60.3

DN2

DN50

item number

1160T8520002

size

219.1xRc2" red

d1

219.1

DN1

DN200

l1

30

d2

60.3

DN2

DN50

item number

1160T8520004

size

219.1xRc2" galvanized

d1

219.1

DN1

DN200

l1

30

d2

60.3

DN2

DN50

technical drawing for product

characteristics

color

silver, red

materials

cast iron (ASTM A536 65-45-12)

finishing

galvanised, varnished

manufacturer

Shurjoint

shape

straight, Excentric, reducer (0º)

connection type

groove (fitting), Rc - female thread gas conical (BSPT)

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

73071910

brand

VSH

series

Shurjoint

product type

7160T

UNSPS

40172404

label

value

label

Material connection 1

value

Cast iron

label

Material connection 2

value

Cast iron

label

Shape

value

Straight

label

Model

value

1-part

label

Bend angle

value

label

Reducing

value

Yes

label

Eccentric

value

Yes

label

System specific

value

No

label

Connection 1

value

Groove

label

Connection 2

value

Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)

label

With buffer stud

value

No

label

High tensile strength

value

Yes

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

LPCB quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
