group: 7150M
heating
cooling
compressed air
sprinkler
dry fire main
industry
commercial building
fire protection
UL
ULc
FM
code
size
dimensions
weight
packaging
gtin
code
size
60.3xR1" galvanized
dimensions
61x61x64 mm
weight
0.41 kg
packaging
-
gtin
04710574615833
code
size
60.3xR1" orange
dimensions
61x61x64 mm
weight
0.41 kg
packaging
-
gtin
04710574615840
code
size
60.3xR1 1/2" galvanized
dimensions
61x61x64 mm
weight
0.37 kg
packaging
-
gtin
04710574615918
code
size
60.3xR1 1/2" orange
dimensions
61x61x64 mm
weight
0.37 kg
packaging
-
gtin
04710574615925
code
size
76.1xR1" galvanized
dimensions
77x77x64 mm
weight
0.4 kg
packaging
-
gtin
04710574615994
code
size
76.1xR1" orange
dimensions
77x77x64 mm
weight
0.4 kg
packaging
-
gtin
04710574616007
code
size
76.1xR2" galvanized
dimensions
77x77x64 mm
weight
0.42 kg
packaging
-
gtin
04710574616052
code
size
76.1xR2" orange
dimensions
77x77x64 mm
weight
0.42 kg
packaging
-
gtin
04710574616069
code
size
88.9xR1" galvanized
dimensions
89x89x64 mm
weight
0.57 kg
packaging
-
gtin
04710574616083
code
size
88.9xR1" orange
dimensions
89x89x64 mm
weight
0.57 kg
packaging
-
gtin
04710574616090
code
size
88.9xR2" galvanized
dimensions
89x89x64 mm
weight
0.6 kg
packaging
-
gtin
04710574616182
code
size
88.9xR2" orange
dimensions
89x89x64 mm
weight
0.6 kg
packaging
-
gtin
04710574616199
code
size
114.3xR2" galvanized
dimensions
115x115x76 mm
weight
1.05 kg
packaging
-
gtin
04710574616342
code
size
114.3xR2" orange
dimensions
115x115x76 mm
weight
1.05 kg
packaging
-
gtin
04710574616359
code
size
165.1xR2" galvanized
dimensions
166x166x102 mm
weight
2.23 kg
packaging
-
gtin
04710574616458
code
size
165.1xR2" orange
dimensions
166x166x102 mm
weight
2.23 kg
packaging
-
gtin
04710574616465
code
size
d1
DN1
l1
z1
d2
DN2
l2
z2
code
size
60.3xR1" galvanized
d1
60.3
DN1
DN50
l1
32
z1
32
d2
33.7
DN2
DN25
l2
32
z2
13
code
size
60.3xR1 1/2" galvanized
d1
60.3
DN1
DN50
l1
32
z1
32
d2
48.3
DN2
DN40
l2
32
z2
10
code
size
60.3xR1 1/2" orange
d1
60.3
DN1
DN50
l1
32
z1
32
d2
48.3
DN2
DN40
l2
32
z2
10
code
size
76.1xR1" galvanized
d1
76.1
DN1
DN65
l1
32
z1
32
d2
33.7
DN2
DN25
l2
32
z2
13
code
size
88.9xR1" galvanized
d1
88.9
DN1
DN80
l1
32
z1
32
d2
33.7
DN2
DN25
l2
32
z2
13
code
size
114.3xR2" galvanized
d1
114.3
DN1
DN100
l1
38
z1
38
d2
60.3
DN2
DN50
l2
38
z2
12
code
size
165.1xR2" galvanized
d1
165.1
DN1
DN150
l1
51
z1
51
d2
60.3
DN2
DN50
l2
51
z2
29
item

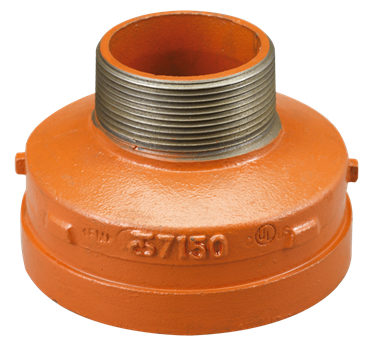

VSH Shurjoint reducing nipple (groove x male thread)
item number with gtin
7150M
manufacturer
Shurjoint
weight
2.23 kg
dimensions
166x166x102 mm
color
silver, orange
materials
cast iron (ASTM A536 65-45-12)
finishing
hot dip galvanized, varnished
shape
reducer
connection type
groove (fitting), R - male thread gas conical (BSPT)
max operating pressure liquid
69 bar
product group
fittingen (demountable)
ETIM class
EC003024 Fitting with 2 connectionsHS code
73071910
brand
VSH
series
Shurjoint
product type
7150M
UNSPS
40171704
label
value
label
etim-class
label
Material connection 1
value
Cast iron
label
Material quality connection 1
value
ASTM A536 Grade 65-45-12
label
Material connection 2
value
Cast iron
label
Material quality connection 2
value
ASTM A536 Grade 65-45-12
label
Shape
value
Straight
label
Model
value
1-part
label
Bend angle
value
label
Reducing
value
Yes
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Groove
label
Connection 2
value
External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
label
With buffer stud
value
No
label
High tensile strength
value
Yes
label
Max. operating pressure at 20 °C
value
69bar
label
Max. operating pressure at 20 °C (imperial)
value
1000.76psi
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
LPCB quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
code
carbon footprint (A1-A3) cradle-to-gate
carbon footprint (A-C) embodied carbon
carbon footprint (A-D) cradle-to-cradle
data source
code
carbon footprint (A1-A3) cradle-to-gate
1.48kgCO2e
carbon footprint (A-C) embodied carbon
1.69kgCO2e
carbon footprint (A-D) cradle-to-cradle
1.09kgCO2e
data source
EPD
code
carbon footprint (A1-A3) cradle-to-gate
1.36kgCO2e
carbon footprint (A-C) embodied carbon
1.56kgCO2e
carbon footprint (A-D) cradle-to-cradle
1.01kgCO2e
data source
EPD
code
carbon footprint (A1-A3) cradle-to-gate
1.48kgCO2e
carbon footprint (A-C) embodied carbon
1.69kgCO2e
carbon footprint (A-D) cradle-to-cradle
1.09kgCO2e
data source
EPD
code
carbon footprint (A1-A3) cradle-to-gate
1.48kgCO2e
carbon footprint (A-C) embodied carbon
1.69kgCO2e
carbon footprint (A-D) cradle-to-cradle
1.09kgCO2e
data source
EPD
code
carbon footprint (A1-A3) cradle-to-gate
2.04kgCO2e
carbon footprint (A-C) embodied carbon
2.34kgCO2e
carbon footprint (A-D) cradle-to-cradle
1.51kgCO2e
data source
EPD
code
carbon footprint (A1-A3) cradle-to-gate
2.16kgCO2e
carbon footprint (A-C) embodied carbon
2.47kgCO2e
carbon footprint (A-D) cradle-to-cradle
1.59kgCO2e
data source
EPD
code
carbon footprint (A1-A3) cradle-to-gate
3.86kgCO2e
carbon footprint (A-C) embodied carbon
4.41kgCO2e
carbon footprint (A-D) cradle-to-cradle
2.85kgCO2e
data source
EPD
code
carbon footprint (A1-A3) cradle-to-gate
8.06kgCO2e
carbon footprint (A-C) embodied carbon
9.21kgCO2e
carbon footprint (A-D) cradle-to-cradle
5.95kgCO2e
data source
EPD
