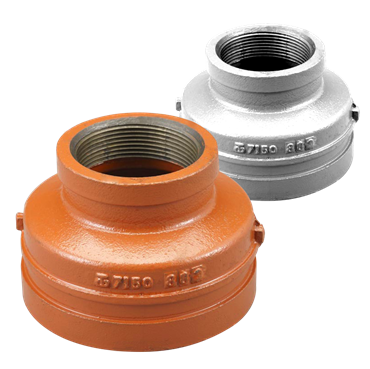

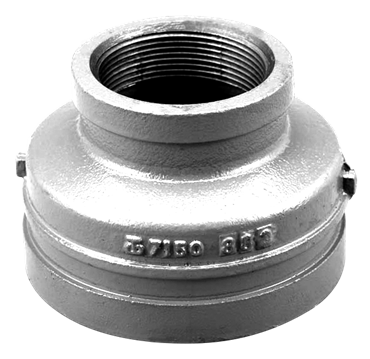

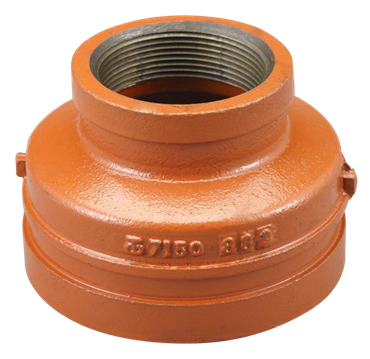

VSH Shurjoint reducing socket (groove x female thread)

group: 7150F

The Shurjoint Models 7150F & 7150M are designed for making direct reduction from a grooved system to female or male threaded system without the need for expensive swaged nipples.
read more
read less

applications

heating

heating

cooling

cooling

compressed air

compressed air

sprinkler

sprinkler

dry fire main

dry fire main

segments

fire protection

fire protection

commercial building

commercial building

industry

industry

approvals

FM

FM

UL

UL

ULc

ULc

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

item number

1150F2920013

size

76.1xRp2" orange

d1

76.1

DN1

DN65

l1

32

z1

32

d2

60.3

DN2

DN50

l2

32

z2

12

item number

1150F2920014

size

76.1xRp2" galvanized

d1

76.1

DN1

DN65

l1

32

z1

32

d2

60.3

DN2

DN50

l2

32

z2

12

item number

1150F3020014

size

88.9xRp2" galvanized

d1

88.9

DN1

DN80

l1

32

z1

d2

60.3

DN2

DN50

l2

32

z2

12

item number

1150F3025014

size

88.9xRp2 1/2" galvanized

d1

88.9

DN1

DN80

l1

32

z1

32

d2

73.0

DN2

DN65

l2

32

z2

9

technical drawing for product

characteristics

color

silver, orange

materials

cast iron (ASTM A536 65-45-12)

finishing

galvanised, varnished

manufacturer

Shurjoint

shape

reducer

connection type

groove (fitting), Rp - female thread cylindrical (BSPT)

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

brand

VSH

series

Shurjoint

product type

7150F

UNSPS

40171704

label

value

label

Material connection 1

value

Cast iron

label

Material connection 2

value

Cast iron

label

Shape

value

Straight

label

Model

value

1-part

label

Reducing

value

Yes

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Groove

label

Connection 2

value

Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)

label

High tensile strength

value

Yes

label

Length of connection 1

value

32mm

label

Length of connection 1 (imperial)

value

1.26"

label

Length of connection 2

value

32mm

label

Length of connection 2 (imperial)

value

1.26"

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

LPCB quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
