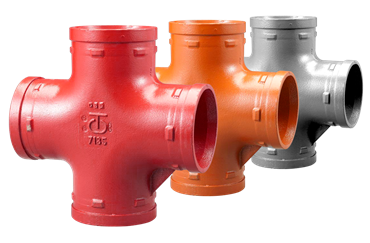

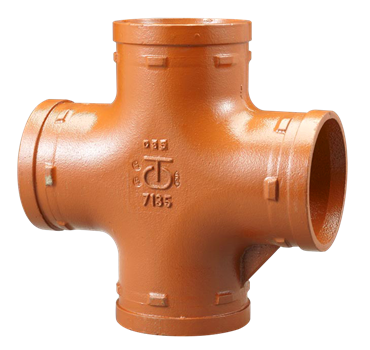

VSH Shurjoint cross (4 x groove)

group: 7135

Shurjoint grooved-end fittings are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.
read more
read less

applications

heating

heating

cooling

cooling

compressed air

compressed air

sprinkler

sprinkler

dry fire main

dry fire main

segments

fire protection

fire protection

commercial building

commercial building

industry

industry

approvals

CRN

CRN

FM

FM

UL

UL

ULc

ULc

item number

size

d1

DN1

l1

d2

DN2

l2

d3

DN3

l3

d4

DN4

l4

item number

171350012001

size

42.4 (DN32) orange

d1

42.4

DN1

DN32

l1

70

d2

42.4

DN2

DN32

l2

70

d3

42.4

DN3

DN32

l3

70

d4

42.4

DN4

DN32

l4

70

item number

171350015001

size

48.3 (DN40) orange

d1

48.3

DN1

DN40

l1

70

d2

48.3

DN2

DN40

l2

70

d3

48.3

DN3

DN40

l3

70

d4

48.3

DN4

DN40

l4

70

item number

171350020001

size

60.3 (DN50) orange

d1

60.3

DN1

DN50

l1

83

d2

60.3

DN2

DN50

l2

83

d3

60.3

DN3

DN50

l3

83

d4

60.3

DN4

DN50

l4

83

item number

171350029001

size

76.1 (DN 65) orange

d1

76.1

DN1

DN65

l1

95

d2

76.1

DN2

DN65

l2

95

d3

76.1

DN3

DN65

l3

95

d4

76.1

DN4

DN65

l4

95

item number

171350030001

size

88.9 (DN80) orange

d1

88.9

DN1

DN80

l1

108

d2

88.9

DN2

DN80

l2

108

d3

88.9

DN3

DN80

l3

108

d4

88.9

DN4

DN80

l4

108

item number

171350045001

size

114.3 (DN100) orange

d1

114.3

DN1

DN100

l1

127

d2

114.3

DN2

DN100

l2

127

d3

114.3

DN3

DN100

l3

127

d4

114.3

DN4

DN100

l4

127

item number

171350052001

size

139.7 (DN 125) orange

d1

139.7

DN1

DN125

l1

140

d2

139.7

DN2

DN125

l2

140

d3

139.7

DN3

DN125

l3

140

d4

139.7

DN4

DN125

l4

140

item number

171350062001

size

165.1 (DN 150) orange

d1

165.1

DN1

DN150

l1

165

d2

165.1

DN2

DN150

l2

165

d3

165.1

DN3

DN150

l3

165

d4

165.1

DN4

DN150

l4

165

item number

171350085001

size

219.1 (DN200) orange

d1

219.1

DN1

DN200

l1

197

d2

219.1

DN2

DN200

l2

197

d3

219.1

DN3

DN200

l3

197

d4

219.1

DN4

DN200

l4

197

technical drawing for product

characteristics

color

orange

materials

cast iron (ASTM A536 65-45-12)

finishing

varnished

manufacturer

Shurjoint

shape

Cross

connection type

groove (fitting)

general

product group

fittings (demountable)

ETIM class

EC003026 Fitting with 4 connections

brand

VSH

series

Shurjoint

product type

7135

UNSPS

40174604

label

value

label

Material

value

Cast iron

label

Surface protection

value

Coated

label

Model

value

Cross piece 90°

label

Reducing

value

No

label

Multi-part

value

No

label

System specific

value

No

label

Connection 1

value

Groove

label

Connection 2

value

Groove

label

Connection 3

value

Groove

label

Connection 4

value

Groove

label

Main colour fitting

value

Orange

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

With buffer stud

value

No

label

Capped

value

No

label

LPCB quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
