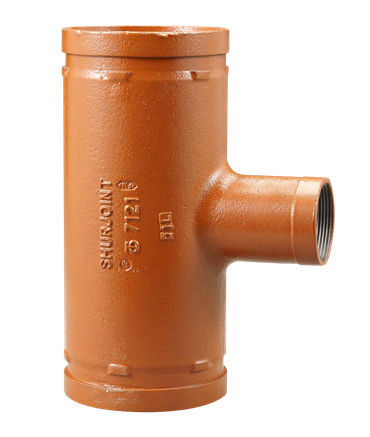

VSH Shurjoint reducing tee (groove x female thread x groove)

group: 7121F

Shurjoint grooved-end reducing tees are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.
read more
read less

applications

heating

heating

cooling

cooling

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

d3

DN3

l3

z3

item number

1121F2910014

size

76.1xRc1 galvanized

d1

76.1

DN1

DN65

l1

95

z1

95

d2

33.4

DN2

DN25

l2

95

z2

80

d3

76.1

DN3

DN65

l3

95

z3

95

item number

1121F2920014

size

76.1 xRc2 galvanized

d1

76.1

DN1

DN65

l1

95

z1

95

d2

60.3

DN2

DN50

l2

95

z2

d3

76.1

DN3

DN65

l3

95

z3

95

item number

1121F3010014

size

88.9 xRc1 galvanized

d1

88.9

DN1

DN80

l1

108

z1

108

d2

33.4

DN2

DN25

l2

108

z2

93

d3

88.9

DN3

DN80

l3

108

z3

108

item number

1121F3020014

size

88.9 xRc2 galvanized

d1

88.9

DN1

DN80

l1

108

z1

108

d2

60.3

DN2

DN50

l2

108

z2

88

d3

88.9

DN3

DN80

l3

108

z3

108

item number

1121F4520014

size

114.3 xRc2 galvanized

d1

114.3

DN1

DN100

l1

127

z1

127

d2

60.3

DN2

DN50

l2

127

z2

107

d3

114.3

DN3

DN100

l3

127

z3

127

technical drawing for product

characteristics

color

silver

materials

cast iron (ASTM A536 65-45-12)

finishing

galvanised

manufacturer

Shurjoint

shape

T-piece (90º)

connection type

groove (fitting), Rc - female thread gas conical (BSPT)

general

product group

fittings (demountable)

ETIM class

EC003025 Fitting with 3 connections

brand

VSH

series

Shurjoint

product type

7121F

UNSPS

40174604

label

value

label

Material connection 1

value

Cast iron

label

Material quality connection 1

value

ASTM A536 Grade 65-45-12

label

Surface protection connection 1

value

Galvanic/electrolytic zinc plated

label

Material connection 2

value

Cast iron

label

Material quality connection 2

value

ASTM A536 Grade 65-45-12

label

Surface protection connection 2

value

Galvanic/electrolytic zinc plated

label

Material connection 3

value

Cast iron

label

Material quality connection 3

value

ASTM A536 Grade 65-45-12

label

Surface protection connection 3

value

Galvanic/electrolytic zinc plated

label

Model

value

T-piece

label

Angle

value

90°

label

Reducing

value

No

label

Multi-part

value

No

label

System specific

value

No

label

Connection 1

value

Groove

label

Connection 2

value

Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)

label

Connection 3

value

Groove

label

Main colour fitting

value

Grey

label

High tensile strength

value

Yes

label

With sealing rings/gaskets

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

With buffer stud

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
