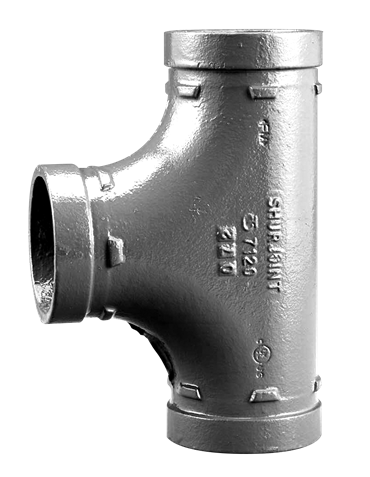

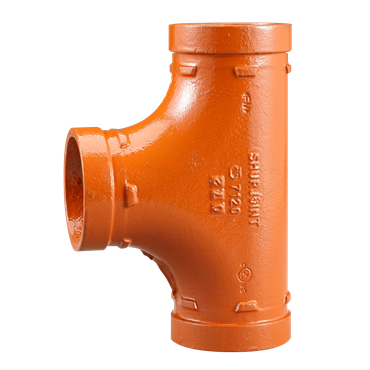

VSH Shurjoint tee (3 x groove)

group: 7120

Shurjoint grooved-end fittings are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.
read more
read less

applications

heating

heating

cooling

cooling

compressed air

compressed air

sprinkler

sprinkler

dry fire main

dry fire main

segments

fire protection

fire protection

commercial building

commercial building

industry

industry

approvals

CRN

CRN

FM

FM

LPCB

LPCB

TSU

TSU

UL

UL

ULc

ULc

VdS

VdS

item number

size

d1

DN1

l1

d2

DN2

l2

d3

DN3

l3

item number

171200010001

size

33.4 (DN25) orange

d1

33.7

DN1

DN25

l1

57

d2

33.7

DN2

DN25

l2

57

d3

33.7

DN3

DN25

l3

57

item number

171200010003

size

33.4 (DN25) galvanized

d1

33.7

DN1

DN25

l1

57

d2

33.7

DN2

DN25

l2

57

d3

33.7

DN3

DN25

l3

57

item number

171200012001

size

42.4 (DN32) orange

d1

42.4

DN1

DN32

l1

70

d2

42.4

DN2

DN32

l2

70

d3

42.4

DN3

DN32

l3

70

item number

171200012003

size

42.4 (DN32) galvanized

d1

42.4

DN1

DN32

l1

70

d2

42.4

DN2

DN32

l2

70

d3

42.4

DN3

DN32

l3

70

item number

171200015001

size

48.3 (DN40) orange

d1

48.3

DN1

DN40

l1

70

d2

48.3

DN2

DN40

l2

70

d3

48.3

DN3

DN40

l3

70

item number

171200015003

size

48.3 (DN40) galvanized

d1

48.3

DN1

DN40

l1

70

d2

48.3

DN2

DN40

l2

70

d3

48.3

DN3

DN40

l3

70

item number

171200020001

size

60.3 (DN50) orange

d1

60.3

DN1

DN50

l1

83

d2

60.3

DN2

DN50

l2

83

d3

60.3

DN3

DN50

l3

83

item number

171200020003

size

60.3 (DN50) galvanized

d1

60.3

DN1

DN50

l1

83

d2

60.3

DN2

DN50

l2

83

d3

60.3

DN3

DN50

l3

83

item number

171200029001

size

76.1 (DN65) orange

d1

76.1

DN1

DN65

l1

95

d2

76.1

DN2

DN65

l2

95

d3

76.1

DN3

DN65

l3

95

item number

171200029003

size

76.1 (DN65) galvanized

d1

76.1

DN1

DN65

l1

95

d2

76.1

DN2

DN65

l2

95

d3

76.1

DN3

DN65

l3

95

item number

171200030001

size

88.9 (DN80) orange

d1

88.9

DN1

DN80

l1

108

d2

88.9

DN2

DN80

l2

108

d3

88.9

DN3

DN80

l3

108

item number

171200030003

size

88.9 (DN80) galvanized

d1

88.9

DN1

DN80

l1

108

d2

88.9

DN2

DN80

l2

108

d3

88.9

DN3

DN80

l3

108

item number

171200045001

size

114.3 (DN100) orange

d1

114.3

DN1

DN100

l1

127

d2

114.3

DN2

DN100

l2

127

d3

114.3

DN3

DN100

l3

127

item number

171200045003

size

114.3 (DN100) galvanized

d1

114.3

DN1

DN100

l1

127

d2

114.3

DN2

DN100

l2

127

d3

114.3

DN3

DN100

l3

127

item number

171200052001

size

139.7 (DN125) orange

d1

139.7

DN1

DN125

l1

140

d2

139.7

DN2

DN125

l2

140

d3

139.7

DN3

DN125

l3

140

item number

171200052003

size

139.7 (DN125) galvanized

d1

139.7

DN1

DN125

l1

140

d2

139.7

DN2

DN125

l2

140

d3

139.7

DN3

DN125

l3

140

item number

171200062001

size

165.1 (DN150) orange

d1

165.1

DN1

DN150

l1

165

d2

165.1

DN2

DN150

l2

165

d3

165.1

DN3

DN150

l3

165

item number

171200062003

size

165.1 (DN150) galvanized

d1

165.1

DN1

DN150

l1

165

d2

165.1

DN2

DN150

l2

165

d3

165.1

DN3

DN150

l3

165

item number

171200085001

size

219.1 (DN200) orange

d1

219.1

DN1

DN200

l1

197

d2

219.1

DN2

DN200

l2

197

d3

219.1

DN3

DN200

l3

197

item number

171200085003

size

219.1 (DN200) galvanized

d1

219.1

DN1

DN200

l1

197

d2

219.1

DN2

DN200

l2

197

d3

219.1

DN3

DN200

l3

197

item number

1712000A1001

size

273 (DN250) orange

d1

273.0

DN1

DN250

l1

229

d2

273.0

DN2

DN250

l2

229

d3

273.0

DN3

DN250

l3

229

item number

1712000A1003

size

273 (DN250) galvanized

d1

273.0

DN1

DN250

l1

229

d2

273.0

DN2

DN250

l2

229

d3

273.0

DN3

DN250

l3

229

item number

1712000A3001

size

323.9 (DN300) orange

d1

323.9

DN1

DN300

l1

254

d2

323.9

DN2

DN300

l2

254

d3

323.9

DN3

DN300

l3

254

item number

1712000A3003

size

323.9 (DN300) galvanized

d1

323.9

DN1

DN300

l1

254

d2

323.9

DN2

DN300

l2

254

d3

323.9

DN3

DN300

l3

254

technical drawing for product

characteristics

color

silver, orange

materials

cast iron (ASTM A536 65-45-12)

finishing

galvanised, varnished

manufacturer

Shurjoint

shape

T-piece (90º)

connection type

groove (fitting)

general

product group

fittings (demountable)

ETIM class

EC003025 Fitting with 3 connections

HS code

73071910

brand

VSH

series

Shurjoint

product type

7120

UNSPS

40174604

label

value

label

Material connection 1

value

Cast iron

label

Material quality connection 1

value

ASTM A536 Grade 65-45-12

label

Material connection 2

value

Cast iron

label

Material quality connection 2

value

ASTM A536 Grade 65-45-12

label

Material connection 3

value

Cast iron

label

Material quality connection 3

value

ASTM A536 Grade 65-45-12

label

Model

value

T-piece

label

Angle

value

90°

label

Reducing

value

No

label

Multi-part

value

No

label

System specific

value

No

label

Connection 1

value

Groove

label

Connection 2

value

Groove

label

Connection 3

value

Groove

label

High tensile strength

value

Yes

label

With sealing rings/gaskets

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

With thermal insulation

value

No

label

With buffer stud

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
