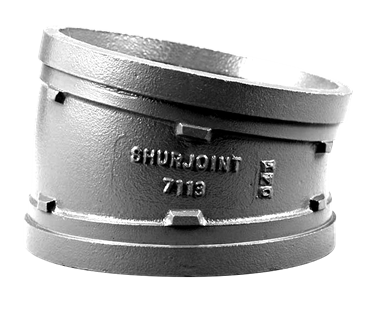

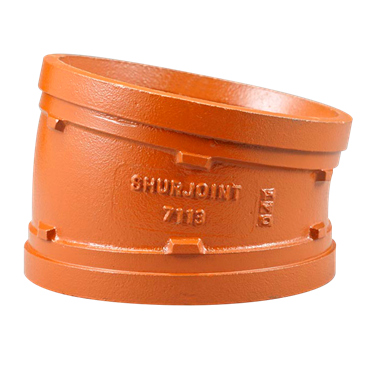

VSH Shurjoint 11.25° elbow (2 x groove)

group: 7113

Shurjoint grooved-end elbows are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.
read more
read less

applications

heating

heating

cooling

cooling

compressed air

compressed air

sprinkler

sprinkler

dry fire main

dry fire main

segments

fire protection

fire protection

commercial building

commercial building

industry

industry

approvals

CRN

CRN

FM

FM

UL

UL

ULc

ULc

item number

size

d1

DN1

l1

z1

es1

d2

DN2

l2

z2

es2

radius

angle

item number

171130012001

size

42.4 (DN32) orange

d1

42.4

DN1

DN32

l1

35

z1

35

es1

23

d2

42.4

DN2

DN32

l2

35

z2

35

es2

23

radius

30

angle

11.25

item number

171130012003

size

42.4 (DN32) galvanized

d1

42.4

DN1

DN32

l1

35

z1

35

es1

23

d2

42.4

DN2

DN32

l2

35

z2

35

es2

23

radius

30

angle

11.25

item number

171130015001

size

48.3 (DN40) orange

d1

48.3

DN1

DN40

l1

35

z1

35

es1

23

d2

48.3

DN2

DN40

l2

35

z2

35

es2

23

radius

30

angle

11.25

item number

171130015003

size

48.3 (DN40) galvanized

d1

48.3

DN1

DN40

l1

35

z1

35

es1

23

d2

48.3

DN2

DN40

l2

35

z2

35

es2

23

radius

30

angle

11.25

item number

171130020001

size

60.3 (DN50) orange

d1

60.3

DN1

DN50

l1

35

z1

35

es1

25

d2

60.3

DN2

DN50

l2

35

z2

35

es2

25

radius

50

angle

11.25

item number

171130020003

size

60.3 (DN50) galvanized

d1

60.3

DN1

DN50

l1

35

z1

35

es1

25

d2

60.3

DN2

DN50

l2

35

z2

35

es2

25

radius

50

angle

11.25

item number

171130029001

size

76.1 (DN65) orange

d1

76.1

DN1

DN65

l1

38

z1

38

es1

25

d2

76.1

DN2

DN65

l2

38

z2

38

es2

25

radius

50

angle

11.25

item number

171130029003

size

76.1 (DN65) galvanized

d1

76.1

DN1

DN65

l1

38

z1

38

es1

25

d2

76.1

DN2

DN65

l2

38

z2

38

es2

25

radius

50

angle

11.25

item number

171130030001

size

88.9 (DN80) orange

d1

88.9

DN1

DN80

l1

38

z1

38

es1

25

d2

88.9

DN2

DN80

l2

38

z2

38

es2

25

radius

84

angle

11.25

item number

171130030003

size

88.9 (DN80) galvanized

d1

88.9

DN1

DN80

l1

38

z1

38

es1

25

d2

88.9

DN2

DN80

l2

38

z2

38

es2

25

radius

84

angle

11.25

item number

171130045001

size

114.3 (DN100) orange

d1

114.3

DN1

DN100

l1

45

z1

45

es1

25

d2

114.3

DN2

DN100

l2

45

z2

45

es2

25

radius

95

angle

11.25

item number

171130045003

size

114.3 (DN100) galvanized

d1

114.3

DN1

DN100

l1

45

z1

45

es1

25

d2

114.3

DN2

DN100

l2

45

z2

45

es2

25

radius

95

angle

11.25

item number

171130052001

size

139.7 (DN125) orange

d1

139.7

DN1

DN125

l1

51

z1

51

es1

25

d2

139.7

DN2

DN125

l2

51

z2

51

es2

25

radius

160

angle

11.25

item number

171130052003

size

139.7 (DN125) galvanized

d1

139.7

DN1

DN125

l1

51

z1

51

es1

25

d2

139.7

DN2

DN125

l2

51

z2

51

es2

25

radius

160

angle

11.25

item number

171130062001

size

165.1 (DN150) orange

d1

165.1

DN1

DN150

l1

51

z1

51

es1

25

d2

165.1

DN2

DN150

l2

51

z2

51

es2

25

radius

129

angle

11.25

item number

171130062003

size

165.1 (DN150) galvanized

d1

165.1

DN1

DN150

l1

51

z1

51

es1

25

d2

165.1

DN2

DN150

l2

51

z2

51

es2

25

radius

129

angle

11.25

item number

171130085001

size

219.1 (DN200) orange

d1

219.1

DN1

DN200

l1

51

z1

51

es1

31

d2

219.1

DN2

DN200

l2

51

z2

51

es2

31

radius

147

angle

11.25

item number

171130085003

size

219.1 (DN200) galvanized

d1

219.1

DN1

DN200

l1

51

z1

51

es1

31

d2

219.1

DN2

DN200

l2

51

z2

51

es2

31

radius

147

angle

11.25

item number

1711300A1001

size

273 (DN250) orange

d1

273.0

DN1

DN250

l1

54

z1

54

es1

31

d2

273.0

DN2

DN250

l2

54

z2

54

es2

31

radius

136

angle

11.25

technical drawing for product

characteristics

color

silver, orange

materials

cast iron (ASTM A536 65-45-12)

finishing

galvanised, varnished

manufacturer

Shurjoint

shape

Elbow (11,25º)

connection type

groove (fitting)

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

brand

VSH

series

Shurjoint

product type

7113

UNSPS

40172803

label

value

label

Material connection 1

value

Cast iron

label

Material connection 2

value

Cast iron

label

Shape

value

Bend

label

Bend angle

value

11.25°

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Groove

label

Connection 2

value

Groove

label

With buffer stud

value

No

label

High tensile strength

value

Yes

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

LPCB quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
